780 Handheld Test Instrument Page 40
5.2.4 Procedures for Comparing EDIDs
Use the following procedures to compare two EDIDs.
1. Follow the procedures above for Selecting a Signal Type and Resolution to enable the HDMI output.

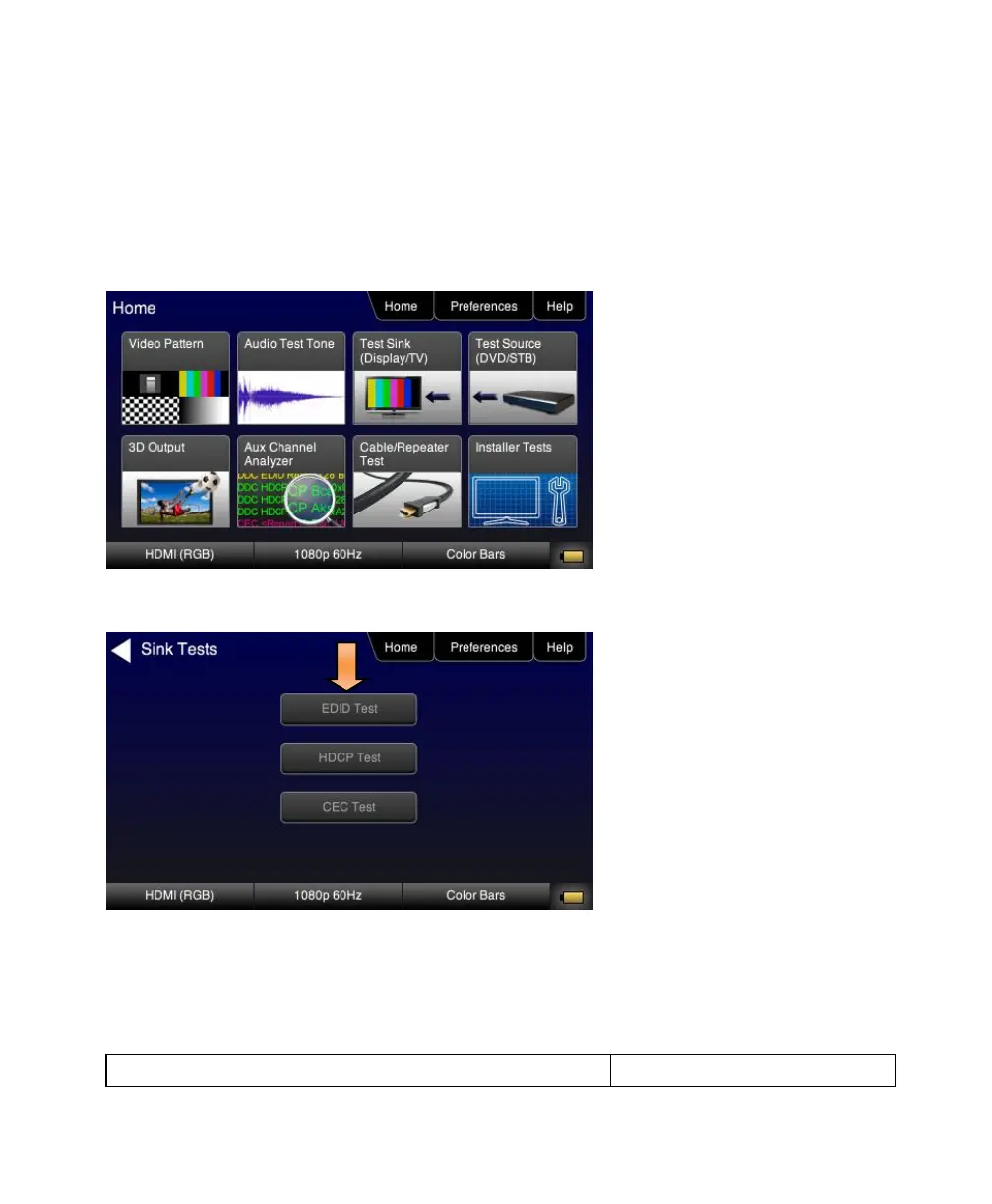

2. Touch select Test Sink (Display/TV) from the top level menu shown below.
3. Touch select EDID Test from the Sink Tests menu shown below.
4. Touch select Load from the EDID Tests menu. The following screen results.
