780 Handheld Test Instrument Page 87
8.2 HDMI Frame Compare Test
The cable test and repeater test can be used when the source and sink ends are collocated, in other words can be
connected to the 780 Tx and Rx ports. For a cable or distribution system that is installed and where the source and sink
ends cannot be connected to the 780, you can use the Frame Compare feature. The Frame Compare feature captures a
reference frame and then compares a series of captured frames pixel by pixel to the reference frame.

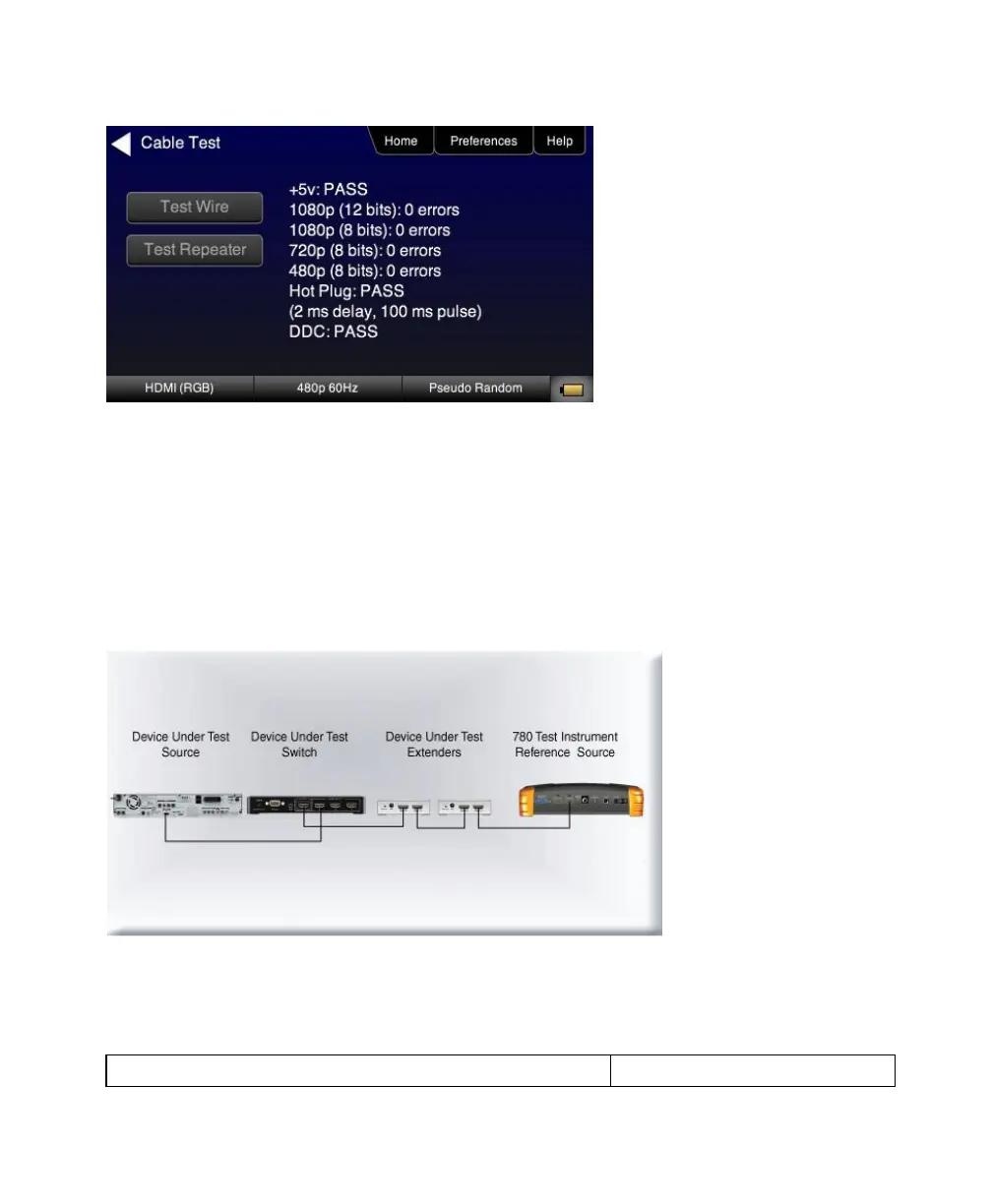

8.2.1 Configuration for Running an HDMI Frame Compare Test
This subsection shows a typical configuration when performing an HDMI Frame Compare test for an HDMI cable or
network comprised of repeaters, splitters, extenders, switches, etc.
8.2.2 Procedures for Running the Frame Compare Test
This subsection provides procedures for performing an HDMI Frame Compare test on an HDMI network comprised of
repeaters, splitters, extenders, switches, etc.
