Quantum DXi-Series Command Line Interface (CLI) Guide
6-67081-05 Rev B
April 2012
84 Network CLI Commands
The following syscli sequences can be used to configure a similar setup.
To display the existing configuration:
syscli --list interface
First, delete the default bond configuration with all customer ports connected
together:
syscli --del netcfg --devname bond0
Then configure bond0 and use this bond IPADDR, if applicable configure the
GATEWAY1:
syscli --add netcfg --devname bond0 --slaves eth0, eth1
--segments DATA,REP --ipaddr IPADDR1 --netmask NETMASK1
--gateway GATEWAY1
Then, configure bond1 for the other subnet. If applicable, configure the
GATEWAY2:
syscli --add netcfg --devname bond1 --slaves eth2, eth3 --ipaddr IPADDR2
--netmask NETMASK2 --gateway GA
TEWAY2 --segments DATA,MGMT
DXi 6540 With Only Two Independent Ports Being Used
There are only two independent customer ports that are configured. They have
to be connected to two independent non-aggregated ports on the switch. The
IP subnet dependent gateways, if applicable, can be configured.

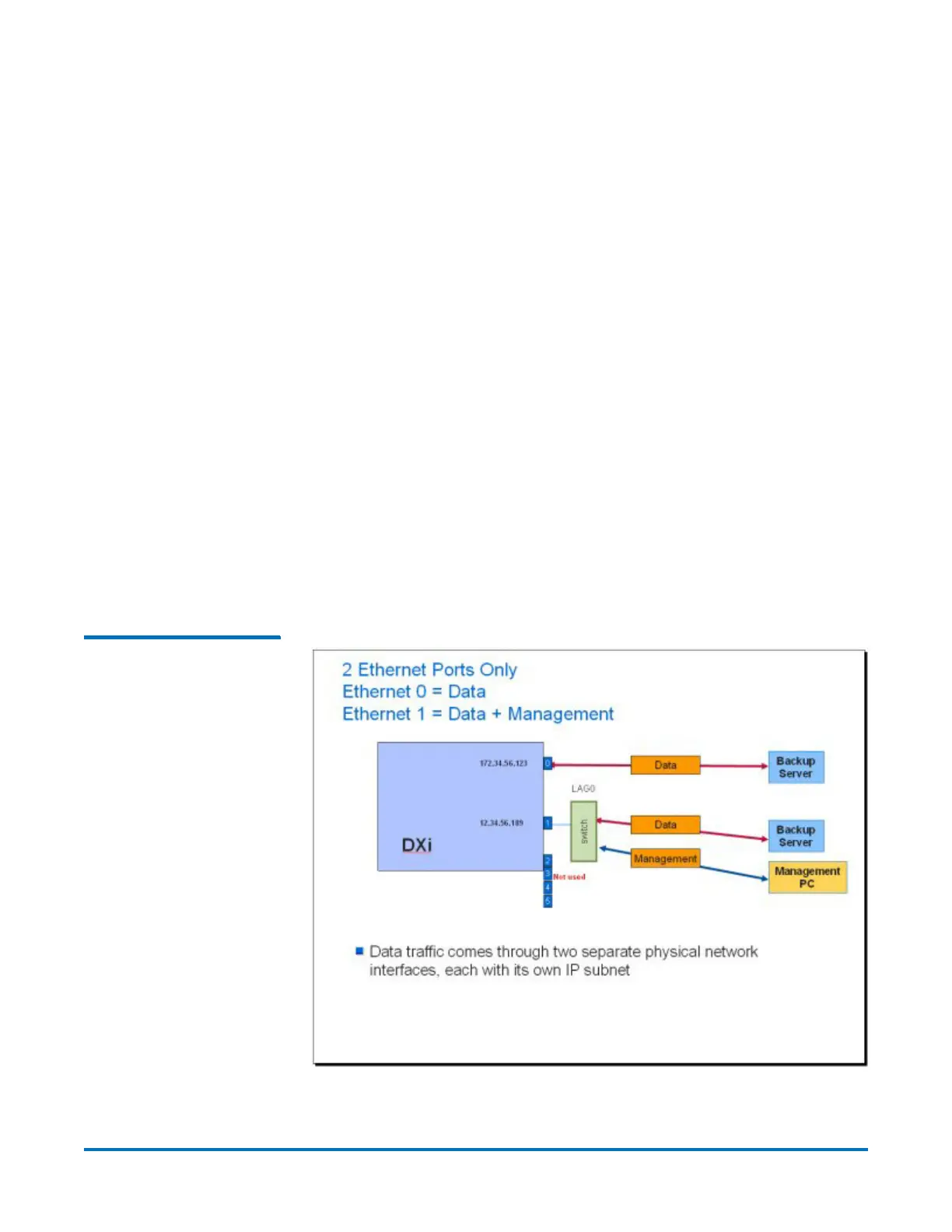

Figure 2 Netcfg Example – Two
Ethernet Ports Only
