Installing the 1U Rackmount Enclosure in a Rack 15
LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8
Installing the 1U Rackmount Enclosure in a Rack
The rack rails supplied with the 1U rackmount enclosure can be used to install the unit in
racks that have round, square, or threaded holes in the vertical mounting bars. The rails
are identical and may be mounted on either the left or the right side.

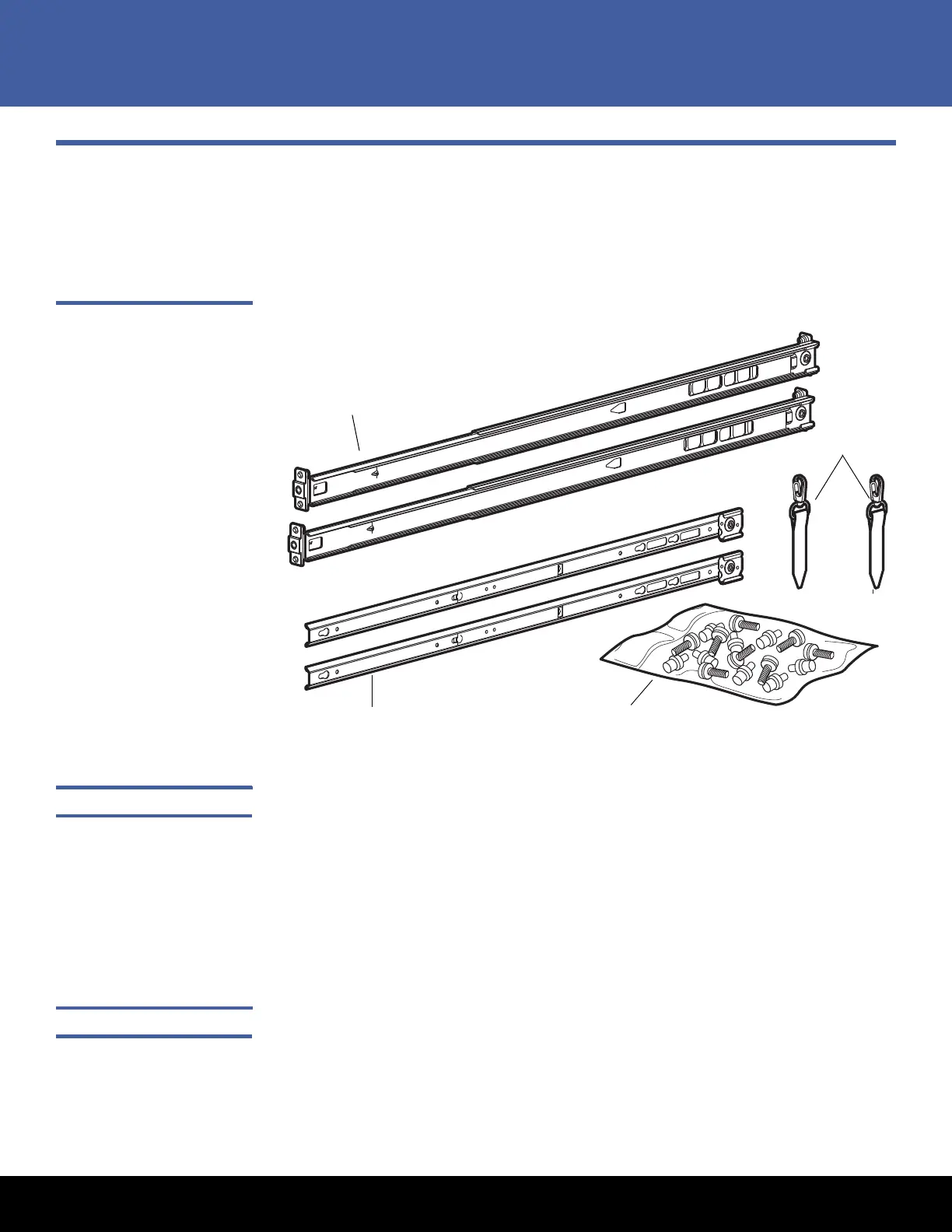

Figure 20 Rail Mounting Kit
Components
Tools Required If you are installing the tape enclosure in a rack with unmarked holes in the vertical
mounting bars the following items will make the rack installation easier:
•Pencil
• Tape measure
If you are installing the tape enclosure in a rack with threaded holes in the vertical
mounting bars you will need the following tool:
• 3/16 in. (5mm) flat-blade screwdriver
Installation Procedure When installing the enclosure in a rack:
• Start at the bottom of the rack, or at the top of a previously mounted component,
and work upward.
3
Outer rack rails
Inner rack rails
Cable support clips
Fasteners
