6 Installing a Second Tape Drive or Replacing a Tape Drive
LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

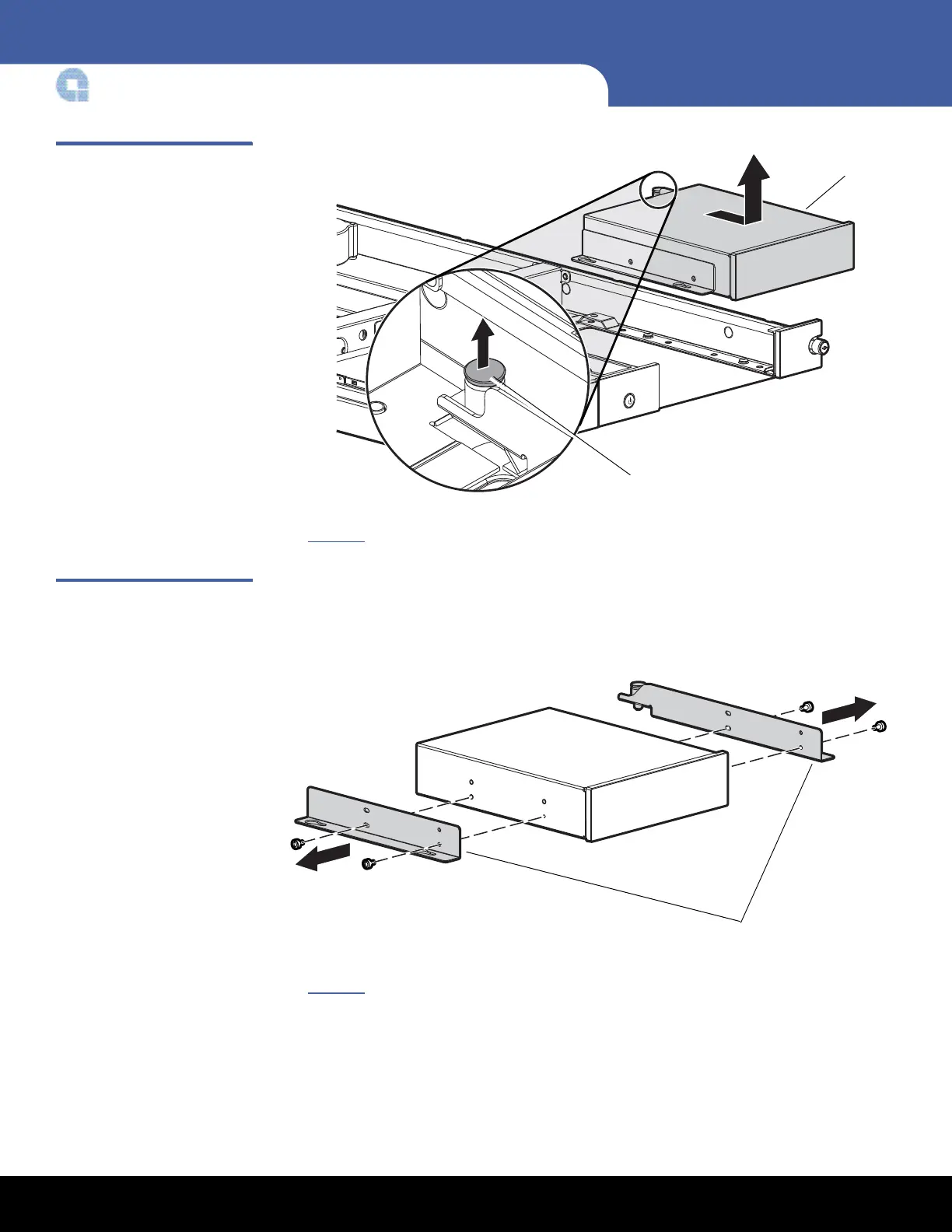

Figure 6 Removing the Drive
Blank
2 Remove the screws securing the mounting brackets to the tape drive blank (see
Figure 7
).
Figure 7 Removing the
Mounting Brackets
3 Secure the mounting brackets with two screws on each side of the tape drive (see
Figure 8
).
2
Spring-loaded button
Drive blank
Mounting bracket s
