12 Installing a Second Tape Drive or Replacing a Tape Drive
LTO-3, LTO-4, LTO-5, LTO-6, LTO-7 and LTO-8

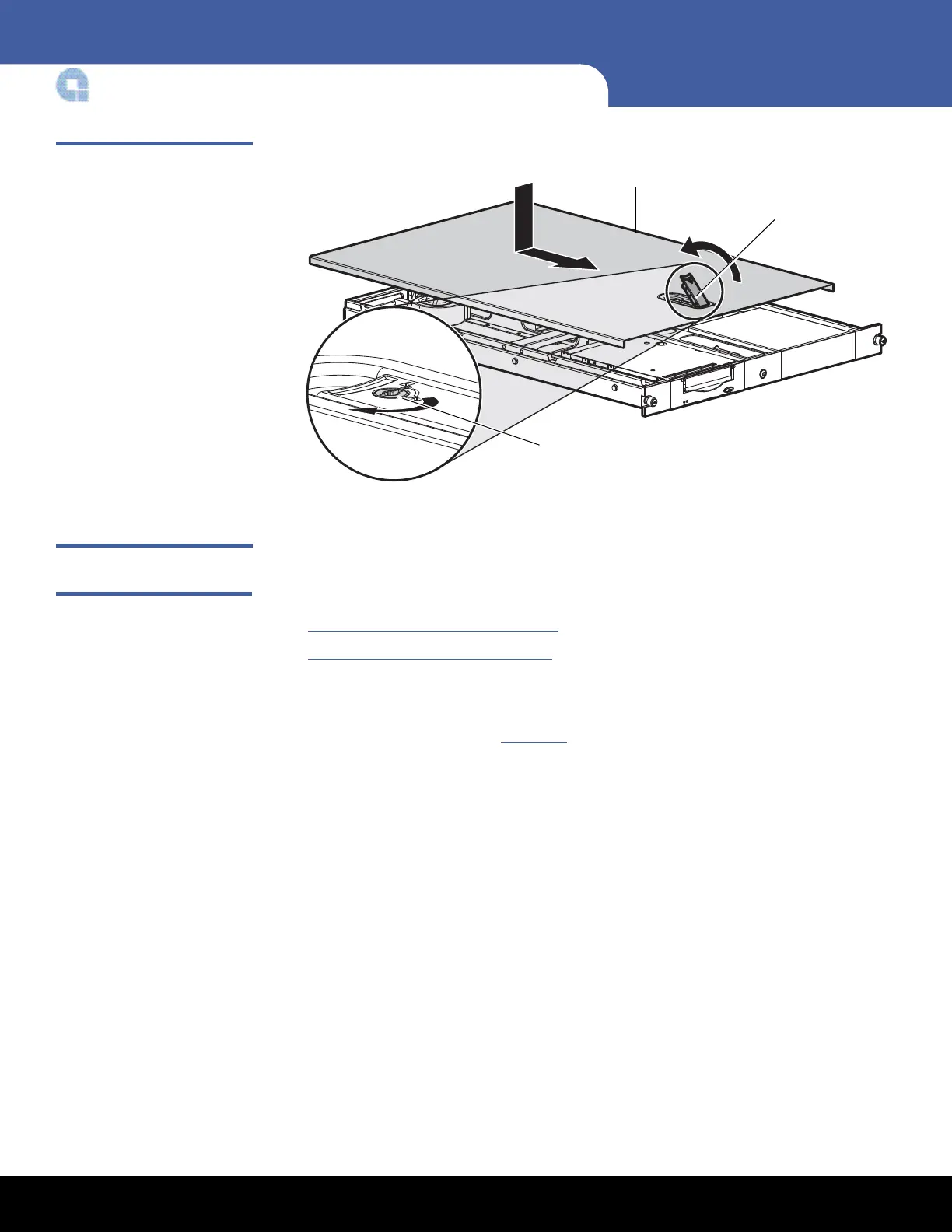

Figure 17 Re-installing the Top
Access Panel
SCSI Cable
Configurations
The 1U rackmount enclosure supports the operation of two tape drives on either one or
two SCSI buses. Two internal 2-port SCSI cables are installed in the enclosure and ready
for tape drive connections depending on your configuration.
• Connecting Two Drives per SCSI Bus
• Connecting One Drive per SCSI Bus
Connecting Two Drives per SCSI Bus
Use the configuration shown in Figure 18 when connecting both tape drives to the same
SCSI bus.
