7
The Q6 Edge 2.0/2.0x/3 Power Chair
Your power chair has two main assemblies: the seat assembly
and the power base assembly. Typically, the seat assembly
includes the armrests, seatback, and seat base. The power
base assembly includes two motor/brake assemblies, two
drive wheels, four caster wheels, two batteries, and wiring
harnesses. See Q6 Edge 2.0/2.0x/3 (page 4) and figure 1.
The spring tension on your power chair was factory set to
meet the needs of the demographic majority of users. Do
not adjust the tension of any spring on your power chair.
Electrical Components
The electrical components consist of the controller assembly,
the batteries, and the motors. The batteries, motors, and
controller power module (if equipped) are located on the
power base assembly. The controller is located on the seat
assembly. Connectivity between the controller and the
motors, batteries, and the battery charger is provided by one
or more wiring harnesses. See figure 1.
Controller Harness Connector: The controller harness
connector is where the controller plugs into the power base.
Each controller uses a different type of harness. Regardless of
which type of controller is used, the harness must be secured
to the seat assembly and not allowed to drag on the floor.
Motor Connectors: This is where the controller connects to
the motors.
Battery Connector: This is where the controller connects to
the batteries.
Controller Power Module: This enables the controller to
communicate with the batteries and the motors.
Main Circuit Breaker (located on the rear main frame): The
main circuit breaker is a safety feature built into your power chair.
When the batteries and the motors are heavily strained (e.g.,
from excessive loads), the main circuit breaker trips to prevent
damage to the motors and the electronics. If the circuit trips,
allow your power chair to “rest” for approximately one minute.
The circuit breaker will reset itself. Turn on the controller, and
continue normal operation. If the main circuit breaker continues
to trip repeatedly, contact your Quantum Rehab Provider.
Manual Freewheel Levers
For your convenience, your power chair is equipped with a
manual freewheel lever mounted on each motor. The levers
allow you to disengage the drive motors and maneuver the
chair manually.
To Motor Connector
Controller Power Module
To Battery Connectors
Main Circuit Breaker
Controller Connector
Fender Light
Connector
(Optional)
Quick
Release
Battery
Connectors
Suspension
Spring

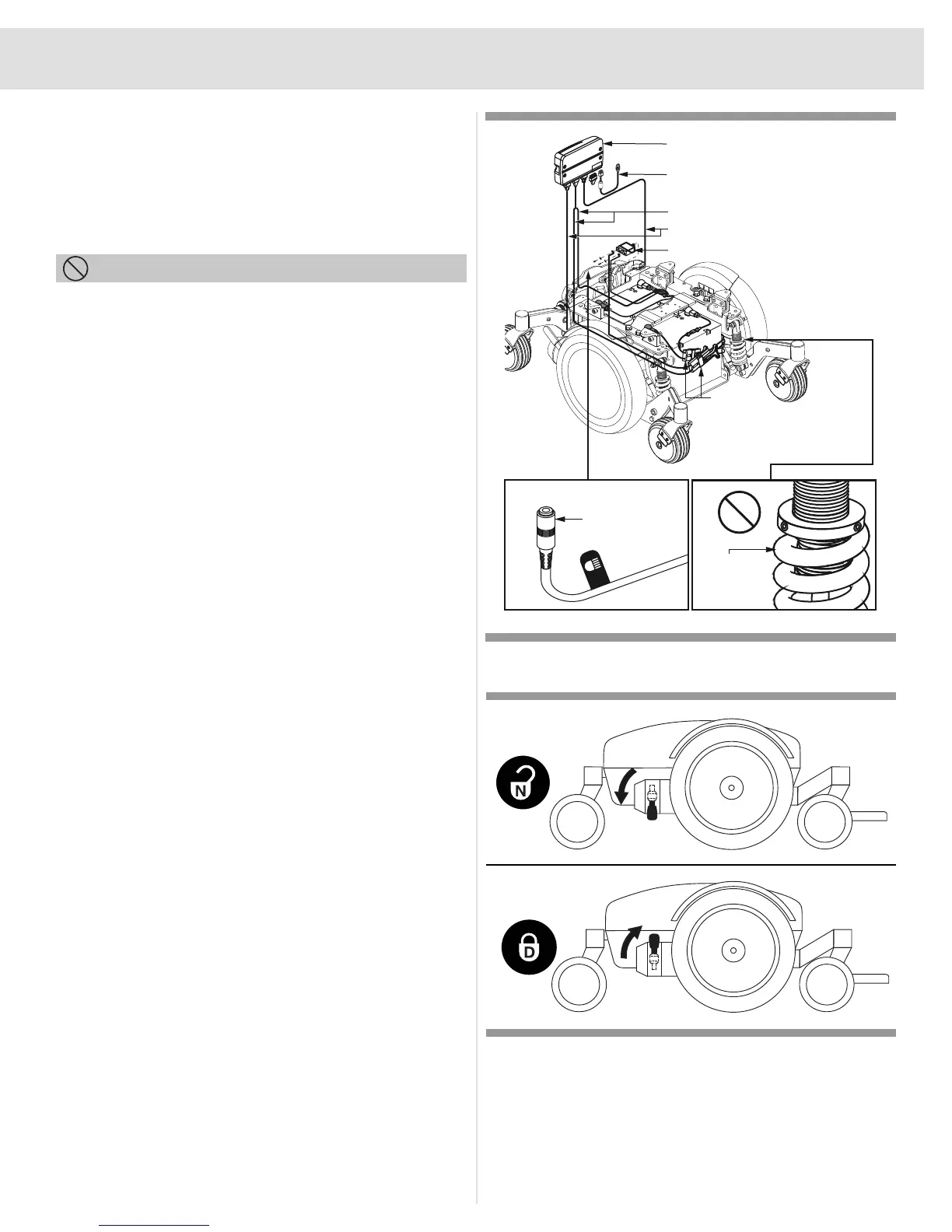

Figure 1. Electrical Components
YOUR POWER CHAIR
Figure 2. Manual Freewheel Lever Operation
DRIVE MODE
FREEWHEEL MODE
PROHIBITED!
To Next Page
