Quantum Q6 Edge 3 STRETTO - Battery Set Configuration; Battery Installation

21
CARE AND MAINTENANCE
Battery Set Configuration:
+ = Positive (Red) Terminal Post
- = Negative (Black) Terminal Post
Connect Red wire to Red Positive (+) Terminal Posts.
Connect Black wire to Black Negative (-) Terminal Posts.

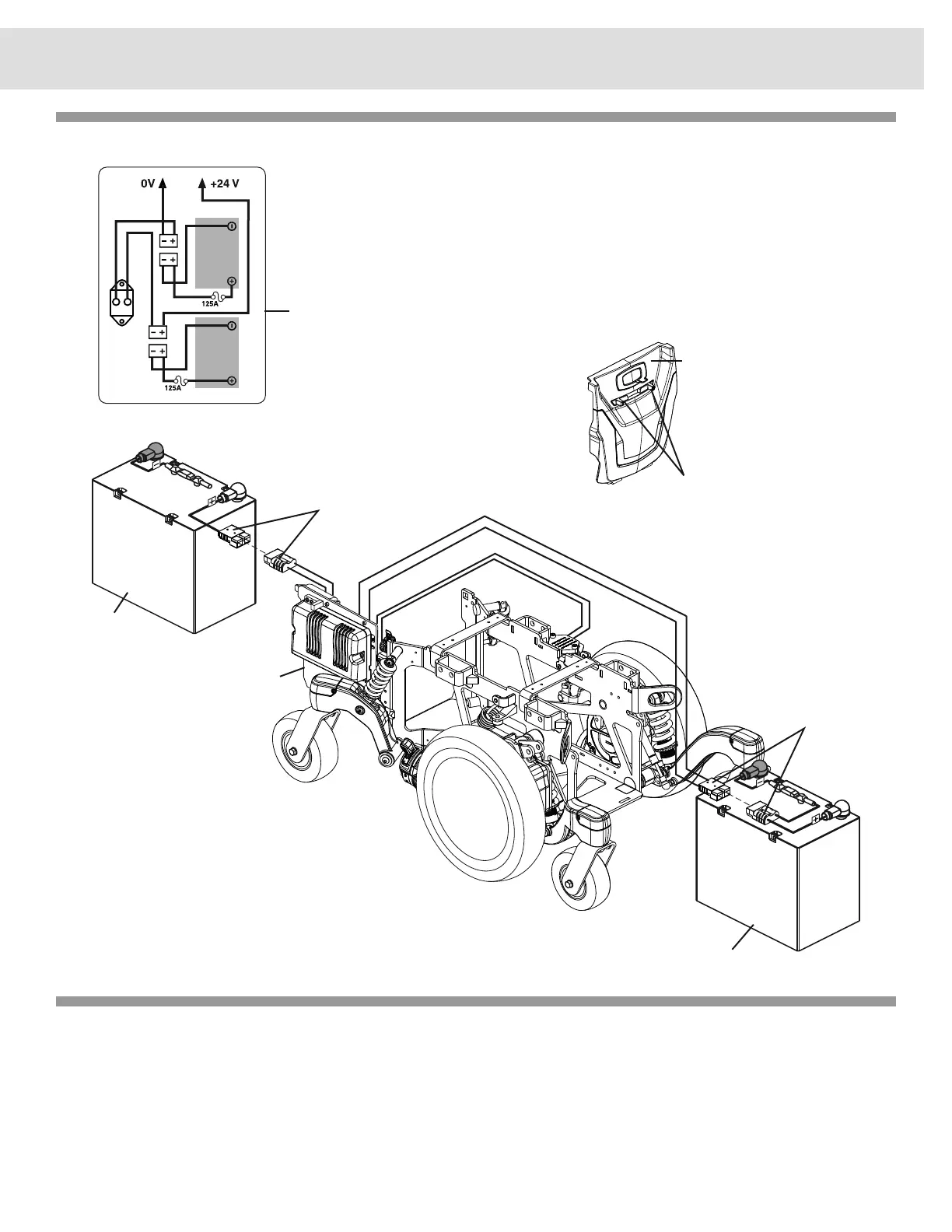

Figure 14. Battery Installation
Battery Wiring Diagram Label
Front Cover
Front Battery
Rear Battery
Quick Release
Battery Connectors
Quick Release
Battery Connectors
Rear Cover
Release Handles
