Chapter 3 Operation
16
Models QT-740 & QT-750 - Operator’s Manual
.
LOWERING THE TABLETOP
1. It is recommended that the tabletop be centered before lowering
it (refer to Tabletop Float Motion operation in preceding para-
graph).
2. Press the DOWN foot pedal (see Figure 5) to lower the tabletop
to the desired height.
3. Transfer patient onto tabletop.
4. Ensure patient is positioned with his or her hands situated along
the side of their body, or with the hands grasping the patient
handles (see Figure 3). Be sure patient’s hands remain above
the tabletop.
Note: As it is lowered, the speed at which the
tabletop travels will gradually be reduced until
the tabletop reaches the lowest point of travel for
optimal patient comfort.
RAISING THE TABLETOP
1. Press the UP foot pedal (see Figure 5) to raise the tabletop to the
desired height.
2. Proceed with examination.
EMERGENCY
STOP SWITCH
FOOT PEDAL/
FLOAT PUSH
BUTTON DISABLE
SWITCH

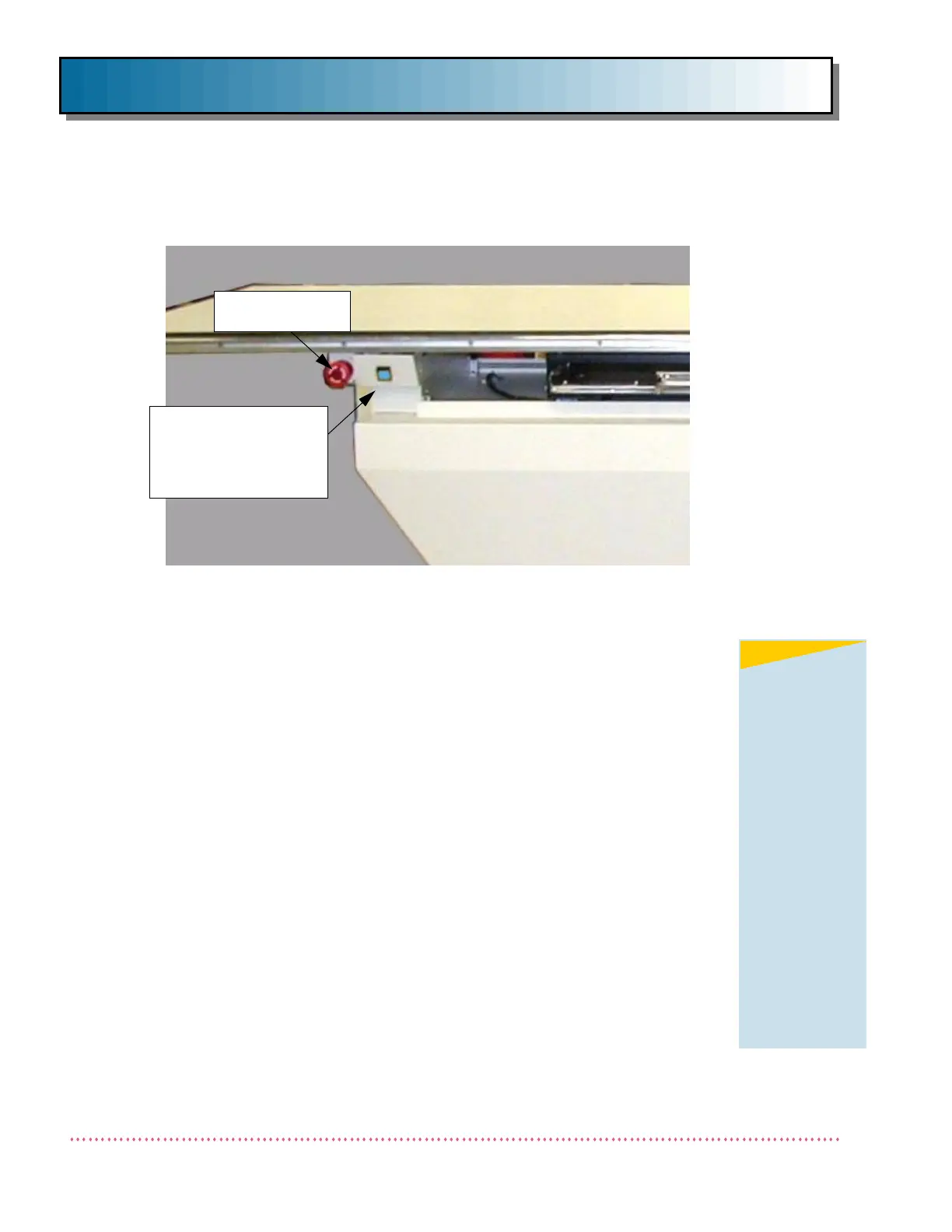

Figure 6. Emergency Stop and Pedal Disable Switch Locations
NOTE
Model QT-750
tables are
equipped with
Obstruction
Sensors, which
detect the
presence of an
obstruction
below the
tabletop when
the tabletop is
being driven
downward.
This feature is
only designed
to avoid dam-
age to the
table and is not
intended as a
safeguard
against per-
sonal injury.
