Chapter 3 Operation
Models QT-740 & QT-750 - Operator’s Manual
19
Loading Cassette Tray (Poersch Type)
To load a film cassette into a "Poersch" type cassette tray, proceed as fol-
lows:
1. Float the table top fully back.
2. Pull cassette tray from receptor using tray handle (see Figure 9).
3. Place thumb under lip of clamp handle. Lift handle to release.
4. Grasp handle and slide clamp back for inserting cassette.
5. Insert cassette into tray (back end first). Center it using center-
ing label.
6. Slide clamp forward pushing clamp firmly against cassette.
7. While pushing clamp against cassette, press clamp handle down.
TRAY HANDLE
CLAMP HANDLE

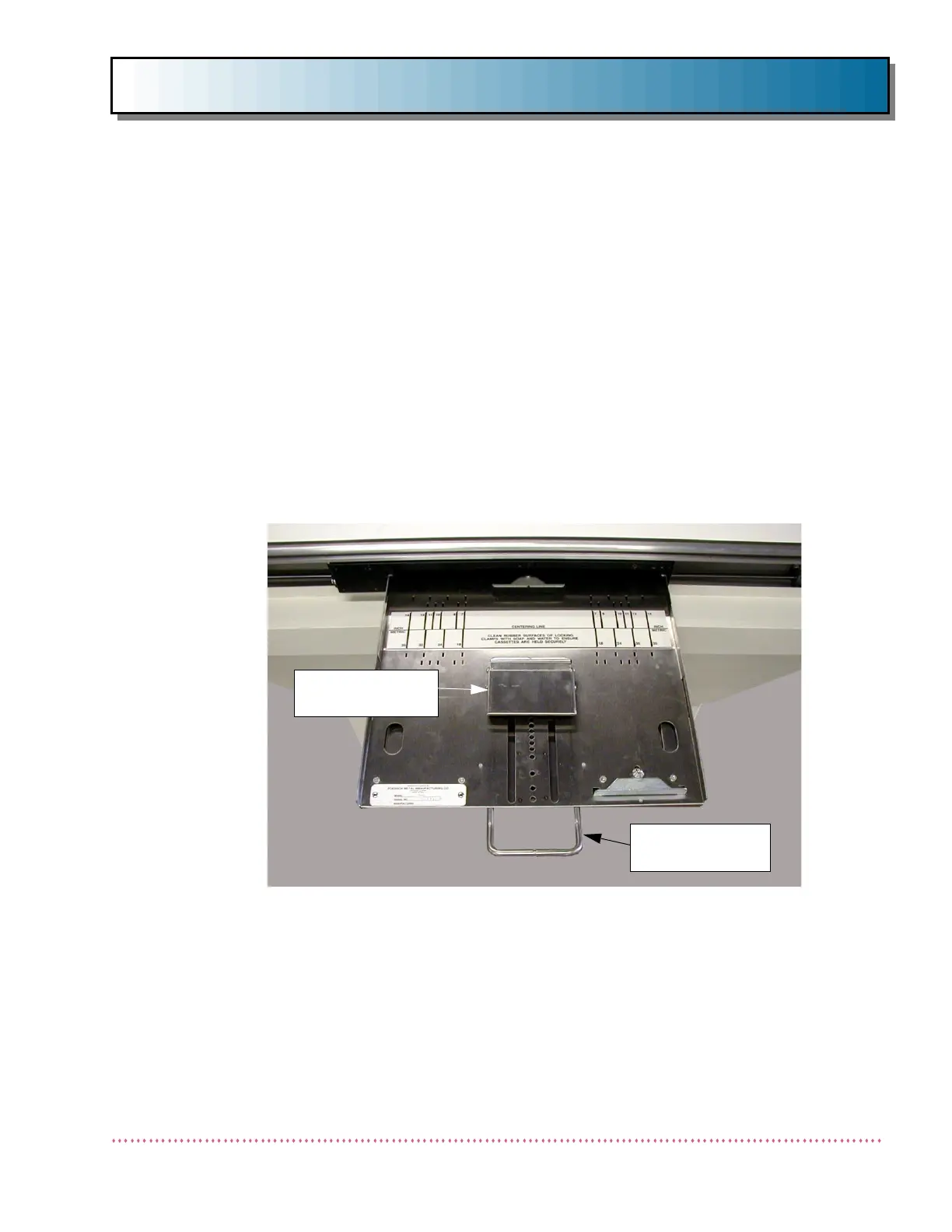

Figure 9. Poersch Cassette Film Tray
