15 | Page Rev. 1

5.) ATTACHING THE ELECTRIC HOSE, WAND, AND ELECTRIC POWER

HEAD TO THE QUANTUM

Select the electric hose, electric wand and the electric

power head. See these items 11, 12 & 13 in the section 2:

“what’s in the box”.

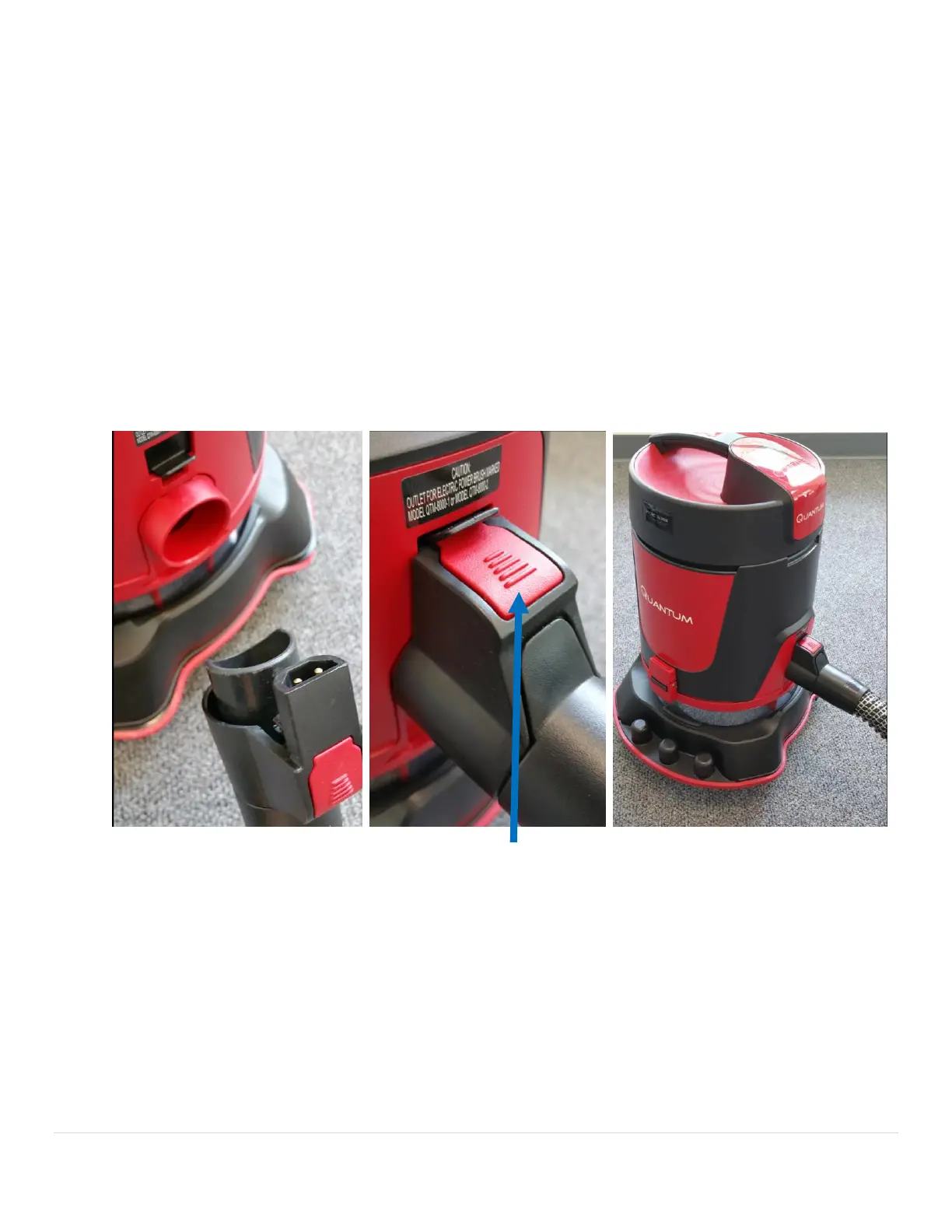

a. Attach the electric hose by pressing hose coupling into the

air inlet opening of the Quantum until hose end electric

connection clicks and locks into place. To remove, squeeze

red coupling latch/button and pull hose out of the

air/power inlet.

Hold down the top red button,

and push hose in, until HOSE is fully seated.
