Quartz Q16/Q32 System Manual
18 May 2004 Issue 5.00 Page 13

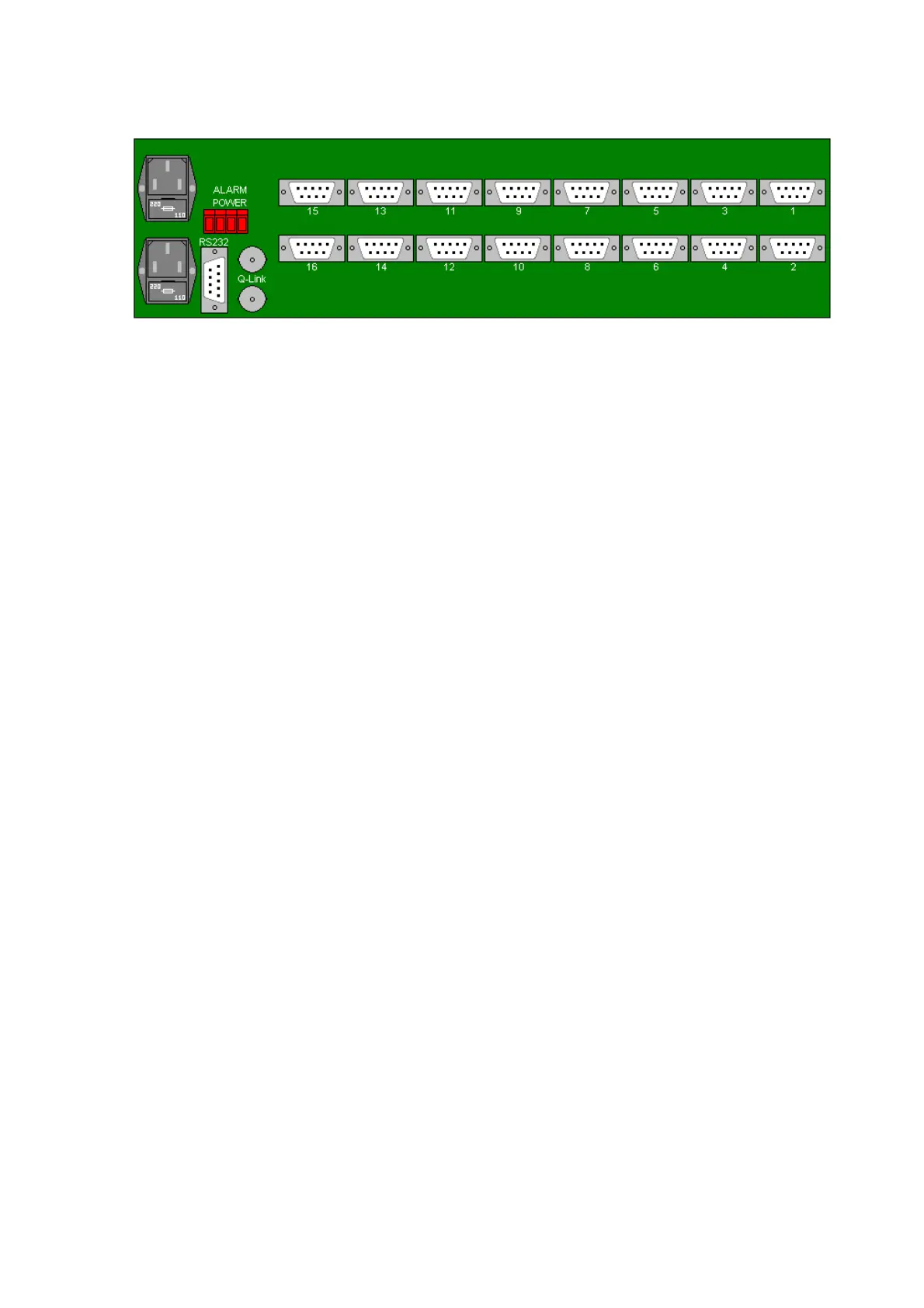

The Q1600-RR-1600 Port RS422 or RS232 Router
The internal design of the Q1600-RR port router uses a relay matrix. This means that the D9
connector signal pins 2, 3, 7, 8 have no specific function and pin 2 of one connector is connected to
pin 2 of a corresponding connector when a route is made.
