Quectel EC21-A User Manual

LTE Standard Module Series
EC21_Series_Hardware_Design
84
/ 118

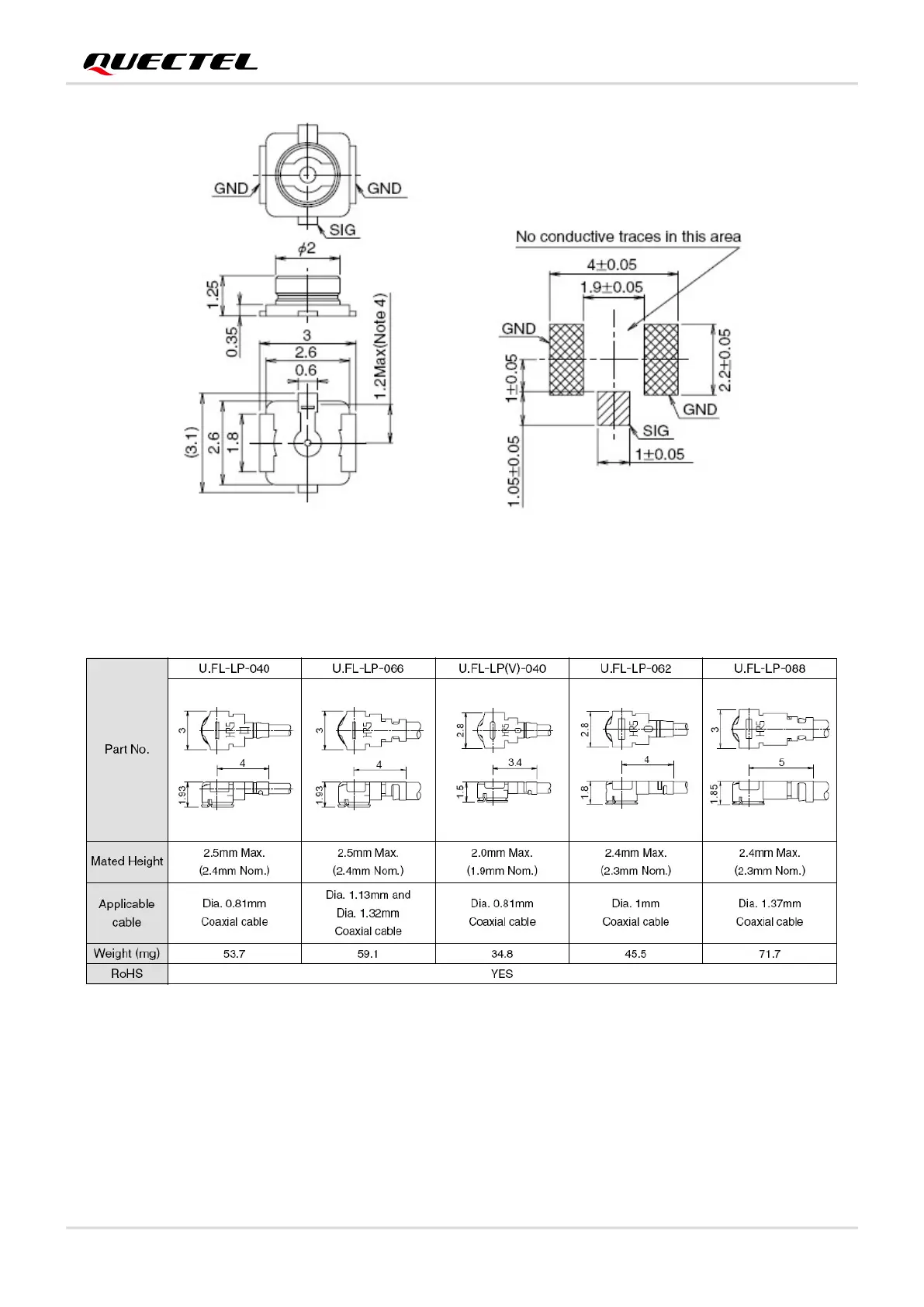

Figure 39: Dimensions of the U.FL-R-SMT Connector (Unit: mm)
U.FL-LP serial connectors listed in the following figure can be used to match the U.FL-R-SMT.
Figure 40: Mechanicals of U.FL-LP Connectors
The following figure describes the space factor of mated connector.
