LTE
Module
Series
EG21-G
Hardware
Design
EG21
-
G_Hardware_Design
64
/
100

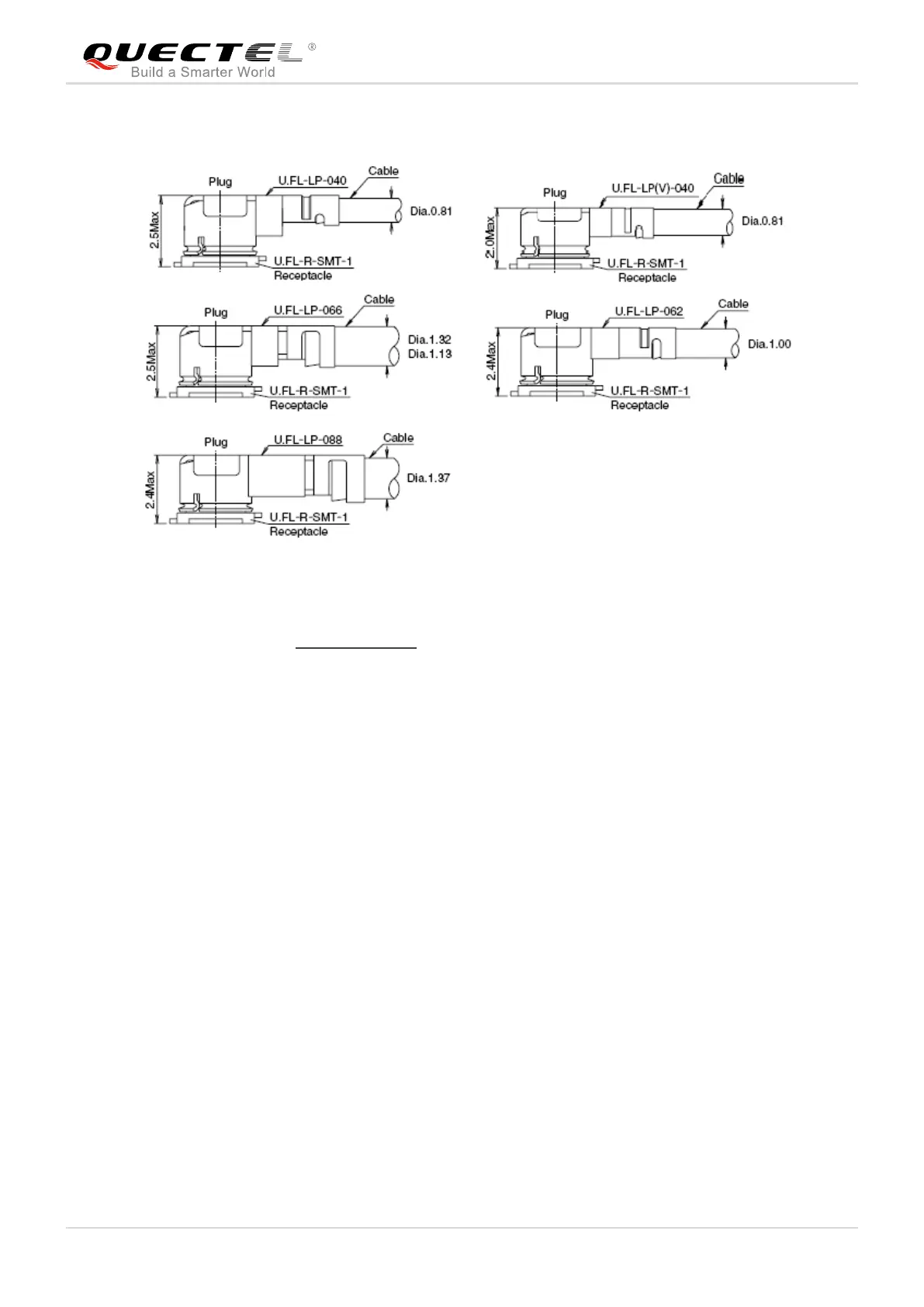

The following figure describes the space factor of mated connector
.
Figure
38
: Space Factor of Mated Connector (Unit: mm)
For more details, please visit http://hirose.com.
64
66
