Quectel LTE Standard Module Series Reference Design

LTE Standard Module Series
EG21-G Reference Design
EG21-G_Reference_Design 8 / 8
1.2.3. Resetting Scenario
V
IL
≤0.5V
V
IH
≥1.3V
VBAT
≥150ms
Resetting
Module
Status
Running
RESET_N
Restart
≤460ms

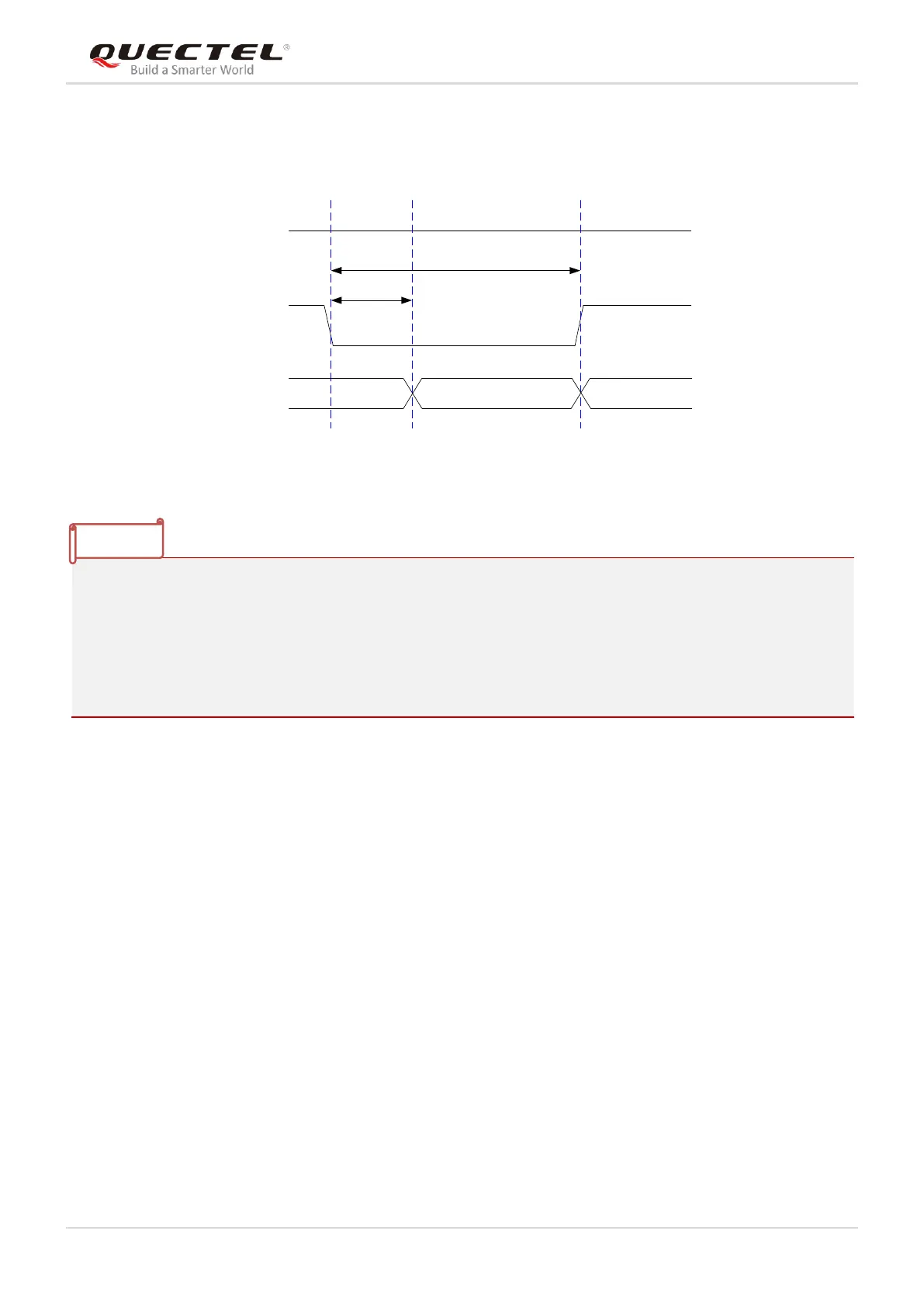

Figure 3: Timing of Resetting Module
1. Please ensure that there is no large capacitance with the max value exceeding 10nF on PWRKEY
and RESET_N pins.
2. RESET_N only resets the internal baseband chip of the module and does not reset the power
management chip.
3. It is recommended to use RESET_N only when failing to turn off the module by AT+QPOWD
command or PWRKEY pin.
1.3. Schematics
The schematics illustrated in the following pages are provided for your reference only.
NOTES

Quectel LTE Standard Module Series Specifications

General

Category	Wireless Modules
Series	LTE Standard Module Series
Manufacturer	Quectel
Operating Temperature	-40°C to +85°C
LTE Technology	LTE
LTE Category	Cat 1, Cat 4
LTE Bands	Varies by model (e.g., B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B38, B39, B40, B41)
UMTS Bands	B1/B5/B8
GSM Bands	850/900/1800/1900MHz
Max Download Speed	10 Mbps (Cat 1), 150 Mbps (Cat 4)
Max Upload Speed	5 Mbps (Cat 1), 50 Mbps (Cat 4)
Data Rates LTE	LTE Cat 1/Cat 4
Voice	VoLTE, CSFB
Interfaces	USB, UART, PCM
GNSS	GPS, GLONASS, BeiDou, Galileo
Supply Voltage	3.3V - 4.3V
Voltage Range	3.3V - 4.3V
Weight	Varies by module. Example: 5.0g
Dimensions	Varies by module. Example: 29.0 × 32.0 × 2.4mm
