Using the TELE-Paging function
You can connect the PR-Series mixer-amplifiers to a business telephone system using the TELE PAGING connector
allowing announcement paging from any telephone. Usually, the telephone system provides a dedicated output and
has the ability to send a page using a certain extension number. Check the manufacturer's operating manual of the
telephone system for operation detail.

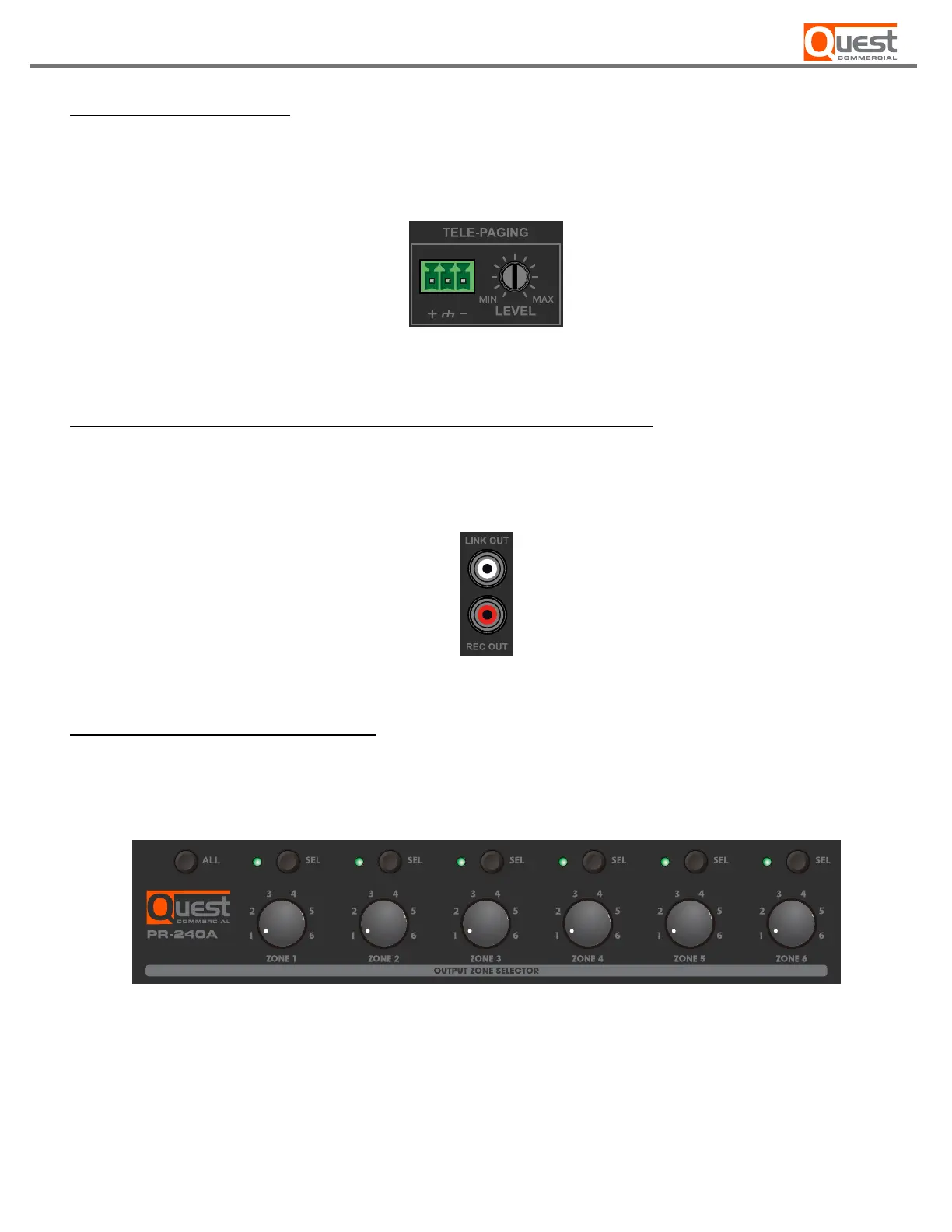

[Figure 3.5]
Expanding The PR-Series public address amplifiers using the LINK OUT or REC OUT
If the system installation requires more inputs and outputs, you can use an external mixer or additional PR-Series
mixer-amplifiers using the LINK OUT and REC OUT connectors. Connect the LINK OUT of the first PR-Series mixer-
amplifier to one of the LINE inputs of the second unit, or use the REC OUT to send the signal to another piece of
equipment.
[Figure 3.6]
Output Zone Selector and Volume Controls
The PR-Series mixer-amplifiers feature a 6-Zone output selector, each zone with a dedicated 6-steps attenuator.
Select each individual zones as required, or press the ALL button, to send the source to each individual zone, or all
zones, as required. The volume in each zone can be adjusted using the 6-steps volume attenuator for each zone.
[Figure 3.7]
– 16 –
PR-130A / PR-240A
