Before suspending any speaker system
always inspect all components (enclosure,
rigging frames, track fittings, etc.) for cracks,
deformations, corrosion, missing, loose or
damaged parts that could reduce strength
and safety of the array. Do not suspend the
speaker system until the correct preparation
of the installation site has been taken to avoid
health risks during and after the completion
of the installation. A licensed Professional
Engineer must approve the placement and
method of attachment to the structure prior to
the installation of any overhead object.
Rotating the Horn Flare
The asymmetrical horn flare can be rotated
through three separate planes of dispersion
depending on the speaker box requirement
and installation environment. The planes are
vertical installation, horizontal installation and
foldback monitor.

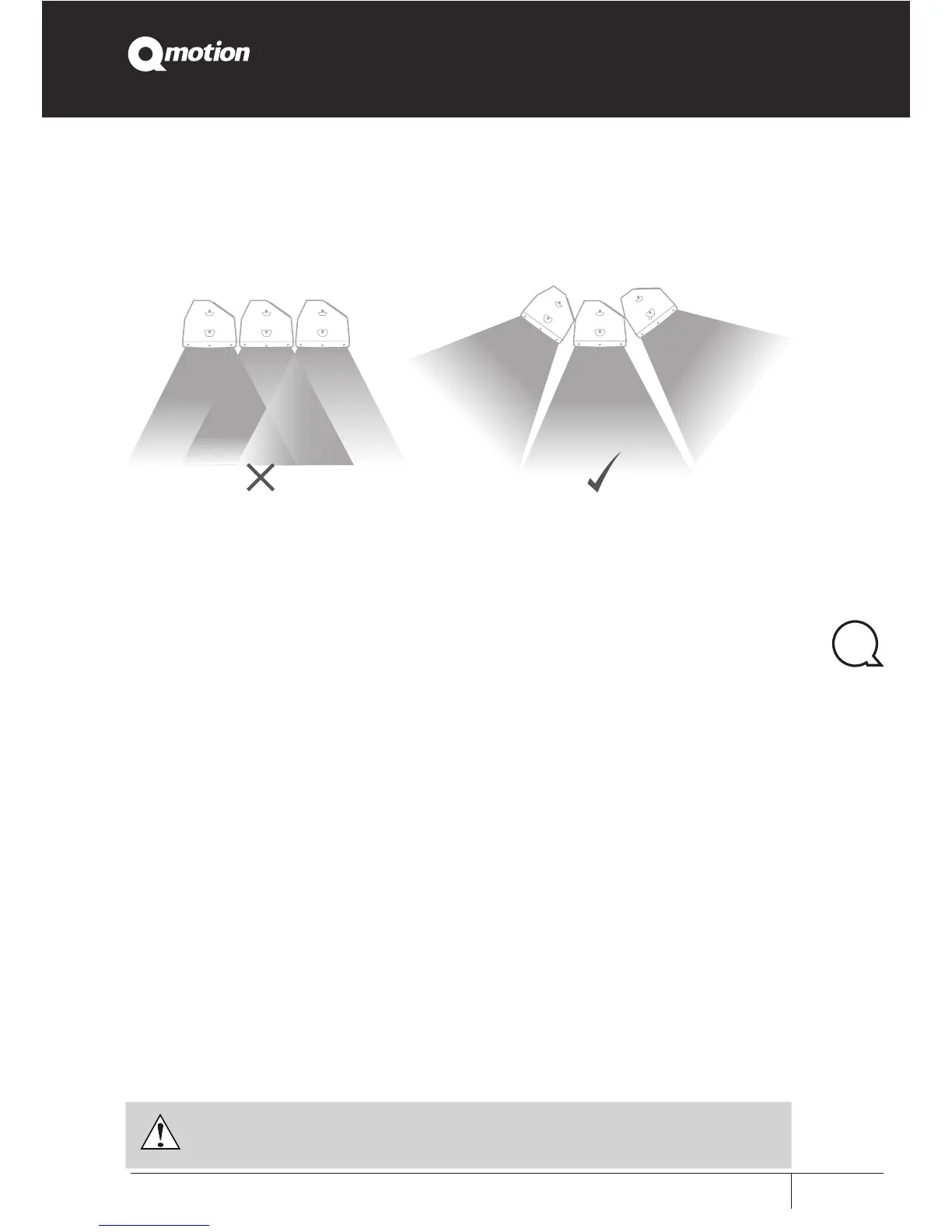

Good coverage of audiences often requires
wide dispersion at the base of the horn flare
to cover close listeners and a focused narrow
dispersion at the top of the flare to beam to
the back of the room.
Flying the QM450A
The QM450A horizontal horn covers both
“short-throw” and “long-throw” requirements
in a single system. For the majority of
installations (where the box is installed
vertically), the asymmetrical horn should be
used as supplied and will not need to be
rotated.
For horizontal installation rotate 45 degrees
so the arrow is pointing at the floor side so
as to have the “beaming” facility at the top of
the horn.
Foldback HF coverage
For stage foldback monitors the coverage
must be wide when performers are close
to the wedge and beam down the stage
to minimize the spill off the stage that may
interfere with the main PA.
For floor monitor use the horn must be
rotated with its “wide” dispersion (arrow
indicator), side directed towards the top of
the horizontal floor cabinet.
When removing and reinstalling the front
grill to rotate the horn, ensure the nuts are
not over tightened as this may make them
difficult to remove in future or cause them to
be damaged.
WARNING
Ensure the box is securely located. If any doubt about the physical
stability, tie the box down with ratchet straps to a secure base.
