Flood Gate Manual | www.quickdams.com
HOW THEY WORK
• Flood Gates quickly seal off doorways from ood water
• Minimize water intrusion, of depths up to 23 inches, through doors or other openings.
• Flood Gates are not designed to withstand impacts from debris and/or waves.
• Effectiveness of Flood Gates is dependent upon pressure between sides and bottom
of opening. The structure in which it is installed must be in good shape and able to withstand this
pressure. The structure surface must have a smooth surface capable of maintaining a seal.

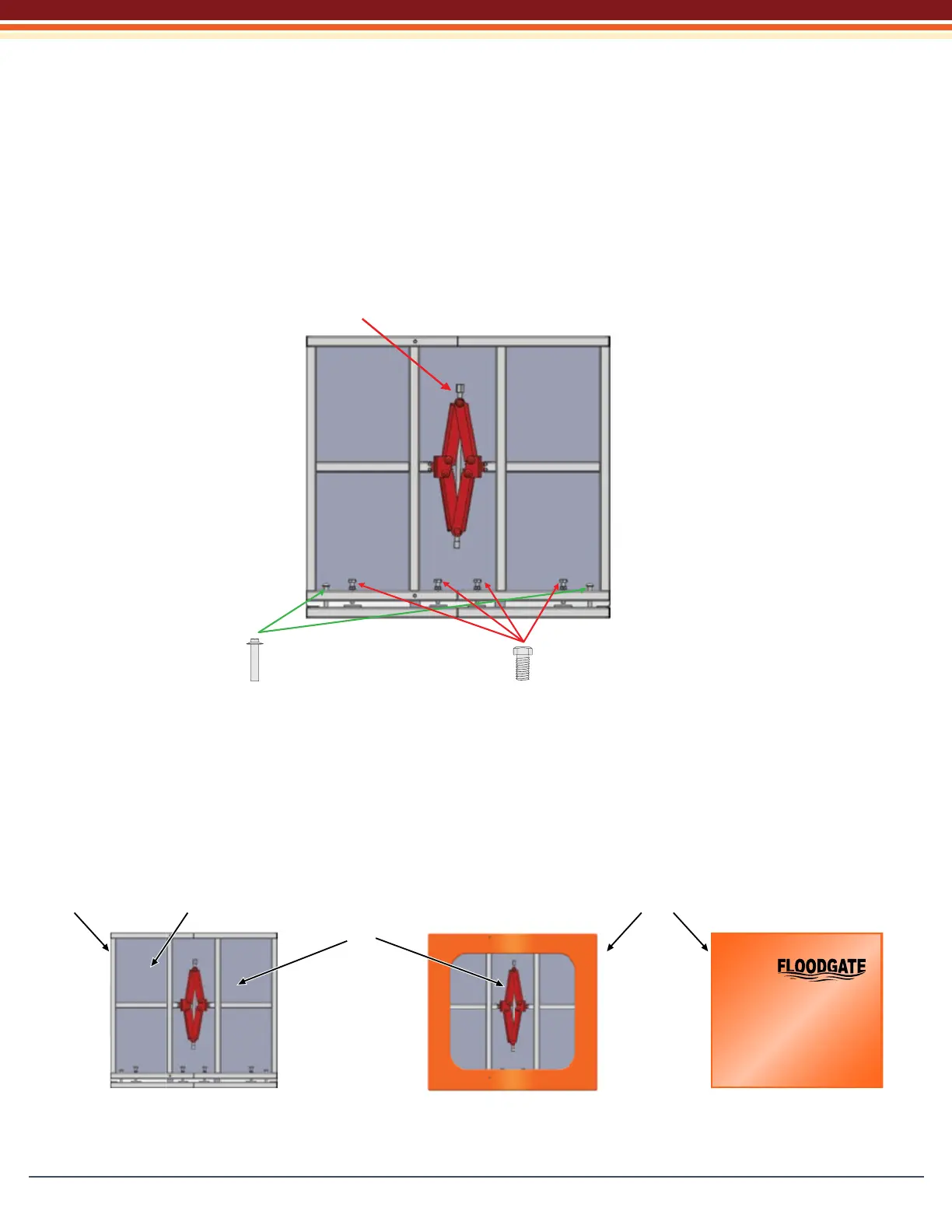

(A) FLOOD GATE – ADJUSTED FROM REAR OF PRODUCT (Shown without neoprene cover)
WHAT THEY ARE MADE OF:
A. 1” Steel Tube Frame- provides the support structure
B. 1/8” Front Steel Flat Sheets- block & take the weight of the water
Please note: Flat sheet is only connected on one side of the gate to allow for expansion
C. 2 ton Scissor Jack – expands & creates a secure t within door frame
D. Neoprene Sleeve- surrounds entire system & provides a watertight seal around its perimeter
MAIN JACK POINT (HORIZONTAL MOVEMENT OF BARRIER)
SECURITY PIN
(NO ADJUSTMENT)
4 X ADJUSTING BOLTS
(TO CREATE DOWNWARD PRESSURE/SEAL)
A. D.B.
C.
Back shown without
Neoprene Sleeve
Back shown with
Neoprene Sleeve
Front shown with
Neoprene Sleeve
