QUICK DAM Flood Gate User Manual

7
Flood Gate Manual | www.quickdams.com
C
BA

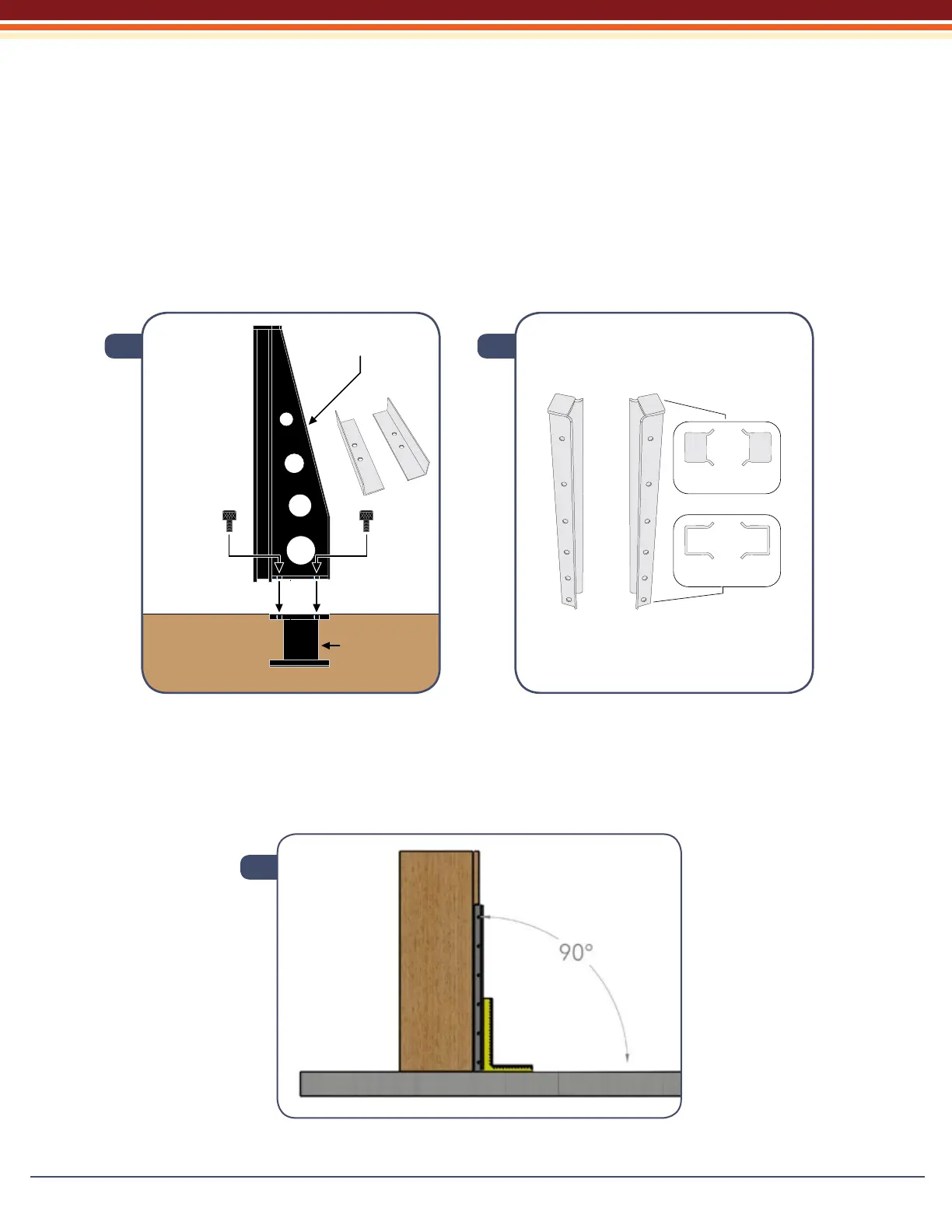

INSTRUCTIONS FOR STANCHION & SIDE RAILS
To connect multiple Flood Gates together the Stanchion set must be used
The parts shown in illustration (A) come in one kit with all of the necessary hardware. Illustration (B) shows
the Side Rails that are sold in pairs.
The condition of your existing surface and installation options should be discussed with a qualied architect,
engineer or contractor. General knowledge in concrete construction is necessary for this project.
It is important that the Side Rails and Stanchions are square to the ground surface and parallel
to each other.
TOP
BOTTOM
Flood water
comes from
this side
Ground
UNDERGROUND
Upright Stanchion
Base
TOP
BOTTOM
Flood water
comes from
this side
Ground
UNDERGROUND
Upright Stanchion
Base
TOP
BOTTOM
Flood water
comes from
this side
Ground
UNDERGROUND
Upright Stanchion
Base
A: Upright Stanchion B: Side Rails
