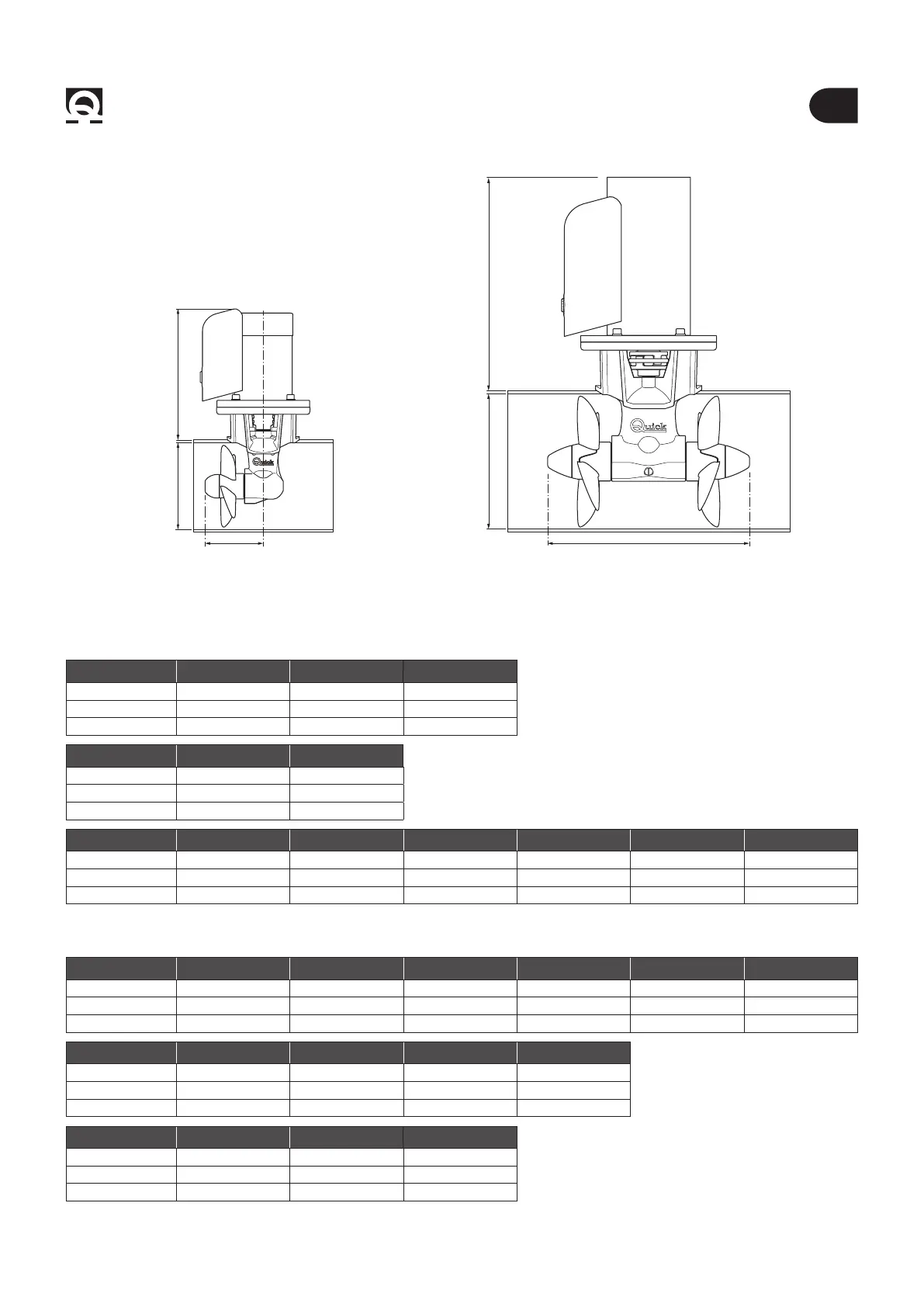

BTQ series11 - Dimensioni eliche di manovra
A
B
C
BTQ250 BTQ2512012 BTQ2512024 BTQ2514024 BTQ2524024
A 393 (15" 15/32) 393 (15" 15/32) 397 (15" 5/8) 475 ( 18" 45/64)
B 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32)
C 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16)
BTQ185 BTQ1805512 BTQ1805524 BTQ1807512 BTQ1807524 BTQ1809512 BTQ1809524
A
292 (11” 1/2) 278 (10” 15/16) 329 (12”) 280 (11”) 410 (16” 9/64) 374 (14” 23/32)
B
185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32)
C
116 (4" 9/16) 116 (4" 9/16) 116 (4" 9/16) 116 (4" 9/16) 116 (4" 9/16) 116 (4" 9/16)
BTQ185 DP BTQ1806512 BTQ1806524 BTQ1808512 BTQ1808524 BTQ1810512 BTQ1810524
A 292 (11” 1/2) 278 (10” 15/16) 329 (12”) 280 (11”) 410 (16” 9/64) 374 (14” 23/32)
B 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32) 185 (7” 9/32)
C 267 (10" 33/64) 267 (10" 33/64) 267 (10" 33/64) 267 (10" 33/64) 267 (10" 33/64) 267 (10" 33/64)
BTQ300 BTQ3025024 BTQ3027024 BTQ3030048
A
410 (16 9/64) 482 (18" 31/32) 520 (20 15/32)
B
300 (11 11/16) 300 (11 11/16) 300 (11 11/16)
C
434 (17" 3/32) 434 (17" 3/32) 434 (17" 3/32)
BTQ110/125 BTQ1102512 BTQ1253012 BTQ1254012
A
261 (10" 9/32) 261 (10" 9/32) 261 (10" 9/32)
B
110 (4 21/64) 125 (4”) 125 (4”)
C
84 (3 5/16) 84 (3 5/16) 84 (3 5/16)
BTQ140 BTQ1403012 BTQ1404012
A
235 (9" 1/4) 264 (10" 25/64)
B
140 (5 1/2) 140 (5 1/2)
C
108 (4 1/4) 108 (4 1/4)
A
B
C
ELICA SINGOLA
ELICA SINGOLA
ELICA DOPPIA
ELICA DOPPIA
