Quick BTQ Series Installation And Use Manual

EN
BTQ SERIES INSTALLATION AND USE MANUAL - IT EN - REV001A
35

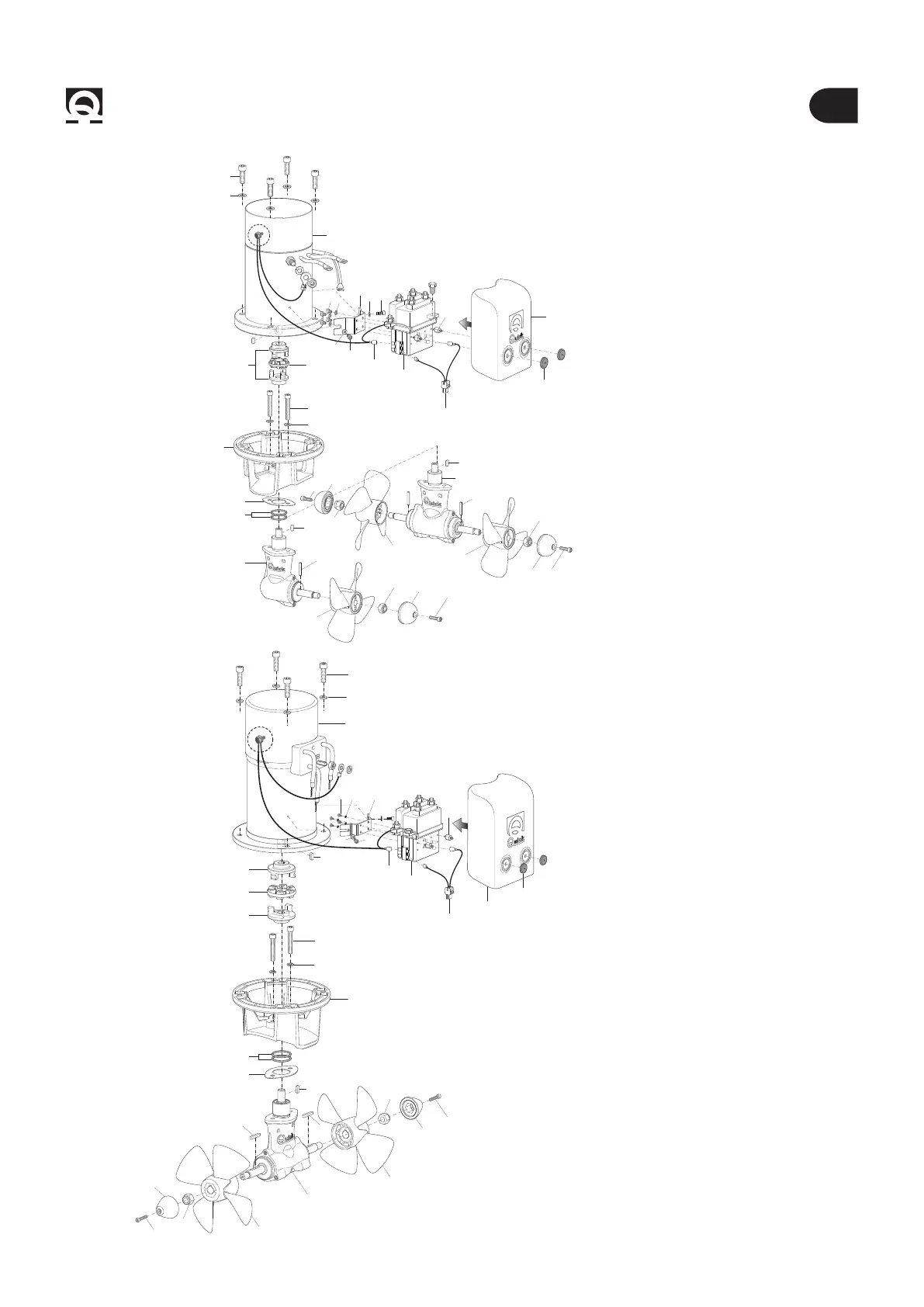

BTQ series10 - Spare parts
1
2
3
45
6
10
9
12
13
15
16
17
19
30
29
20
25
24
21
27
26
18
9
11
12
14
28
23
22
23
22
7
8
13
15
16 17
17
16
15
NR DESCRIPTION
1 MOTOR MOUNTING SCREW
2 MOTOR MOUNTING WASHER
3 MOTOR
4 EVEN TENSION DEVICE
5 HALF-JOINT
6 MOTOR FLANGE
7 GEARLEG GASKET
8 O-RING
9 KEY
10 GEARLEG SINGLE PROPELLER
11 GEARLEG DOUBLE PROPELLER
12 PLUG
13 RIGHT PROPELLER (RH)
14 LEFT PROPELLER (LH)
15 FIXING NUT PROPELLER
16 ANODE
17 SCREW ANODE
18 WASHER
19 SCREW
20 REVERSING CONTACTOR
21 REVERSING CONTACTOR BRACKET
22 WASHER
23 SCREW
24 GROWER
25 SCREW
26 THERMIC PROTECTION BTQ + CABLE
27 COMMAND CABLE
28 CARTER SPACER B
29 CARTER REVERSING CONTACTOR UNIT
30 FASTENERS CARTER REVERSING CONTACTOR UNIT
7
27
25
26
24
28
29
22
23
20
19
18
9
8
17
5
6
5
4
4
3
2
1
16
13
16
14
11
11
15
12
10
15
14
21
1 MOTOR MOUNTING SCREW
2 MOTOR MOUNTING WASHER
3 MOTOR
4 KEY
5 HALF-JOINT
6 EVEN TENSION DEVICE
7 MOTOR FLANGE
8 O-RING
9 GEARLEG GASKET
10 GEARLEG
11 KEY
12 RIGHT PROPELLER (RH)
13 LEFT PROPELLER (LH)
14 SELF-BRAKING NUT
15 ANODE
16 ANODE FIXING SCREW
17 GROWER
18 GEARLEG FIXING SCREW
19 REVERSING CONTACTOR BRACKET
20 SCREW
21 GROWER
22 WASHER
23 SCREW
24 REVERSING CONTACTOR
25 CARTER SPACER B
26 REVERSING CONTACTOR CARTER
27 FIXING CARTER REVERSING CONTACTOR
28 THERMIC PROTECTION BTQ + CABLE
29 COMMAND CABLE
BTQ 1403012
BTQ 1404012
BTQ 1805512
BTQ 1805524
BTQ 1807512
BTQ 1807524
BTQ 1809512
BTQ 1809524
BTQ 1806512
BTQ 1806524
BTQ 1808512
BTQ 1808524
BTQ 1810512
BTQ 1810524
BTQ 2512012
BTQ 2512024
BTQ 2514024
BTQ 2524024
BTQ 3025024
BTQ 3027024
BTQ 3030048
SINGLE PROPELLER
DOUBLE PROPELLER
DOUBLE PROPELLER
