INSTALLATION
EN
BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006A
PROPELLER
CONTROL PANEL
To install the control panel, consult the “TCD 1022 - TCD 10422 - TCD 1044” instruction manuals.
LOCTITE
WARNING: on conclusion of assembly,
make sure that the propeller is exactly posi-
tioned at the central point of the tunnel.

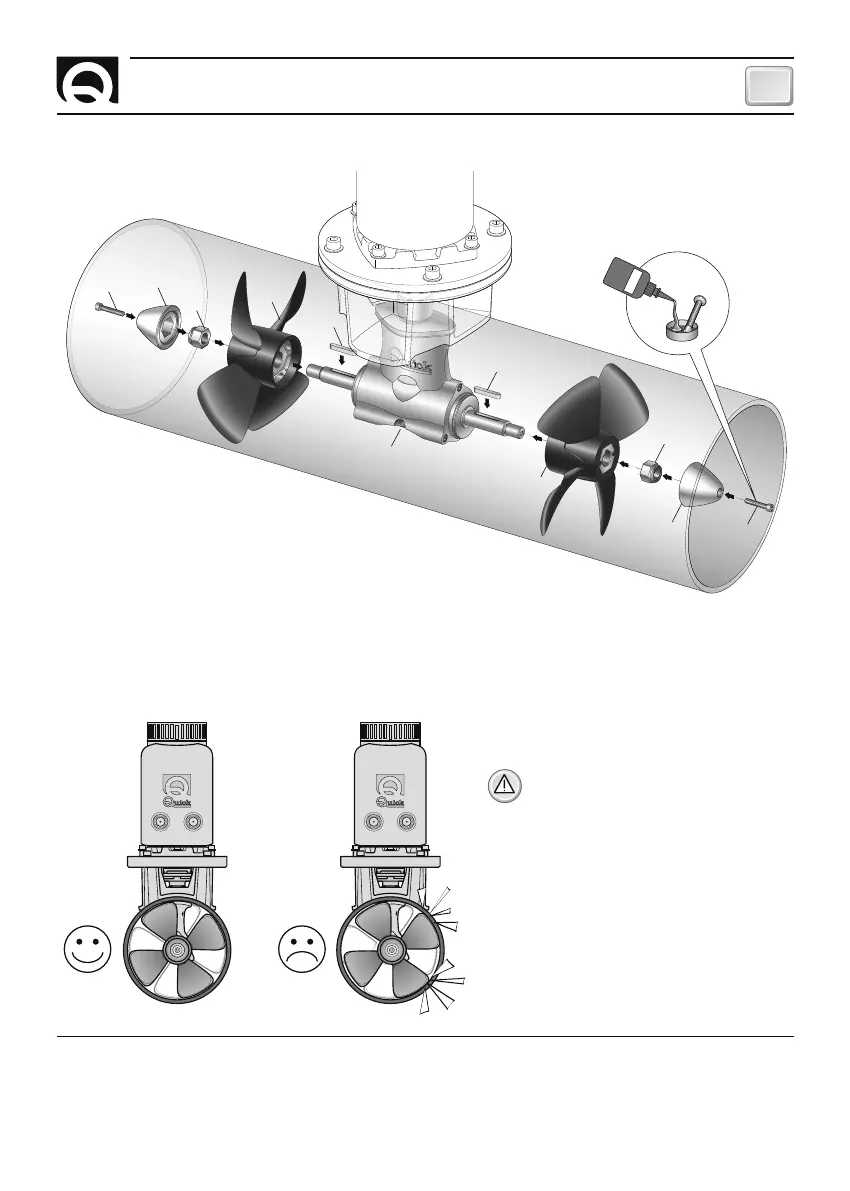

PROPELLER FITTING
Insert the drive keys A onto the gearleg B ; assemble the propellers C and D at the gearleg, fitting them onto the drive pins A
and anchor the propellers with the self-braking nuts
E .
The anodes F fit onto the nut E and are then anchored with the screws G which must be wetted with thread-locking adhesive
(such as loctite).
A
B
C
E
G
F
A
D
E
F
G
