24
GB
RETRACTABLE THRUSTER BTR185 - IT GB - REV004B
24
INSTALLATION
SYSTEM CHECK AND MECHANIC ADJUSTMENT
According to the most opportune techniques, realise a closing lid of the opening on the hull and fix it to the solid metal
plate to tunnel of the retractable unit.
1) The BTR propeller should be disconnected from power.
2) Take the ring off and remove the pin (fig.
7
/ part
A
), unhook the actuator from the lever (part.
B
), ensure that the
pantograph system is free to open and close without any mechanical obstacle (manually moving the C lever).

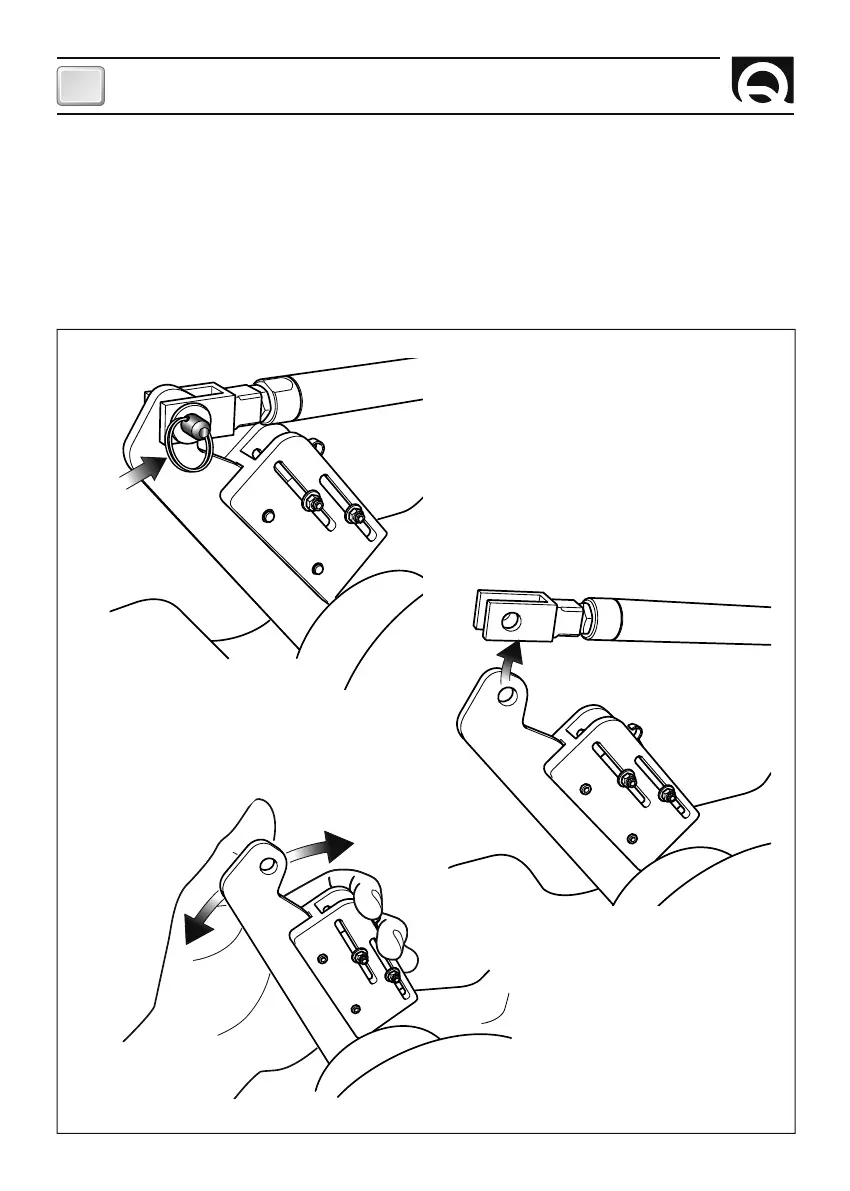

FIG. 7
A
B
C
Follow the sequence described below to verify the opening of the hatch:
