23
INSTALLATION
GB
RETRACTABLE THRUSTER BTR185 - IT GB - REV004B

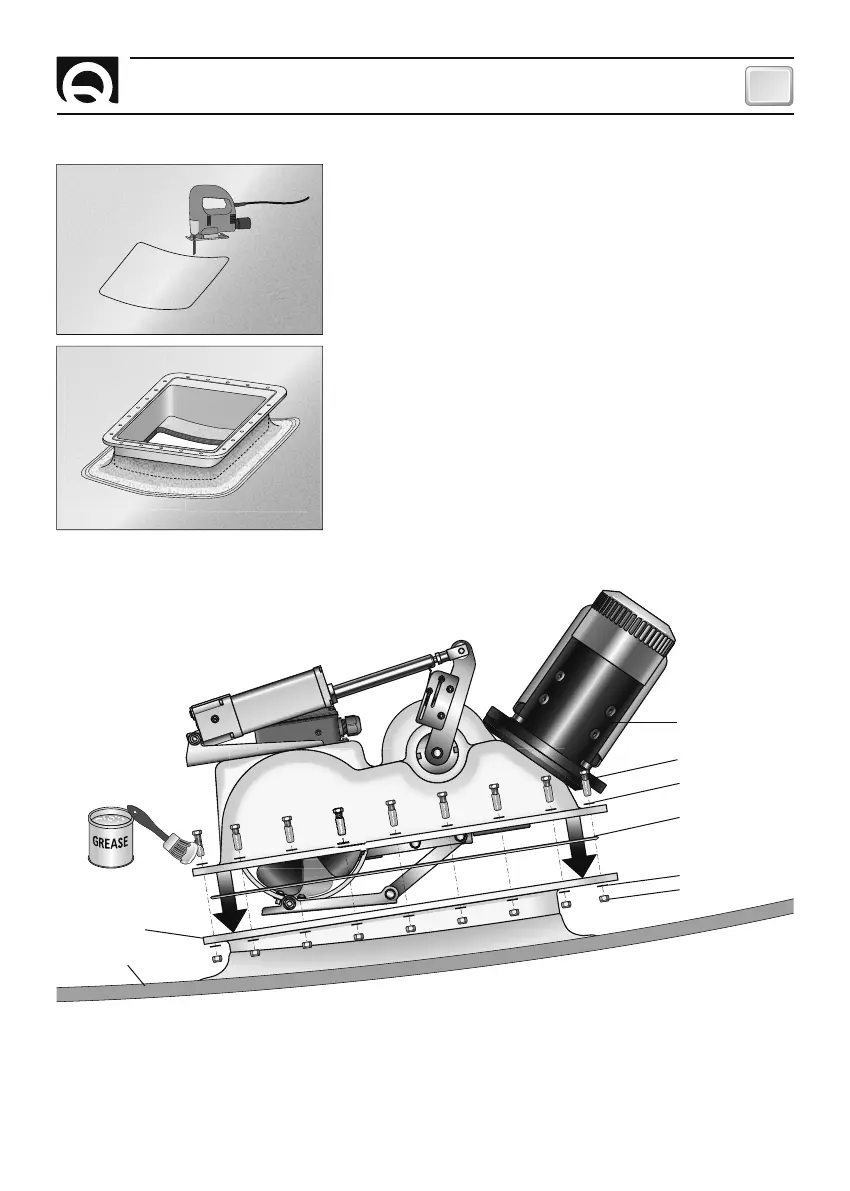

Realise the opening in the hull for tunnel passage, by cutting the hull along
the outlined perimeter.
Align the support to the pre-established position and resin it, weld it in
case of aluminium or steel, according to the techniques identified as most
suitable for the type of hull construction.
Fig. 4
Fig. 5
Fig. 6
Assemble the thruster to support, now integral with the hull, using the provided bolts and screws, verifying the correct
positioning of the o-ring in the support.
O-RING
BOLT
WASHER
WASHER
NUT
SUPPORT
HULL
THRUSTER
