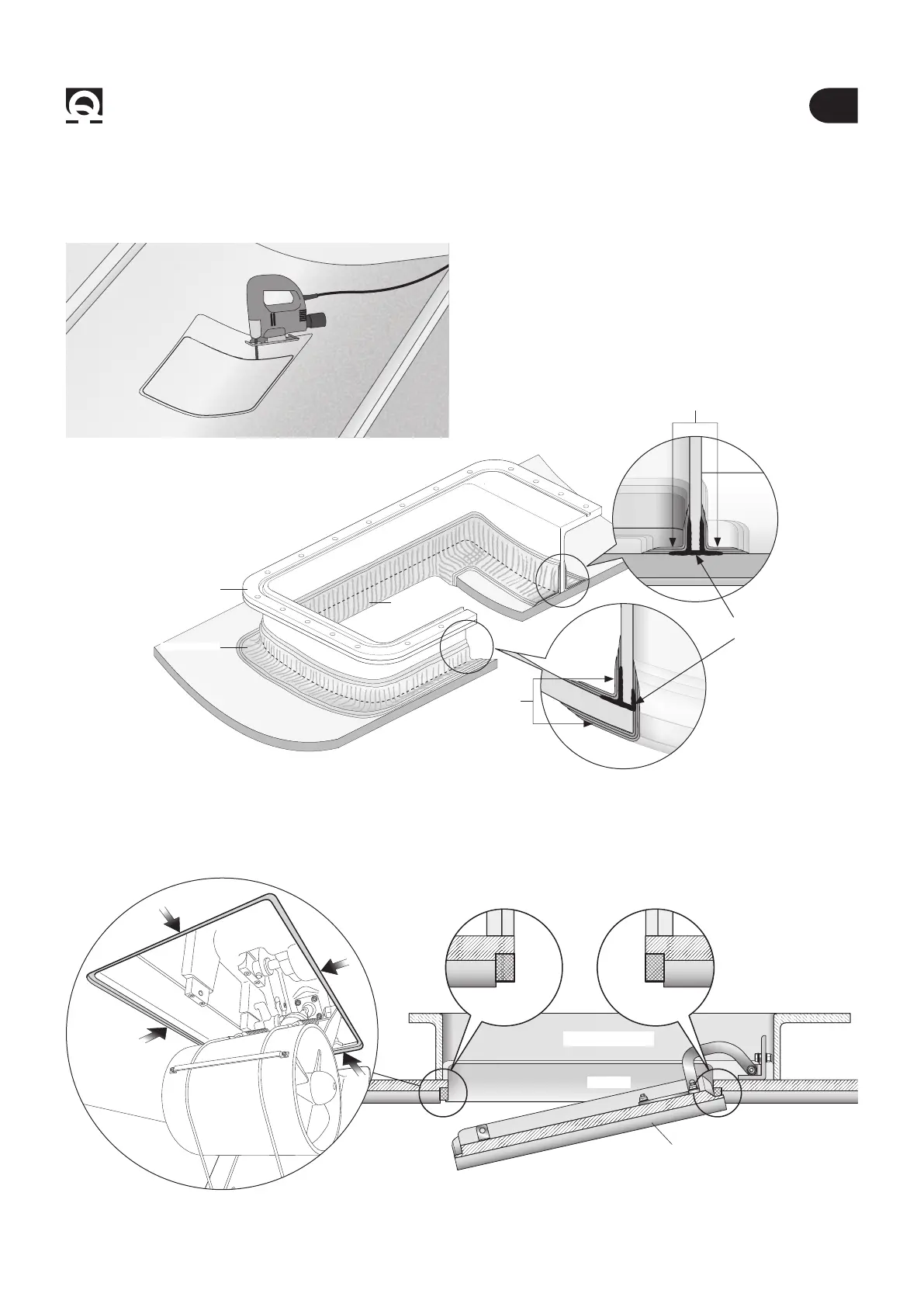

BTR1854 - Installation
• Cut the hull along the cutting area previously marked
(g. 4).
• Align the counter ange to the hull’s opening and check that the two heights (X) are correct. Resinate the counter ange, or
solder it in case of aluminium or steel, according to the techniques the most suitable to the hull’s material (g. 5).
Fig. 4
LID
HULL
Fig. 6
COUNTER FLANGE
• Make a solid coaming for the closing lid on the whole perimeter of the hull’s opening (g. 6).
Fig. 5
Laminating system
recommended by Quick
®
.
F
HULL
COUNTER FLANGE
STRUCTURAL ADHESIVE
GRP LAYERS
GRP LAYERS
GRP LAYERS
GRP LAYERS
