Quick DYLAN DH User Manual

16
GB
DYLAN DH 1500/1700/2000W - REV001A
-
+

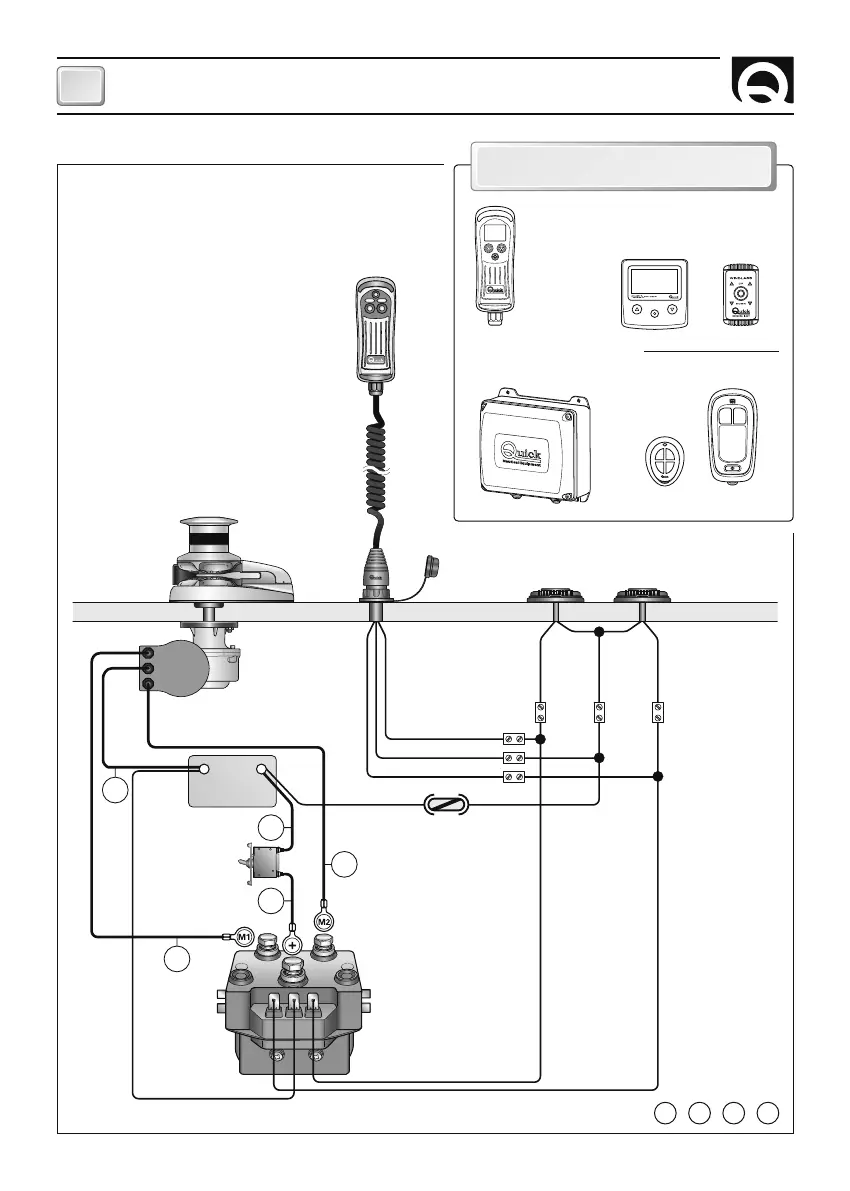

BASIC SYSTEM
SEE PAGE 44
SHOWING THE MAIN
CONNECTION DIAGRAM
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
MOTOR
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
(see table on
page 12)
CONTACTOR UNIT
MOD. T6315-12 (12V)
MOD. T6315-24 (24V)
C
A2
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
BROWN
BLACK
BLUE
A1
FUSE
4A (12V)
2A (24V)
L = L1 + L2 + L3 + L4
L4
L2
L3
L1
L3
CONNECTION DIAGRAM
RADIO POCKET
WATERTIGHT
PANEL
CHAIN COUNTER
WINDLASSES
CONTROL
BOARD
WATERTIGHT HAND HELD
CHAIN COUNTER
HANDHELD
RECEIVER
QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
TRANSMITTERS
REMOTE RADIO CONTROLS
RADIO POCKET
