Quick DYLAN DH User Manual

23
GB
DYLAN DH 1500/1700/2000W - REV001A
HYDRAULIC WINDLASS

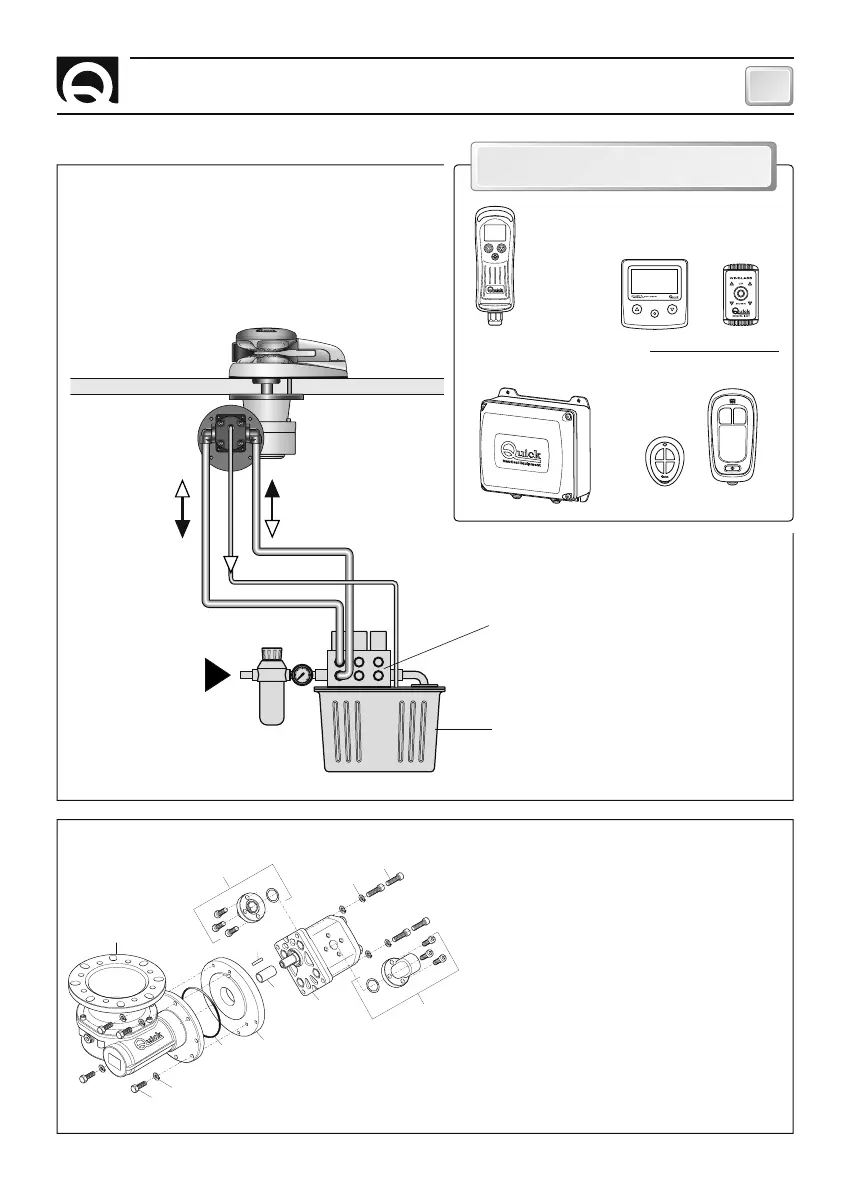

BASIC SYSTEM HYDRAULIC DYLAN DH
CONNECTION DIAGRAM
PRESSURE
INPUT
TANK
SELECTOR
VALVE
HYDRAULIC MOTOR
TASCABILE - PULSANTIERA
QUICK
®
ACCESSORIES
FOR HYDRAULIC WINDLASS OPERATION
WATERTIGHT
PANEL
CHAIN COUNTER
WINDLASSES
CONTROL
BOARD
WATERTIGHT HAND HELD
CHAIN COUNTER
RECEIVER TRANSMITTERS
REMOTE RADIO CONTROLS
HANDHELDRADIO POCKET
62
78
81
82
47
83
82
79
80
60
47
61
POS. DESCRIPTION CODE
47 Grower Ø 8 stainless steel MBG08X000000
60 Gearbox - 2000W - Quick series S L M R20TG7000
61 Vite 8*25 inox MBV0825MXE00
62 O-ring 2,5*98mm PGRM25980000
78 Flange SGMMGR2B1471
79 Adapter Ø19-Ø15 TG70 MSL AD 1915H00
80 Key 6*6*25 stainless steel SL M BH0606025
81 Bidirectional gear-type motor 9,6cc -
82 Flange 90° G3/4 female MNFL90F34D40
33 Screw 8*30 stainless steel MBV0830MXCE0
