16
TECHNICAL DATA
GB
GP2 SERIES GENIUS 500/1200 - REV001A
GB
Quick
®
reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
F

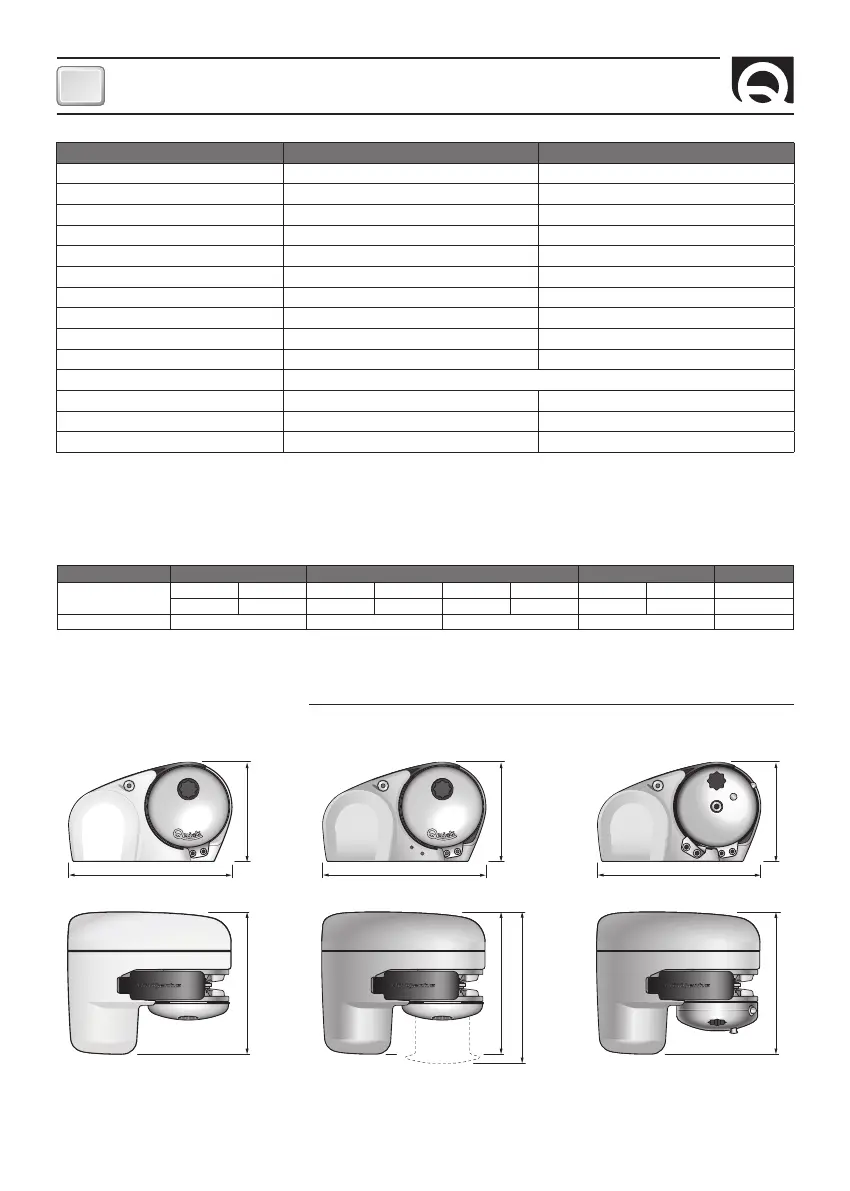

DIMENSIONS OF MODELS mm ( inch )
213 (8
23
/64)
129 (5
3
/32) 184 (7
17
/64)
GP2 500
213 (8
23
/64)
129 (5
3
/32) 184 (7
17
/64)
197 (7
49
/64)
GP2 1200 - / D
213 (8
23
/64)
129 (5
3
/32) 184 (7
17
/64)
GP2 1200 FF
(1) After an initial period of use.
(2) Measurements taken with a gypsy for a 8 mm chain.
(3) Minimum allowable value for a total length L< 20m (see pag. 18). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, studs can be supplied for greater deck thicknesses.
(*)
The values in the table regard a three-strand polyester rope with the “Quick
®
” system rope/chain joint.
(**) ISO EN 818-3.
MODELS GP2 500 GP2 1200 / D - GP2 1200 FF
MOTOR OUTPUT 150W 250W
Motor supply voltage 12V 12V
Maximum pull 220 Kg (485,0 lb) 550 Kg (1212,5 lb)
Maximum working load 70 Kg (154,3 lb) 170 Kg (374,8 lb)
Working load 35 Kg (77,2 lb) 50 Kg (110,2 lb)
Current absorption @ working load (1) 29 A 35 A
Maximum chain speed (2) 38,9 mm (83,7 ft/min) 31,2 mm (102,4 ft/min)
Maximum chain speed @ working load (2) 28,5 mm (33,8 ft/min) 25,1 mm (82,3 ft/min)
Motor cable size (3) 4 mm
2
(AWG 12) 10 mm
2
(AWG 7)
Protection circuit breaker (4) 40 A 40 A
Deck thickness (5) 20 ÷ 40 mm (3/4” ÷ 1” 9/16)
Weight mod. without drum 6 kg (22,4 lb) 8 kg (22,4 lb)
Weight mod. with drum - 9 kg (25,3 lb)
Weight mod. Free Fall - 10,9 kg (24,0 lb)
GYPSY 6 mm 7 mm - 1/4” 8 mm 5/16”
Chain size
6 mm 6 mm 7 mm 7 mm 1/4” 1/4” 8 mm 8 mm 5/16”
DIN 766 ISO** DIN 766 ISO** G4 BBB DIN 766 ISO** G4
Rope size * 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm) 1/2” (12,7 mm)
