Quick GP2 Genius 1500 Series - Connection Diagram; Basic System; Remote Radio Controls

16
GP2 SERIES GENIUS 1500/2000 - REV001B
EN

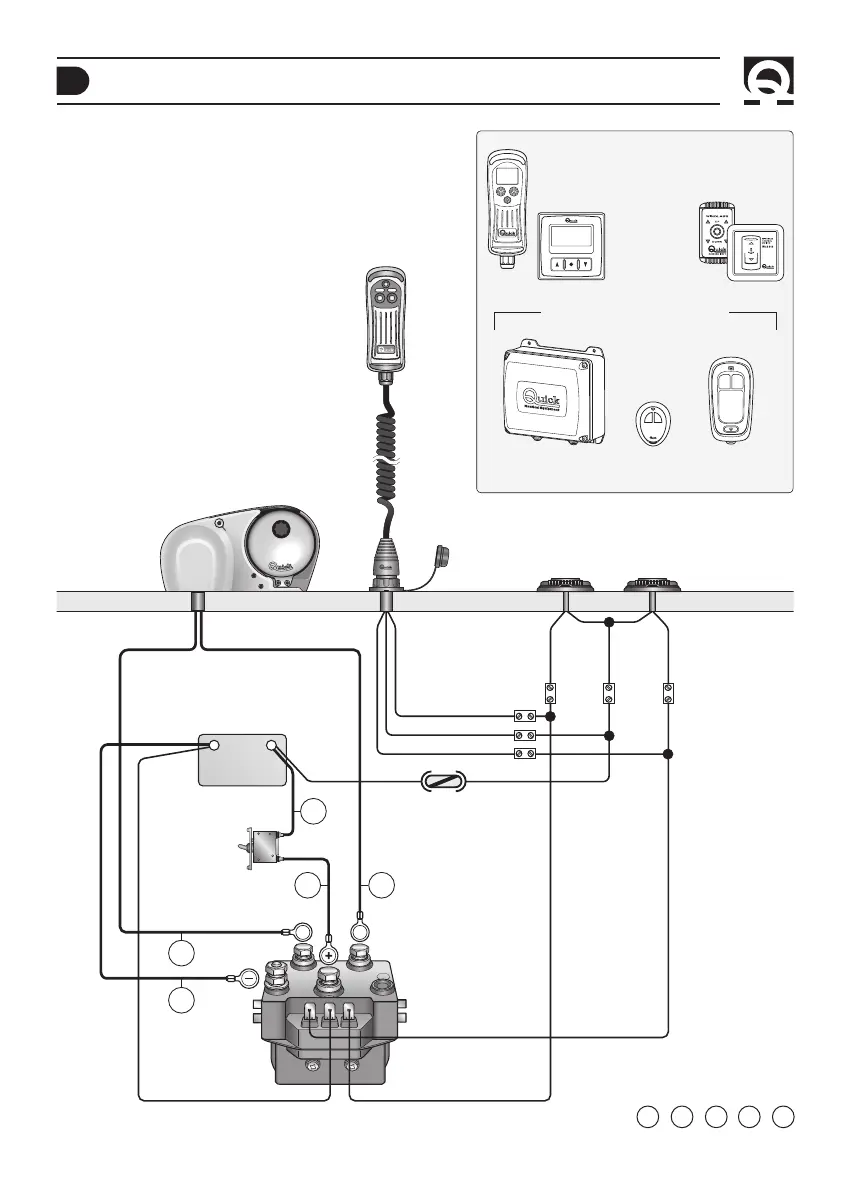

CONNECTION DIAGRAM
-
+
M1 M2
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
BATTERY
HYDRAULIC-
MAGNETIC CIRCUIT
BREAKER
(SEE TABLE ON
PAGE 14)
REVERSING
CONTACTOR UNIT
MOD. T6415-12 (12V)
MOD. T6415-24 (24V)
C
A2
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
BROWN
BLACK
BLUE
A1
FUSE
4A (12V)
2A (24V)
BASIC SYSTEM
WITH RECOMMENDED QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
L = L1 + L2 + L3 + L4 + L5
L3L2
L1
L4
L5
POCKET
MOD. P02
RECEIVERS
MOD. R02
HAND SET
MOD. H02
TRANSMITTERS
WATERTIGHT
PANEL
CHAIN COUNTER
CHC 1203
CONTROL
BOARDS
MOD.800
MOD. WCS810
WATERTIGHT HAND HELD
CHAIN COUNTER
MOD. CHC 1102 M
REMOTE RADIO CONTROLS
