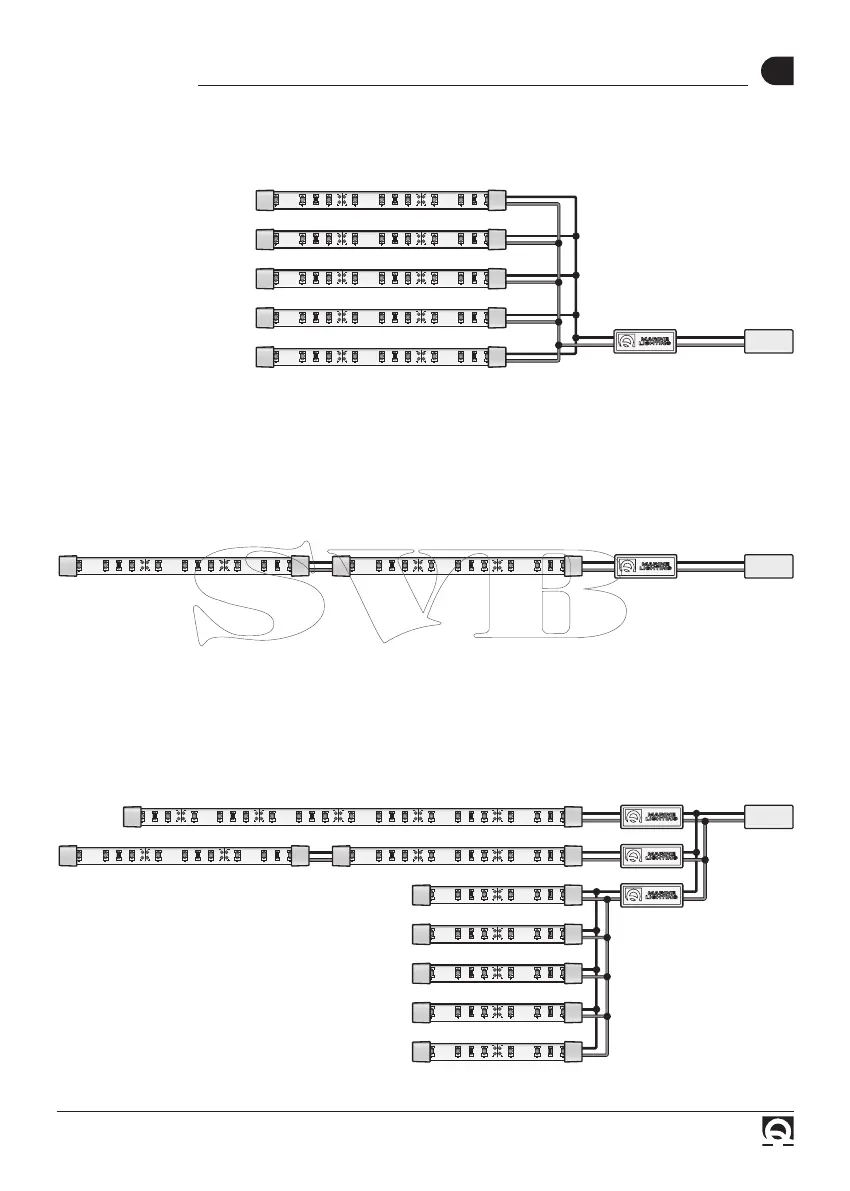

EXAMPLE 1
Five pieces of one-meter STRIP LED 12V are connected in parallel to a STRIP LED DRIVER, reaching the maximum capacity.
EXAMPLE 2
Two pieces of 2.5 meters STRIP LED 12V are connected in series to a STRIP LED DRIVER, reaching the maximum capacity.
EXAMPLE 3
The need to connect more than 5 meters of STRIP LED 12V, in this example of 15 meters, makes the use of two more STRIP
LED DRIVERS necessary. They are connected by the 5 meters of STRIP LED 12V and a STRIP LED DRIVER, two 2.5 meter pieces
to the second STRIP LED DRIVER and five 1 meter pieces to the third STRIP LED DRIVER.
12 VDC
black NEG
red POS
12 VDC
black NEG
red POS
12 VDC
black NEG
red POS
DRIVER
STRIP LED
DRIVER
STRIP LED
DRIVER
STRIP LED
