8
QUICK SPA
CHARACTERISTICS / INSTALLATION
EN
STRIP LED 12V - REV001B
READ CAREFULLY BEFORE CONNECTING THE STRIP LED
Quick
®
STRIP LED 12V is readily supplied for 12V battery systems.
Quick S.p.A. will not be responsible in case of wrong connection and misuse of this instrument.
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE STRIP LED.
IN CASE OF DOUBT, CONTACT YOUR DEALER OR QUICK
®
CUSTOMER SERVICE.
THE PACKAGE CONTAINS: Strip LED - conditions of warranty - the manual of installation and use.
F
IMPORTANT
ALWAYS RESPECT POLARITY AS SHOWN IN THE PRODUCT LABEL:
RED WIRE CONNECTED TO POSITIVE POLE AND BLACK WIRE CONNECTED TO THE NEGATIVE POLE.
Quick
®
STRIP LED 12V can be cut approximately every 5 centimeters between the two pairs of copper dots that occur
after every three LEDs.
L14 L15R5 L16 L17 L18R6
L11 L12R4 L13
L10
10
11 12 13 14 15 16 17 18 19
6 7 8 9

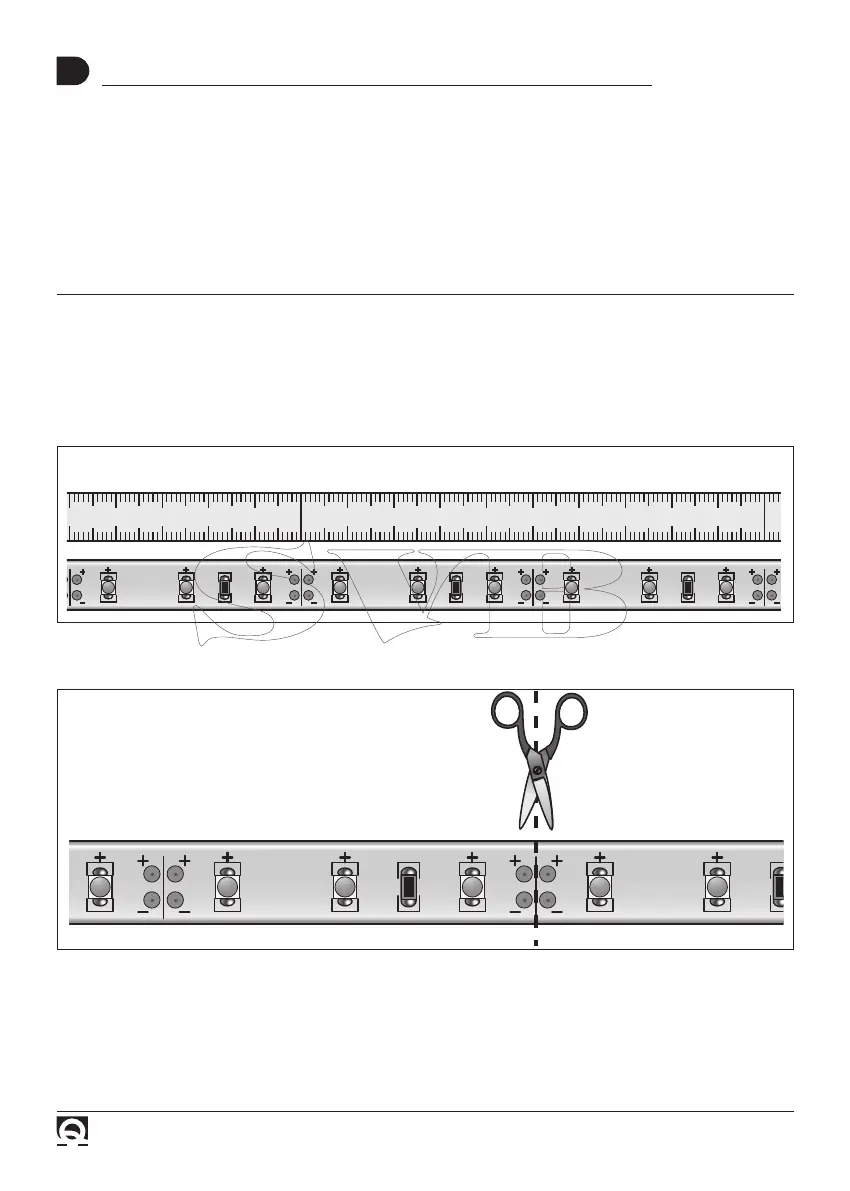

FIG. 1
Piece of a Quick STRIP LED 12V
L14 L15R5 L16
L12
L13 L17
FIG. 2
Performing the correct cut for the Quick STRIP LED 12V
The Strip shall be cut exactly between the two pairs of red copper plates, along the line separating them, perpendicular to
the length of the product.
F
IMPORTANT
The maximum length of STRIP LED which can be supplied with 12V power is 5 meters with one STRIP LED DRIVER.
if the product is purchased in a 10 meter reel, and the customer plans to have a continuous light line, the STRIP LED should
be cut in two halves, and every 5 meters piece should be supplied separately.
See the application-oriented drawings at the pag.11.
