Quick STRIP LED 12V User Manual

10
QUICK SPA
EN
STRIP LED 12V - REV001B
Quick
®
reserves the right to modify the technical characteristics of the equipment and the contents of this manual
without prior notice.
F
In case of discordance or errors in translation between the translated version and the original text in the Italian
language, reference will be made to the Italian text.
F
WARRANTY
Failure to comply with the prescriptions listed on this document will void the Warranty.

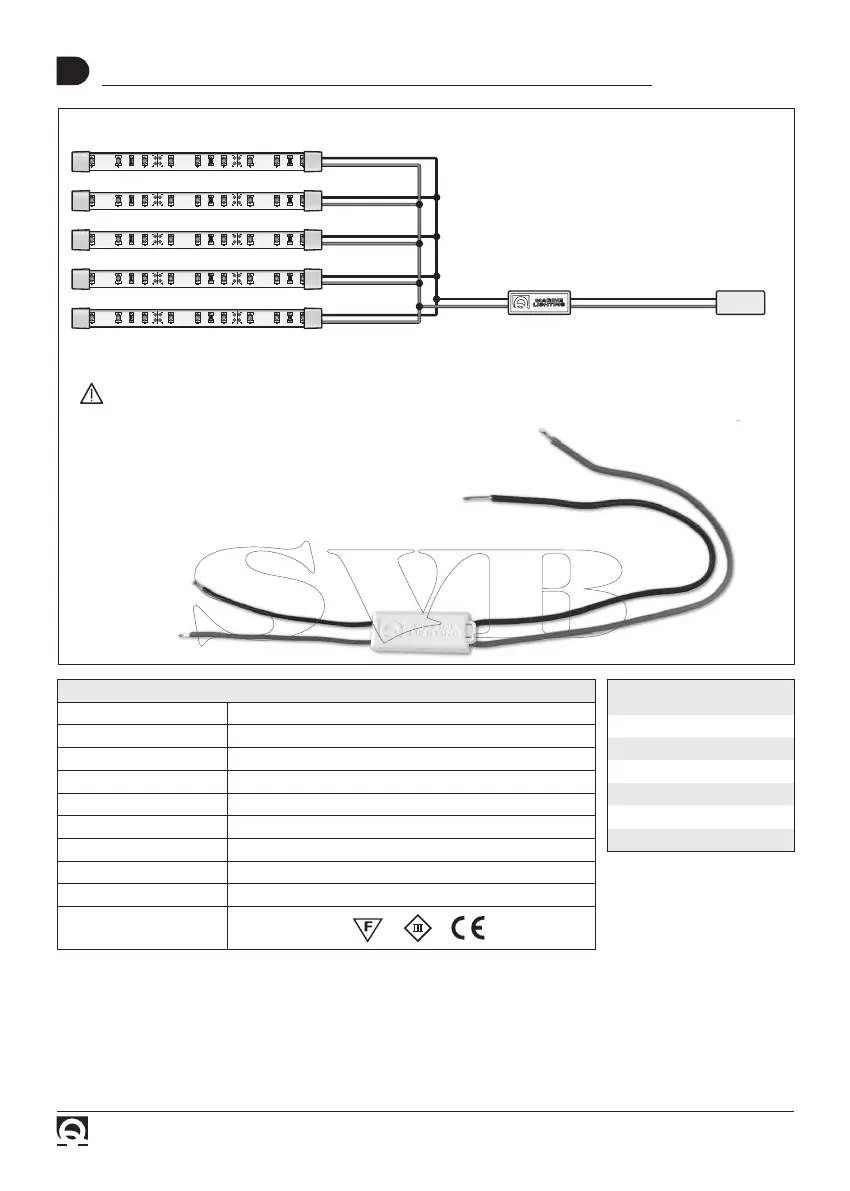

WIRING DIAGRAM STRIP LED 12V with DRIVER STRIP LED
12 VDC
black NEG
red POS
DRIVER
STRIP LED
RESPECT POLARITY.
ATTENTION: the side with shorter wires goes to Strip LED, the side with longer wires goes to Power Supply.
STRIP LED
POWER
DRIVER STRIP LED
WIRING DIAGRAM / CHARACTERISTICS
CHARACTERISTICS
Voltage system
12 V
Light source
LED
Operating voltage 10 - 15 Vdc
Power consumption 4,8 W/m @ 12 V
Ampère consumption 0,4 A/m @ 12V - 0,6 A/m @ 15V
Led protection Spike protected ± 500 V
Polarity Yes
Protection IP 65
Material Sheath in UV-resistant silicone
Certifications
Conversion from decimal
to fractional inches
5 cm = 1” 31/32 in
1 m = 39” 3/8 in
2,5 m = 98” 7/16 in
5 m = 196“ 27/32 in
10 m = 393” 45/64 in
15 m = 590” 35/64 in
