INSTALLATION
GB
TCD1044 D - REV002A
INSTALLATION OF THE REMOTE CONTROL
The remote control complies with EMC standards (electromagnetic compatibility) but requires correct installa-
tion to avoid compromising its performance and that of the surronding instruments.
For this reason the remote control must be positioned at a distance of at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any radio transmitters SSB.
• 2 m away from the path of the radar beam.

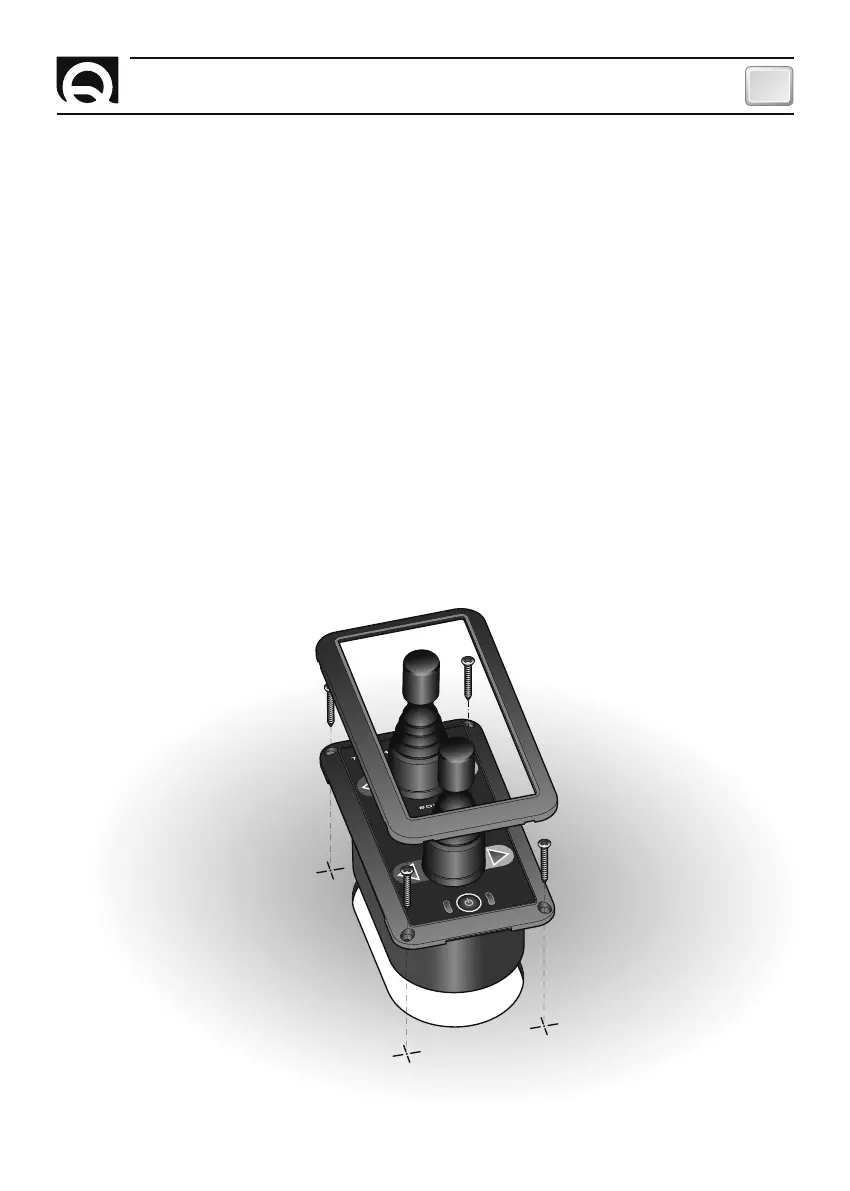

After choosing where to position the remote control, proceed as follows:
• Position the drilling template (provided) on the surface where the remote control will be installed.
• Mark the centre of each hole.
• Drill the hole for the back of the remote control with a 63 mm bit and cut along the perimeter indicated.
• Remove the template and any burrs present in the holes.
• Insert the remote control into its seat.
• Fix the remote control to the panel with four countersunk head screws (not provided).
• Position the frame on the remote control.
