17
GB
TCD1044 D - REV002A
OPERATING
REMOTE CONTROL FUNCTIONING

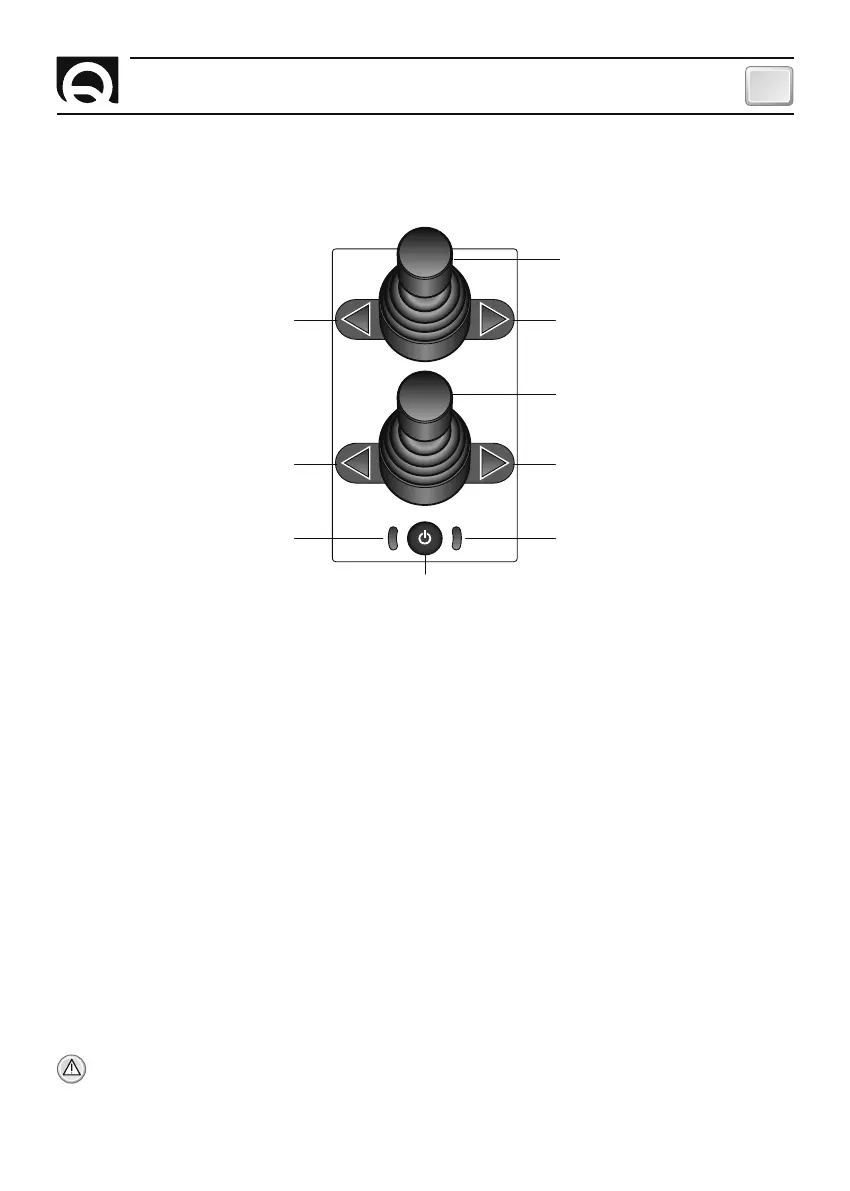

The user interface of the is composed of one enabling button, 2 joystick, 2 enabling leds and 4 direction leds.
ENABLING LED ENABLING LED
ENABLING BUTTON
Enabling button
The button enables or disables the remote control.
Bow Joystick
When the bow joystick is moved to the right at the end of its stroke, it moves the bow of the boat to the right.
When the bow joystick is moved to the left at the end of its stroke, it moves the bow of the boat to the left.
Stern Joystick
When the stern joystick is moved to the right at the end of its stroke, it moves the stern of the boat to the right.
When the stern joystick is moved to the left at the end of its stroke, it moves the stern of the boat to the left.
Enabling leds
The enabling leds indicate the enabled/disabled state of the remote control.
Direction leds
The direction leds indicate the movement of the boat to the right or left.
All leds are also used to signal any errors or problems.
Use the switch on the supply line to switch the remote control on and off. Once the supply has been connected,
the remote control will test the leds. For the led test, all the leds will come on simultaneously for 2 seconds. If
no errors or problems are detected, the remote control will then go to the disabled state (see remote control
disablement).
WARNING:
practice controlling the thrusters in open water, to avoid damaging the boat with accidentally
wrong manoeuvres.
BOW JOYSTICK
STERN JOYSTICK
BOW LEFT DIRECTION LED BOW RIGHT DIRECTION LED
STERN LEFT DIRECTION LED STERN RIGHT DIRECTION LED
