III. Your Chair and Its Parts

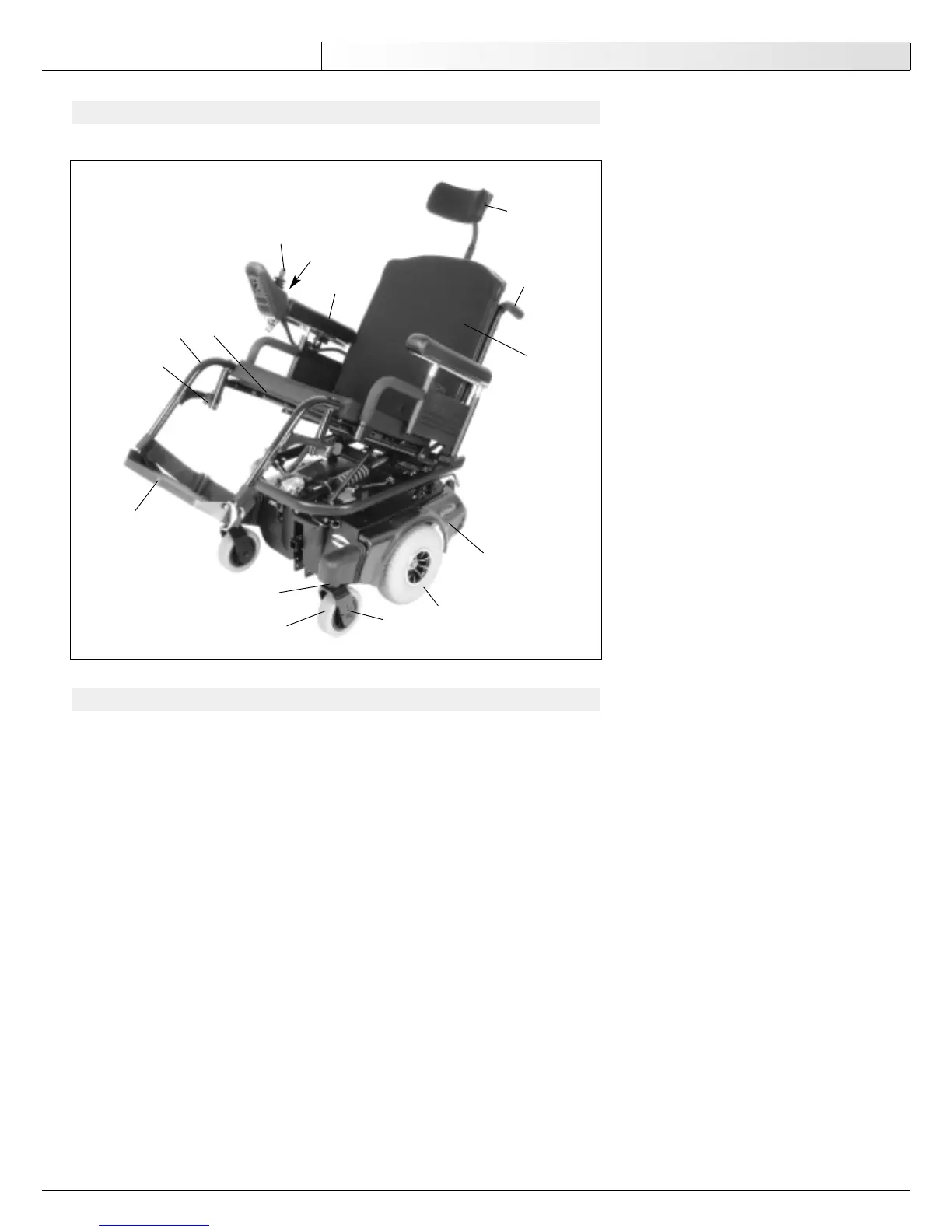

III. YOUR CHAIR AND ITS PARTS
1. Push Handle
2. Dual Post, Height-Adjustable Armrest
3. VSI control
4. Seat Pan
5. Swing-Away Footrest Latch Plate
6. Swing-Away Footrest Hanger
7. Angle-Adjustable Footplate
8. Seat Back
9. Shroud
10. M11: 10" Drive Wheels
F11: 14" Drive Wheels
11. Caster Housing
12. 6" Solid Casters
13. Caster Fork
14. Headrest
15. Tilt Toggle Switch (not shown)
Weight
F11: 178.5 lbs M11: 194.5 lbs
with swing-away footrests and without
batteries
Drive Wheels
F11: 14" x 3" M11: 10" x 3"
Tire types
Standard - pneumatic
Option - airless insert, solid
Joystick
Standard - integral (right-hand or left-
hand mount)
Option - remote (left-hand or
right-hand mount)
Option - swing-away retractable joystick
Batteries
(2 batteries required to operate chair)
F11: Option - GP 24 deep cycle gel,
22 NF deep cycle gel
M11: Option - 40 Ahr AGM
U1 deep cycle gel
Battery Charger
Standard - on-board charger
Option - off board charger
Colors
Refer to current order form
Chair Parts
Standard - black
Seat Frame Dimensions
Seat Frame width: standard - 14"-20"
Seat depth: 14"-20" adjustable
Solid seat back
Aluminum seat pan
Optional cushions: Jay
®
Cushions
CG Tilt
0° - 50°
3° - 53°
Backrest
Standard - Non-folding: 15" - 20"
Straight Backpost - standard
Footrest
Standard - Swing-away with angle-
adjustable footplates
and heel loops
Option - elevating legrests
and multiposition
Casters
Standard - 6" solid
Armrests
Standard - dual post flip back
Option - height-adjustable dual post or
single post with desk or full length
waterfall pads or standard armpads
Swing-Away Lateral Thoracic Supports
Option - Curved
Option - Straight
Headrest
Standard - 8" x 4.5" or 9" x 4.5" head-
rest pad
All features may not be available with
some chair setups or in conjunction with
another chair feature. Please consult your
supplier for more information. Your autho-
rized supplier can also provide you with
more information on accessories.
QUICKIE FREESTYLE C.G. TILT
1
3
15
6
7
8
9
11
14
12
13
4
5
10
2
Mini (M11)
