5.8.4 Standard Arm pad Position Adjustment
To Adjust the Arm Pad Depth:
1. Using a 5.0 mm Allen Key, (Hexagon Wrench), loosen
the two arm pad adjustment screws (A).
2. Slide the arm pad forward or backward as required.
3. Retighten both adjustment screws (A). Use 10 N/m or
88.5 in/lb of torque, (Fig.5.30, 5.31).
WARNING!
Ensure the two Allen screws are fully tightened prior to
use, especially when transporting your wheelchair .
CAUTION!
Please check that the new arm rest position does not
interfere with any seat positioning settings.

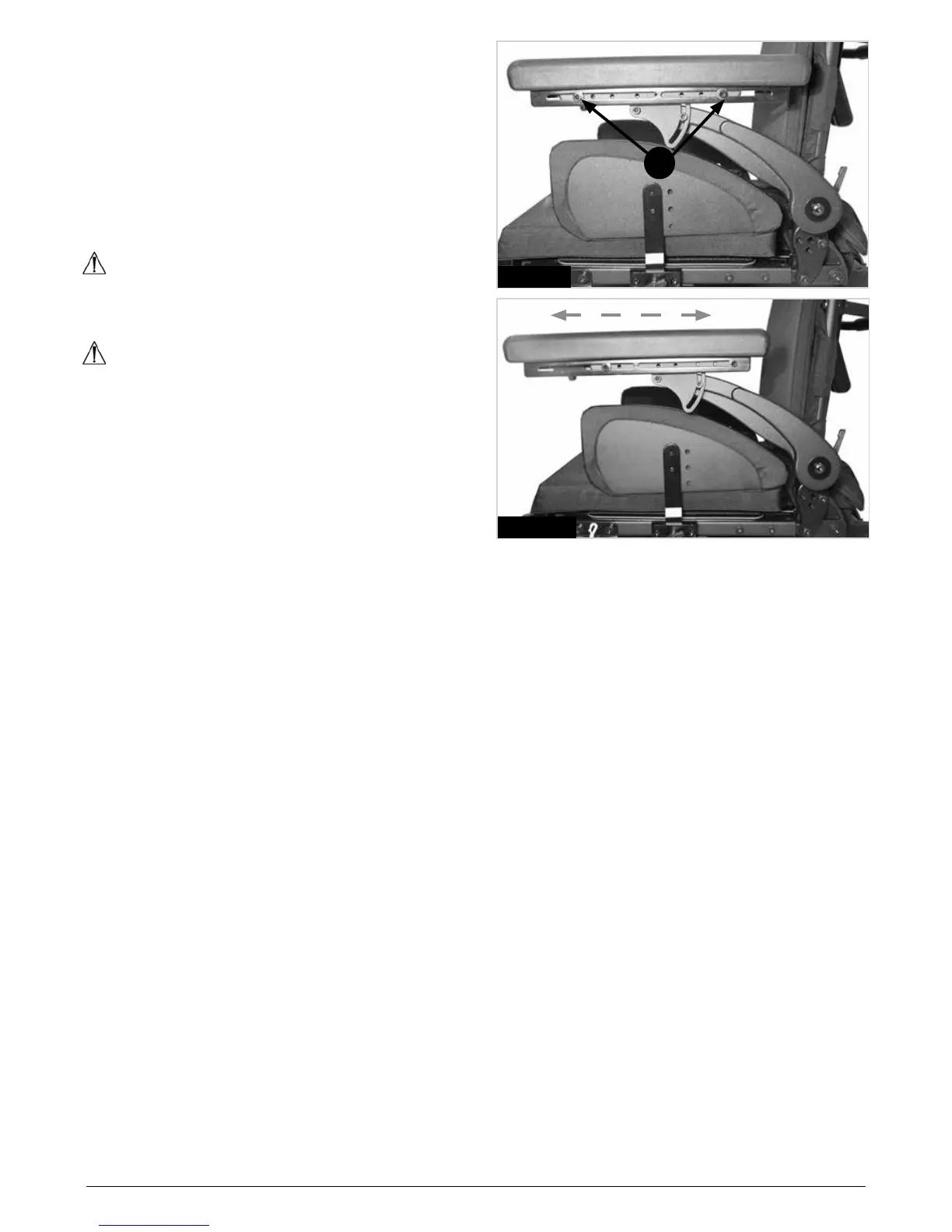

Fig. 5.30
Fig. 5.31
A
