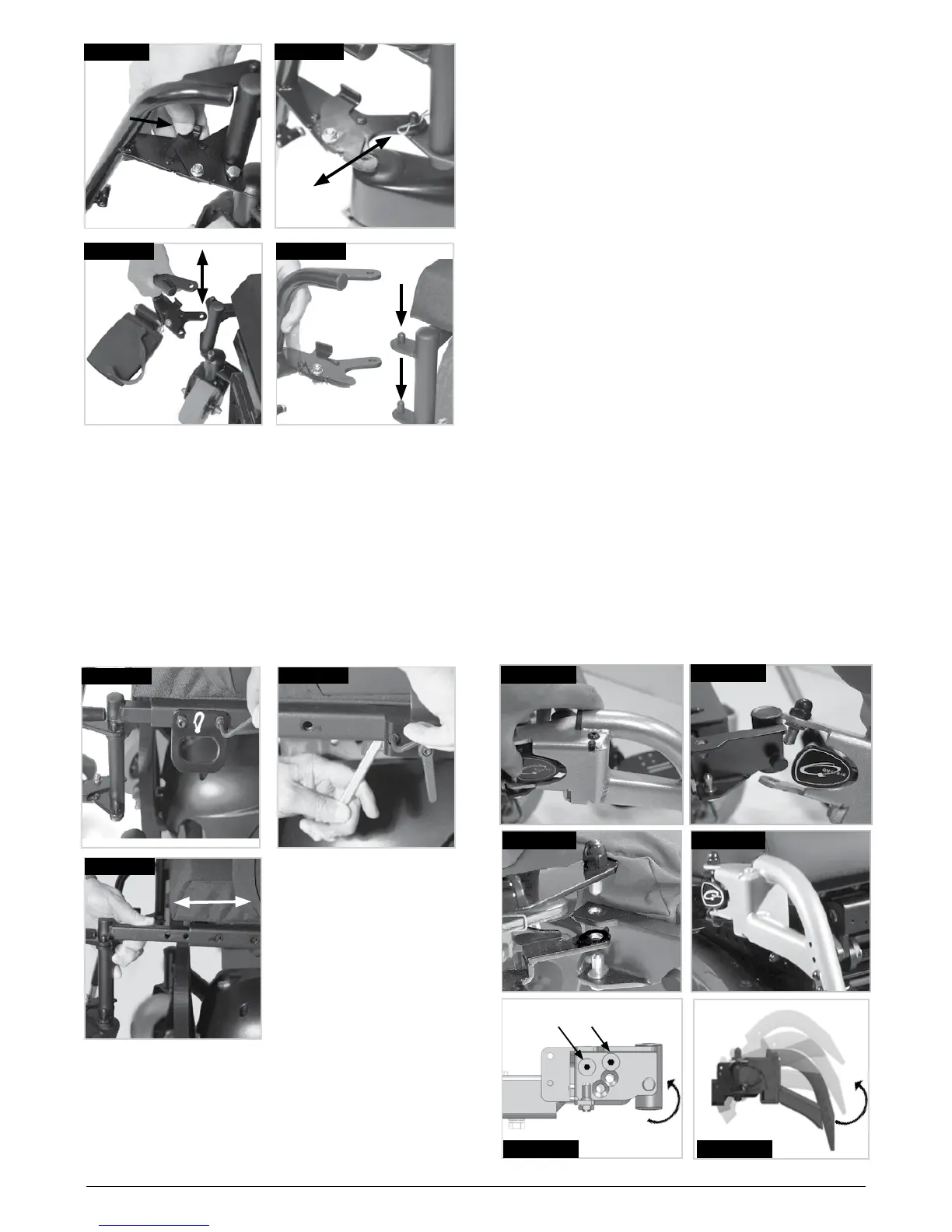

5.9.3 Leg rest removal
To swing away the leg rest:
• Depress the retaining catch and swing the leg rest
out, (Fig.5.39).
• Lift the leg rest up and off if removal is required,
(Fig.5.40).
To refit:
• Line up the holes and studs, (Fig.5.41).
• Drop the leg rest into the receiver.
• Push the leg rest inwards until it clicks shut,
(Fig.5.42).
To adjust the angle: (Fig 5.43-5.44).
• Use a 5.0mm Allen key and 13.0mm spanner to
loosen stud A,
• Remove stud B.
• Tilt the receiver until the required hole lines up with
the top hole.
• Refit the stud
