QuickJack™ Portable Car Jack 29 P/N 5900263 — Rev. B6 —September 2023

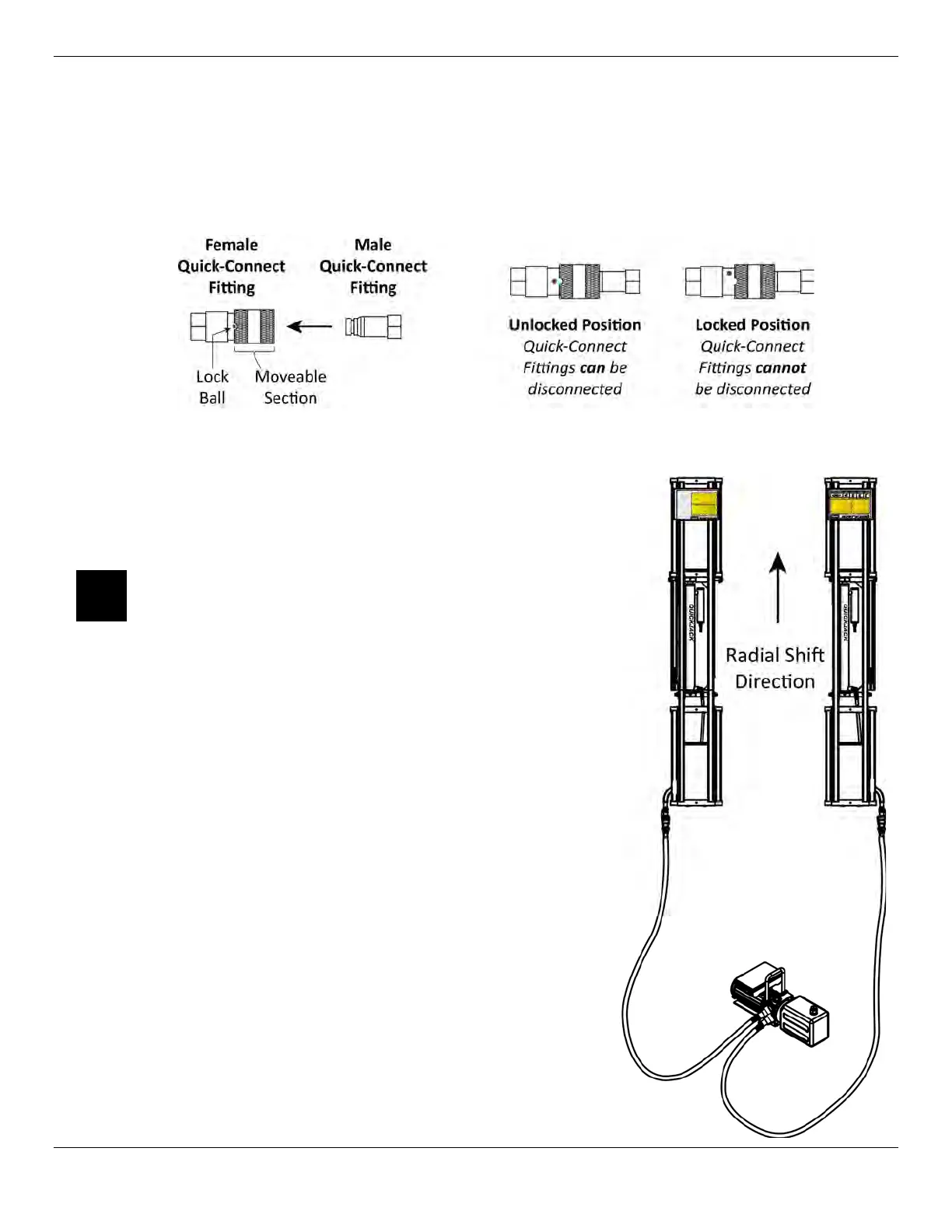

3. To connect and lock: Push the Male Quick-Connect Fitting into the Female Quick-Connect
Fitting, then turn the Moveable Ring on the Female Connector until the Lock Ball is not opposite
the Notch.
4. To unlock and disconnect: Turn the Moveable Ring on the Female Connector until the Lock
Ball is opposite the Notch, then pull back on the Moveable Section and pull out the Male Quick-
Connect Fitting.
Quick-Connect Couplings provide a fast, reliable method to connect hydraulic hoses to the QuickJack, but
be advised that damage to mating surfaces, dirt, and poor maintenance can defeat the couplings’ fluid-tight
seal.
Read and act on the Quick-Connect best practices
listed in the Maintenance section!
Connect the Long Hydraulic Hoses
Connect one end of a Long Hydraulic Hose to the Male Quick-
Connect on the Short Hydraulic Hose exiting one of the
Frames. The other end of the Long Hydraulic Hose connects to
the Male Quick-Connect on the Power Unit. Repeat the
connections on the remaining Frame and Long Hydraulic Hose.
18
