Connect the Power Unit to a Power Source
Your Power Unit must also be located near an appropriate power source. Refer to the manufacturer’s
data tag on the QuickJack to confirm the Power Unit’s Voltage/Current requirements on your specific
unit before connecting to electrical power.
Power Sources for Model Series 5000, 6000 and 7000 Power Units
Connect your QuickJack to an appropriate power source.
110 VAC Power Unit 60 Hz. 1 Ph. at 10 Amps min.
208-240 VAC Power Unit 50/60 Hz. 1 Ph. At 5 Amps min.

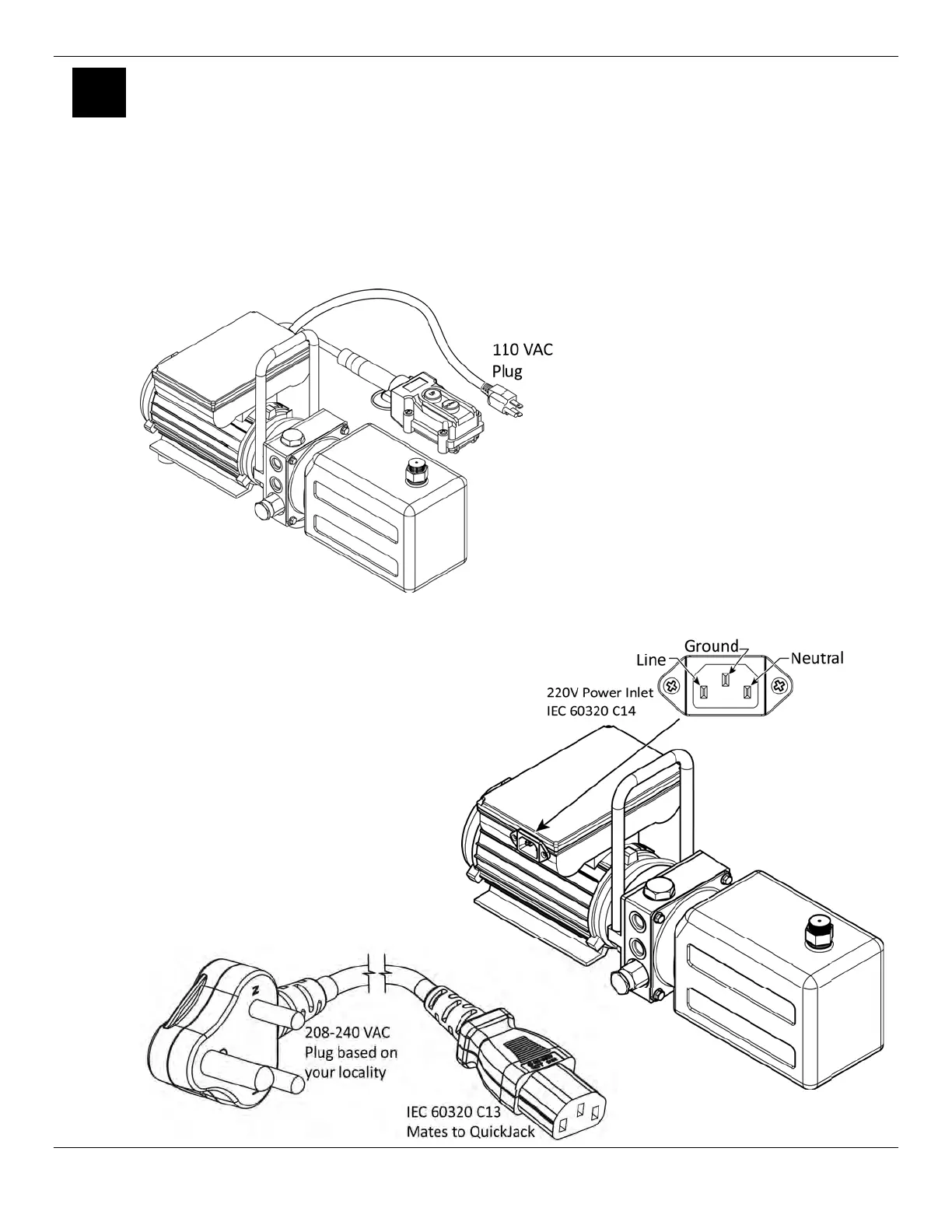

208 - 240 VAC Power Units include an
IEC 60320 C14 Power Inlet Connector.
Due to the wide variety of 220
VAC plug configurations a mating
Power Cord is not included with
the QuickJack.
You must purchase a cord with a mating
plug/receptacle configured to operate in
your locality. A Type D plug is illustrated
below as an example. The
interconnecting cord must be
rated for 250 VAC at 5 Amps
minimum.
