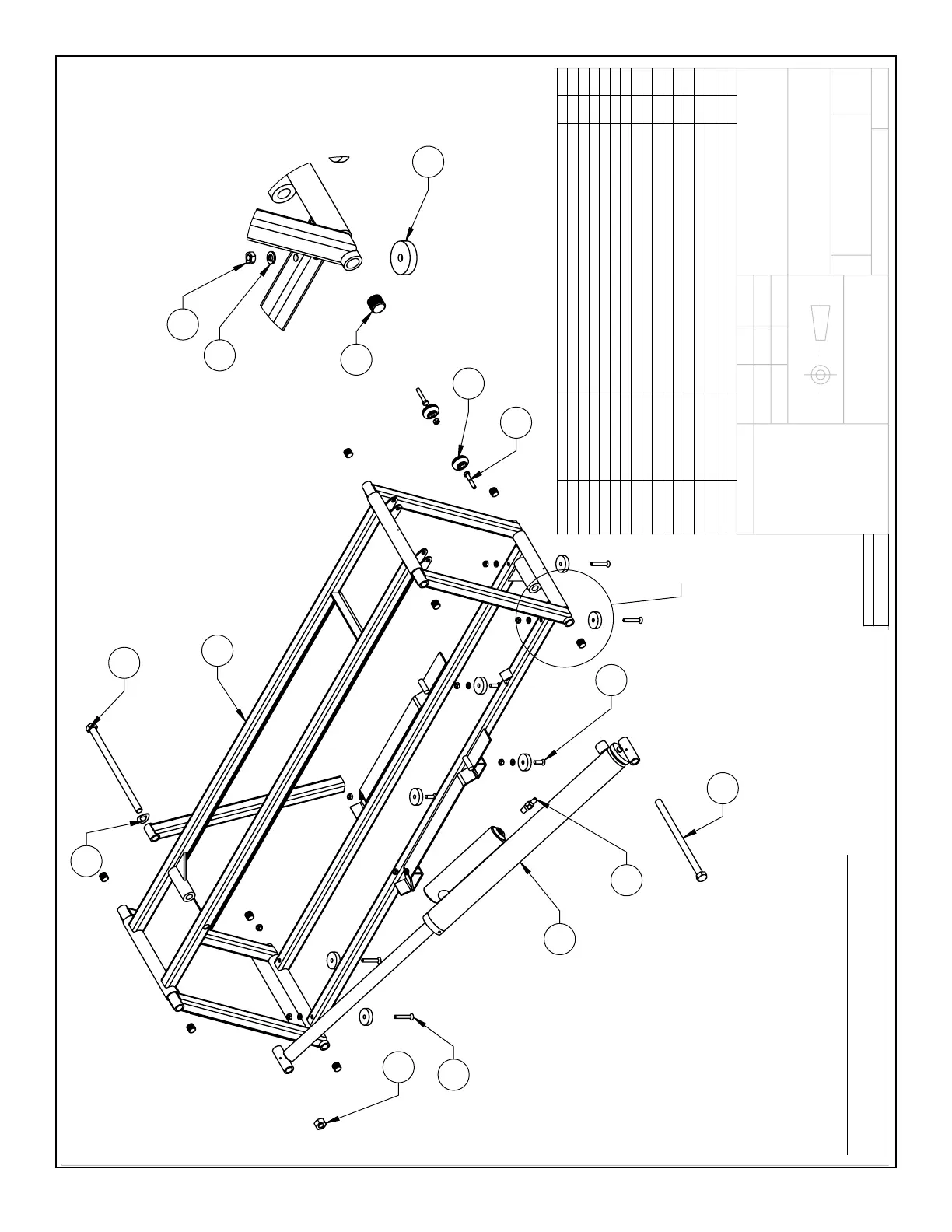

QuickJack BL-3500 - Page 26

26
DIMENSIONS ARE IN MM
☺
A
1
4
5
6
13
3
9
14
15
8
16
DETAIL A
SCALE 1 : 4
11
10
7
12
NEXT ASSEMBLY
5260110
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
ADDED 5545531, UPDATED BOM REVISION
10/17/2014
TM
00655
C
UPDATED BOM REVISION
10/30/2014
TM
00671
D
UPDATED BOM REVISION
3/10/2015
VB 00691
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600841
BL-3500 FRAME WELDMENT
1
C
2 5600723
BL-3500 SAFETY ARM WELDMENT
1
D
3 5600839
BL-3500/5000XL CYLINDER WELDMENT
1
C
4 5530313
HHB M12 x 1.75 x 200
1
-
5 5535012
NUT M12x1.75 NL
2
-
6 5530246
HHB M12 x 1.75 x 220
1
-
7 5716177
BL SERIES PLASTIC FOOT
8
C
8 5530247
FHPS M6 x 1 x 40
4
-
9 5530244
FHPS M6 x 1 x 20
4
-
10 5545026
WASHER M6 x Ø12 SL
10
-
11 5535357
NUT M6 x 1.0 NL
10
-
12 5716179
PLASTIC TUBE COVER Ø12mm
8
-
13 5550055
FTG NPL -02 STM x -02 NPT
1
-
14 5716192
BL SERIES PLASTIC WHEEL
2
A
15 5530027
HHB M6 x 1.0 x 35
2
-
16 5545531
WASHER M12 x 24 WAVE
1
-
