QuickJack BL-3500 - Page 27

27

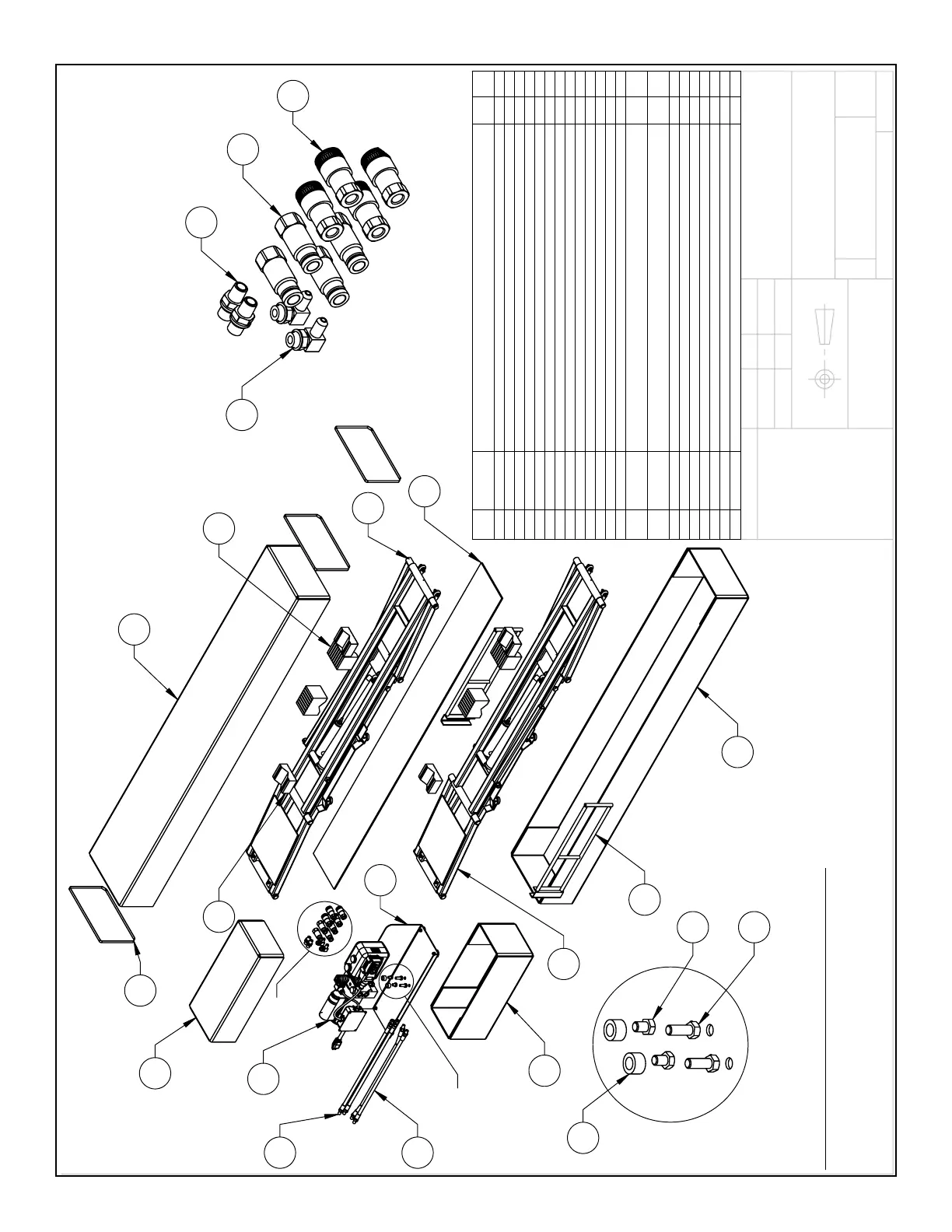

DIMENSIONS ARE IN MM
☺
A
B
6 7
2
4
1
8
10
9
11
5
3
12 13
17
20
DETAIL A
SCALE 1 : 4
15
14
16
19
DETAIL B
SCALE 1 : 4
21
18 22
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5781306
BL-5000XL/5000 BOX BOTTOM
1
C
2 5215648
BL-5000 FRAME ASSEMBLY, R.H.
1
D
3 5215649
BL-5000 FRAME ASSEMBLY, L.H.
1
D
4 5781308
BL-5000XL/5000 BOX MIDDLE SHEET
1
C
5 5781307
BL-5000XL/5000 BOX TOP
1
C
6 5300860
BL SERIES 38mm (1.5") RUBBER PAD
4
C
7 5300865
BL SERIES 75mm (3") RUBBER PAD
4
C
8 5600725
BL SERIES HANDLE WELDMENT
2
D
9 5215578
BL SERIES PUMP CARRIER ASSEMBLY
1
F
10 5781291
BL SERIES POWER UNIT CARRIER BOX, BOTTOM
1
C
11 5781292
BL SERIES POWER UNIT CARRIER BOX, TOP
1
C
12 5570203
BL SERIES TWIN HOSE ASSEMBLY Ø6.4 x 3810mm
1
C
13 5570202
BL SERIES HOSE ASSEMBLY Ø6.4 x 603mm
2
C
14 5550031
FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR COUPLER
FEMALE; NON SPILL DESIGN
4
-
15 5550032
FTG NPL-04 NPT FX1/4 QUICK-CONNECTOR COUPLER
MALE; NON SPILL DESIGN
4
-
16 5550103
FTG ELB -04 JIC -06 ORB
2
-
17 5585426
110V AC POWER UNIT
1
-
18 5530262
HHB 3/8-16 x 1/2"
2
-
19 5550093
FTG NPL -06 ORB x -04 NPT
2
-
20 5930575
.50" PLASTIC STRAPPING
3
A
21 5716027
BL SERIES PLATIC WUXI POWER UNIT ADAPTER
2
B
22 5530245
HHB 3/8"-16 X 1"
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
REPLACED 5736018 WITH 5716027, 5530783
WITH 5530245, UPDATED BOM REVISIONS
10/30/2014
TM
00671
E
UPDATED BOM REVISIONS
2/23/2015
MR
00682
F
UPDATED BOM REVISION
3/10/2015
VB 00691
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215650
BL-5000 PACKAGING
01/31/2014
DO NOT SCALE DRAWING
1:18
SCALE:
THIRD ANGLE PROJECTION
TM
03/03/2015
ASSEMBLE ITEMS AS SHOWN
1.
HOSES SHOWN IN REPRESENTATIONAL FORM
2.
