28

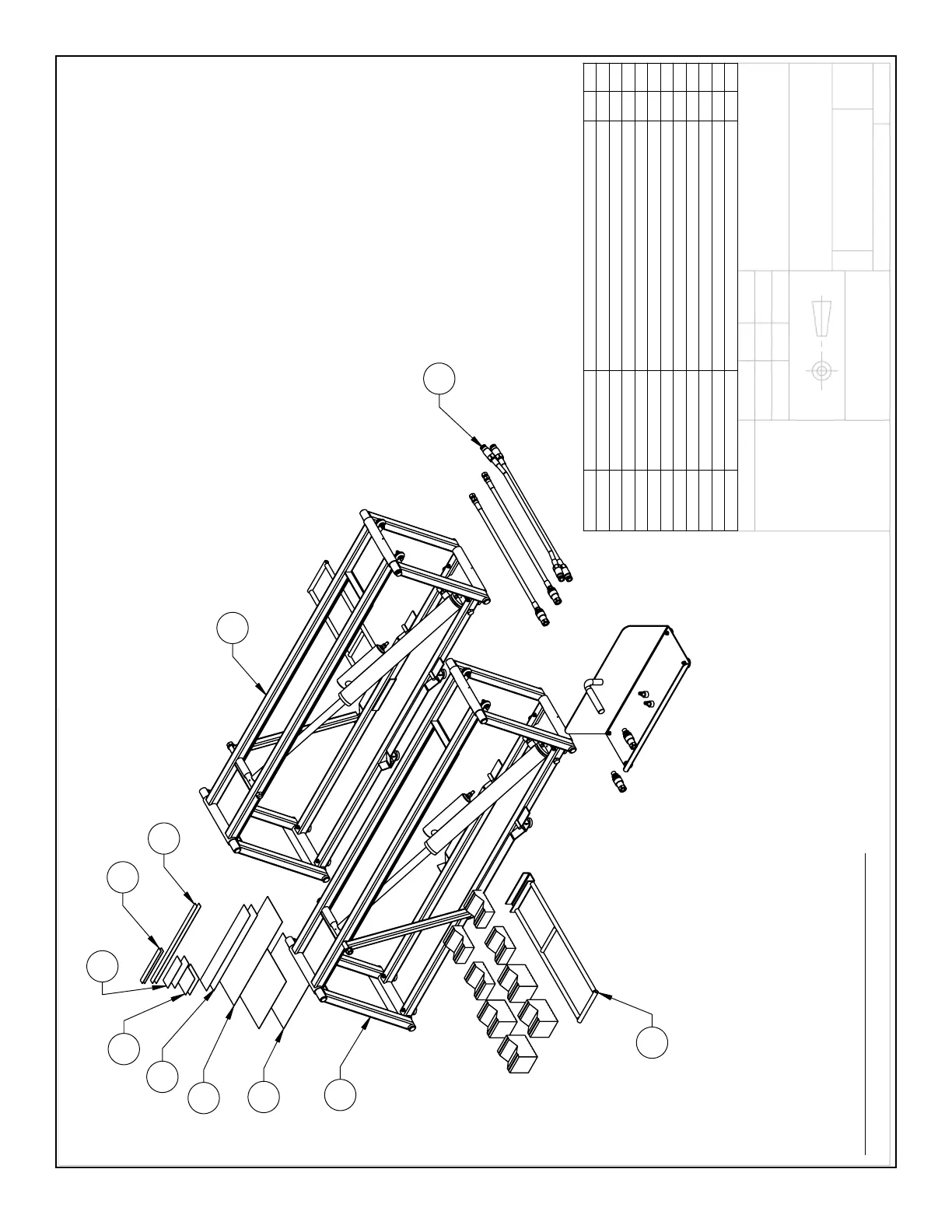

DIMENSIONS ARE IN MM
☺
3
2
4
1
5
6
7
8
9
10
11
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5250005
BL SERIES PARTS BOX
1
E
2 5215648
BL-5000 FRAME ASSEMBLY, R.H.
1
D
3 5215649
BL-5000 FRAME ASSEMBLY, L.H.
1
D
4 5600725
BL SERIES HANDLE WELDMENT
2
D
5 5905730
BL SERIES SAFETY BAR WARNING LABEL
2
-
6 5905932
BL-5000XL CAUTION LABEL
2
-
7 5905933
BL-5000XL WARNING INSTRUCTION LABEL
1
-
8 5905745
BL SERIES CYLINDER DECAL
2
-
9 5905750
BL SERIES CAUTION, KEEP HANDS CLEAR
2
-
10 5905765
BL SERIES DO NOT DRIVE ON LABEL
2
-
11 5905770
BL SERIES DANGER / WARNING LABEL
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
D
UPDATED BOM REVISIONS
10/30/2014
TM
00671
E
UPDATED BOM REVISION
2/20/2015
MR
00682
F
REPLACED 5905735 WITH 5905932, REPLACED
5905840 WITH 5905933, UPDATED BOM REVISION
3/10/2015
VB
00691
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5260238
BL-5000 PRODUCTION
LIFT VER B
01/28/2014
DO NOT SCALE DRAWING
1:14
SCALE:
THIRD ANGLE PROJECTION
VB
03/03/2015
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
