DIMENSIONS ARE IN MM
☺
A
1
4
5
6
2
12
13
9
14
15
3
16
DETAIL A
SCALE 1 : 4
11
10
8
7
12
NEXT ASSEMBLY
5260238
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
ADDED 5545531, UPDATED BOM REVISION
10/20/2014
TM
00655
C
UPDATED BOM REVISION
10/30/2014
TM
00671
D
UPDATED BOM REVISION
3/10/2015
VB
00691
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600834
BL-5000 FRAME WELDMENT
1
D
2 5600840
BL-5000 CYLINDER WELDMENT
1
A
3 5600833
BL-5000 SAFETY ARM WELDMENT
1
A
4 5530313
HHB M12 x 1.75 x 200
1
-
5 5535012
NUT M12x1.75 NL
3
-
6 5746670
DOUBLE THREADED ROD M12 x 1.75 x 250
1
-
7 5716177
BL SERIES PLASTIC FOOT
8
C
8 5530293
FHPS M6 x 1 x 50
4
-
9 5530244
FHPS M6 x 1 x 20
4
-
10 5545026
WASHER M6 x Ø12 SL
10
-
11 5535357
NUT M6 x 1.0 NL
10
-
12 5716198
PLASTIC TUBE COVER Ø19mm
8
-
13 5550055
FTG NPL -02 STM x -02 NPT
1
-
14 5716192
BL SERIES PLASTIC WHEEL
2
A
15 5530027
HHB M6 x 1.0 x 35
2
-
16 5545531
WASHER M12 x 24 WAVE
1
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215648

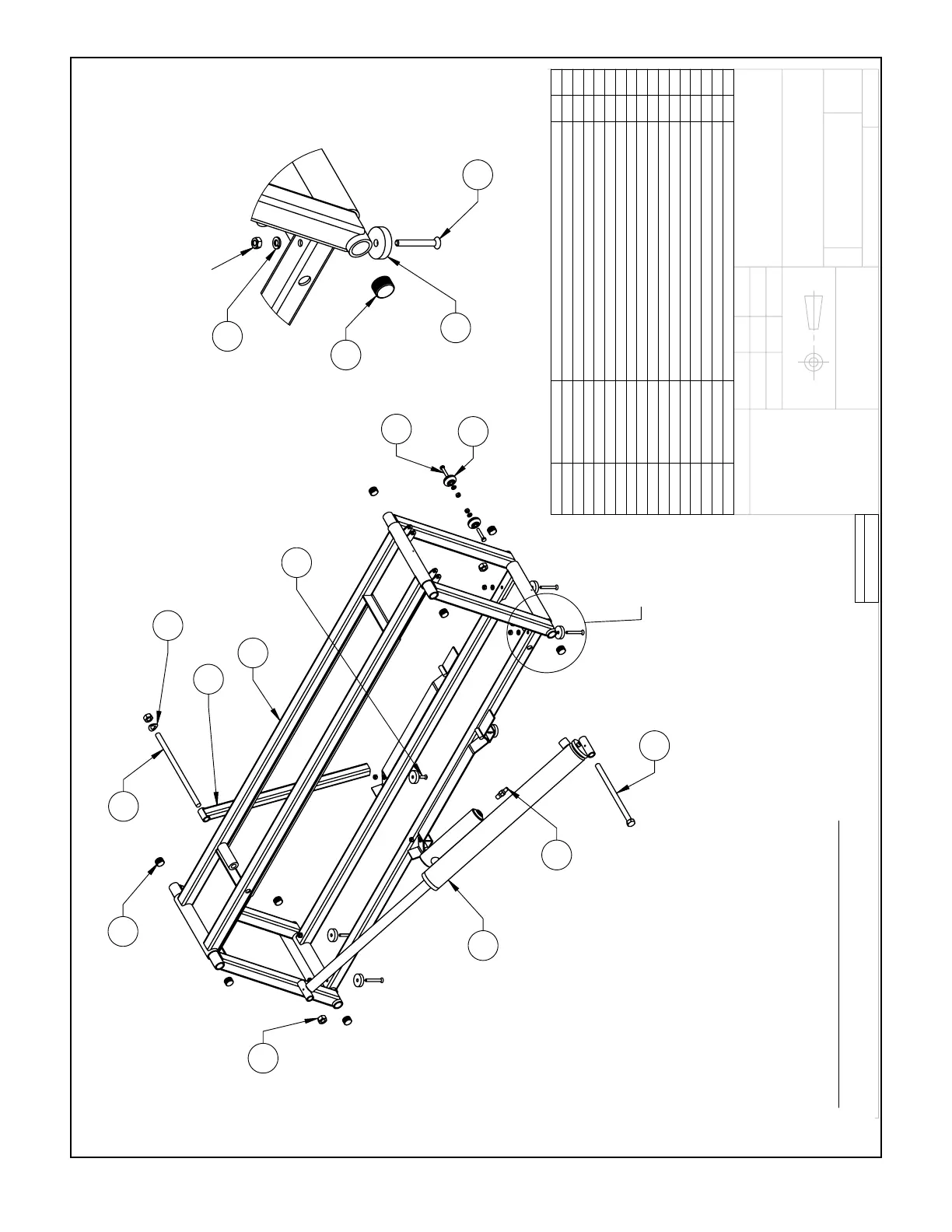

BL-5000 FRAME ASSEMBLY,
R.H.
01/28/2014
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
