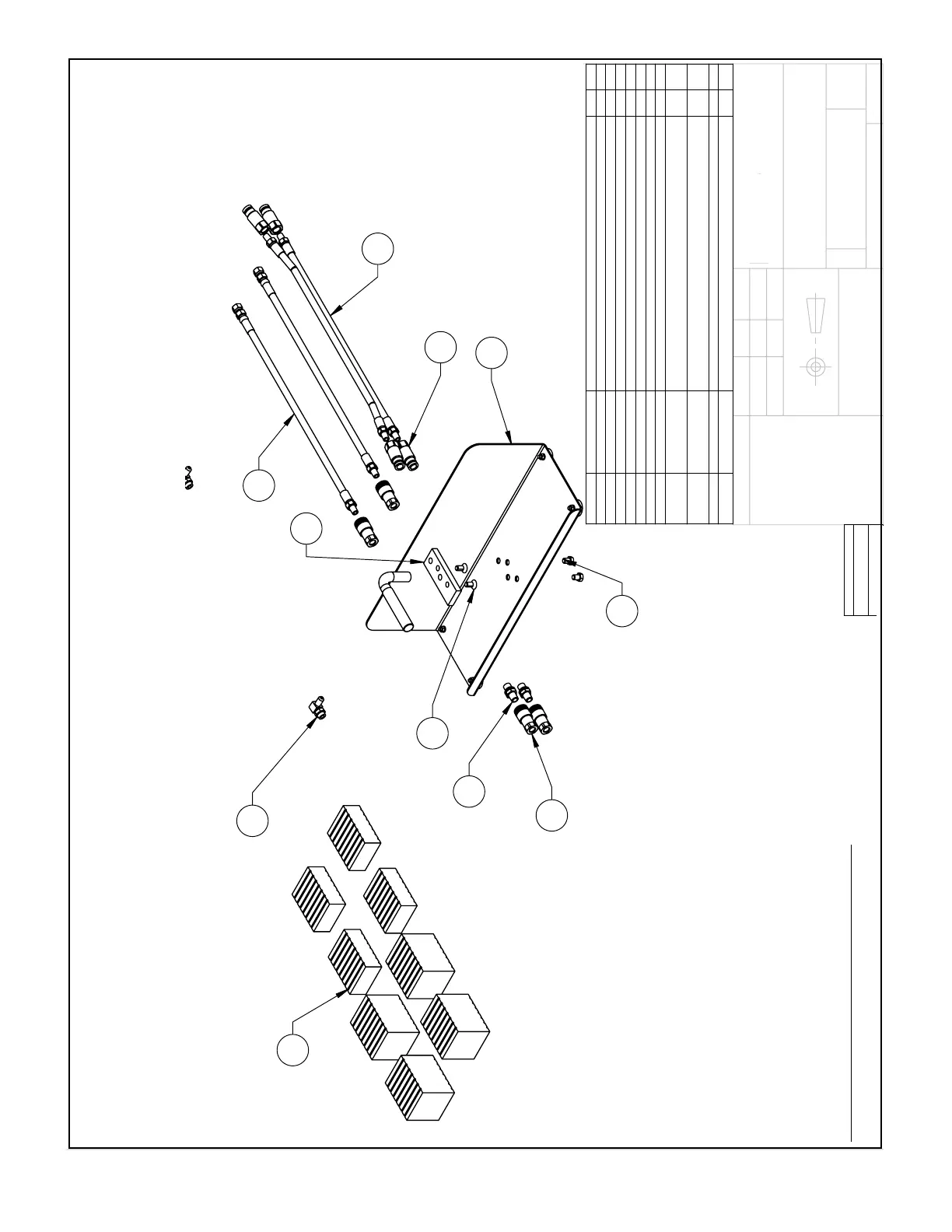

QuickJack BL-3500 - Page 30

30
DIMENSIONS ARE IN MM
☺
3
2
9
5
1
7
8
6
4
10
11
NEXT ASSEMBLY
5260110 5260238
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5215578
BL SERIES PUMP CARRIER ASSEMBLY
1
E
2 5570203
BL SERIES TWIN HOSE ASSEMBLY Ø6.4 x 3810mm
1
C
3 5570202
BL SERIES HOSE ASSEMBLY Ø6.4 x 603mm
2
B
4 5174675
BL SERIES RUBBER PAD KIT
1
B
5 5530262
HHB 3/8-16 x 1/2"
2
-
6 5550103
FTG ELB -04 JIC -06 ORB
2
-
7 5550093
FTG NPL -06 ORB x -04 NPT
2
-
8 5550031
FTG NPL-04 NPT F x 1/4 QUICK-CONNECTOR
COUPLER FEMALE; NON SPILL DESIGN
4
-
9 5550032
FTG NPL-04 NPT FX1/4 QUICK-CONNECTOR
COUPLER MALE; NON SPILL DESIGN
4
-
10 5736018
WUXI POWER UNIT ADAPTER; BL SERIES
1
A
11 5530783
FHPS 3/8-16 x .75
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
10/23/2013
TM
00633
B
UPDATED BOM REVISION
03/05/2014
DB
00644
C
REPLACED 5550065 WITH 5550032, 5550075
WITH 5550031, ADDED 5736018 & 5530783
10/17/2014
TM
00655
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5250005
BL SERIES PARTS BOX
10/23/2013
DO NOT SCALE DRAWING
1:8
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
NOTE: UNLESS OTHERWISE SPECIFIED
.
