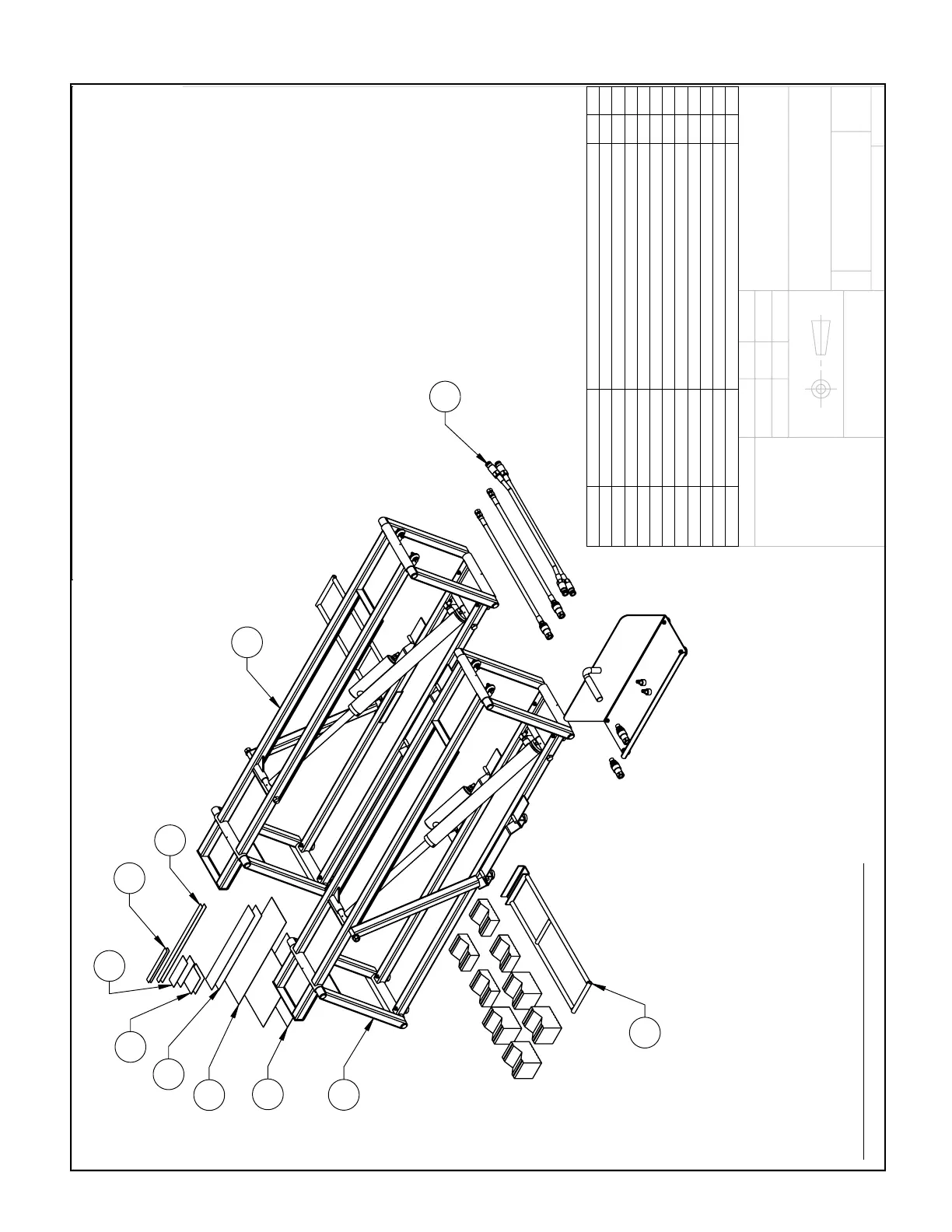

ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5250005
BL SERIES PARTS BOX
1
E
2 5215662
BL-5000XL FRAME ASSEMBLY, R.H.
1
B
3 5215665
BL-5000XL FRAME ASSEMBLY, L.H.
1
B
4 5600725
BL SERIES HANDLE WELDMENT
2
D
5 5905730
BL SERIES SAFETY BAR WARNING LABEL
2
-
6 5905932
BL-5000XL CAUTION LABEL
2
-
7 5905933
BL-5000XL WARNING INSTRUCTION LABEL
1
-
8 5905745
BL SERIES CYLINDER DECAL
2
-
9 5905750
BL SERIES CAUTION, KEEP HANDS CLEAR
2
-
10 5905765
BL SERIES DO NOT DRIVE ON LABEL
2
-
11 5905770
BL SERIES DANGER / WARNING LABEL
2
-
