3.2 Specialty Fan Wiring - Thermostat (RM ES-1100, RM ES-2200)
For wiring of a Specialty Series Fan with a Robert Shaw thermostat. This wiring method works with our RM models
but we do not recommend using it with a RM model fan that is being used as a whole house fan. (See 3.2A wiring
diagram)
1. Mount a junction box for your thermostat in the best location for thermostat readings which is usually on
the wall next to the light switch or garage door opener in the garage. Begin wiring the thermostat.
2. With a 3 wire Romex, tie the black wire to the black wire from the thermostat.
3. Tape the white common wire on both sides of the 3 wire Romex because we will be using this as our
switch leg.
4. Tie the red wire and the taped white wire together.
5. Attach the ground wire to the ground screw on the timer.
6. In the fan’s junction box, tie the black wire from the fan to the taped white wire.
7. Tie the two remaining black wires together. Then, tie the remaining copper wires together.

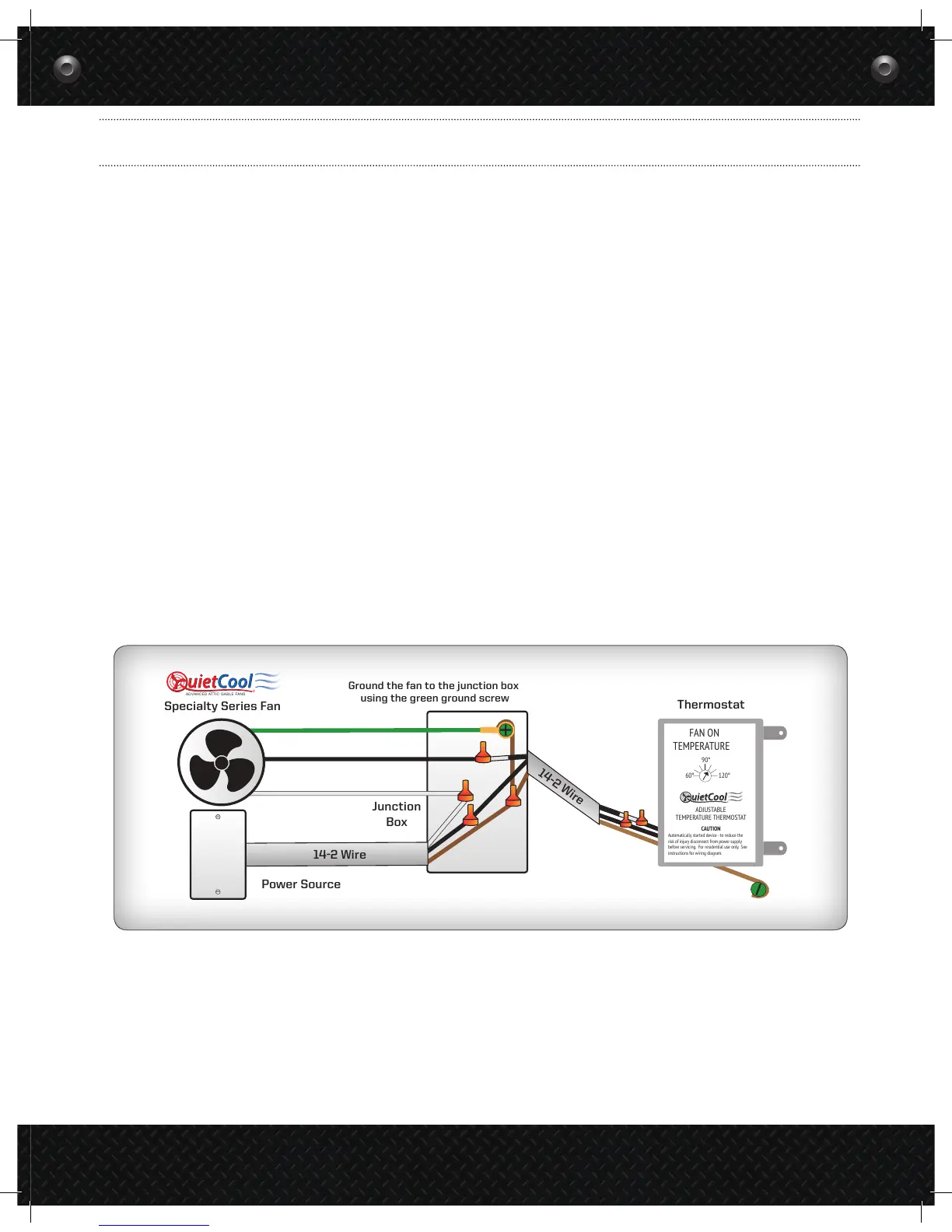

Figure 3.2A
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power Source
14-2 Wire
14-2 Wire
14-2 Wire
60°
Thermostat
FAN ON
TEMPERATURE
90°
120°
®
ADJUSTABLE
TEMPERATURE THERMOSTAT
CAUTION
Automatically started device - to reduce the
risk of injury disconnect from power supply
before servicing. For residential use only. See
instructions for wiring diagram.
60°
ADVANCED ATTIC GABLE FANS
®
Ground the fan to the junction box
using the green ground screw
Specialty Series Fan
Junction
Box
Power Source
14-2 Wire
14-2 Wire
14-2 Wire
60°
Thermostat
FAN ON
TEMPERATURE
90°
120°
®
ADJUSTABLE
TEMPERATURE THERMOSTAT
CAUTION
Automatically started device - to reduce the
risk of injury disconnect from power supply
before servicing. For residential use only. See
instructions for wiring diagram.
60°
ADVANCED ATTIC GABLE FANS
®
