4

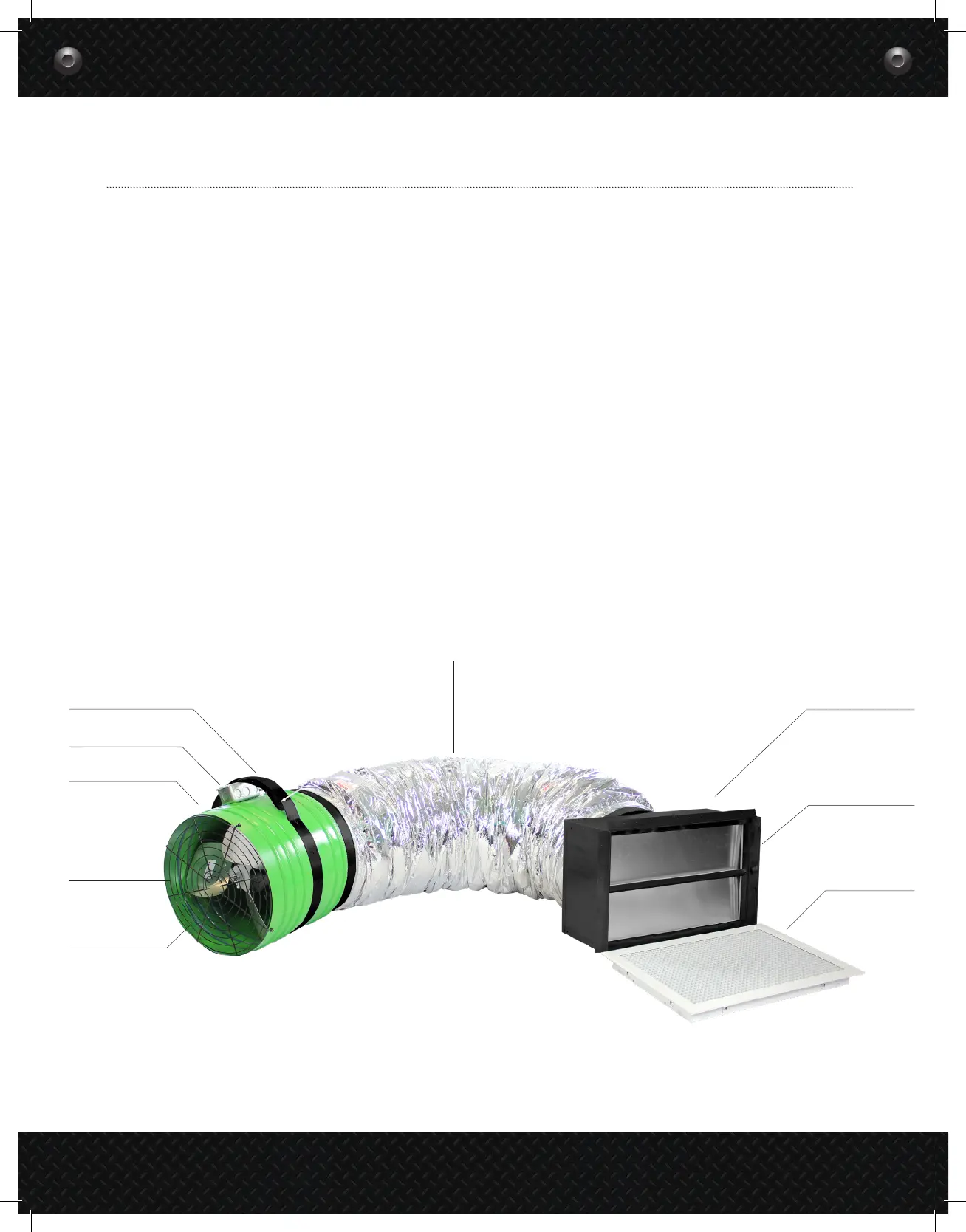

1-2 Product Diagram
A. Hanging Strap: This strap is used to hang the fan from the rafters in the attic.
B. Handy Box: This is where all of the wiring for the fan is contained.
C. Motor Housing: This is the cylinder that houses the motor. Comes in diameters of 14”, 16”, 18”, 20”, 22”, & 24”.
D. Fan Blade: Computer-balanced three-blade fan system.
E. Hand-guard: Added for safety to keep hands out of the motor housing.
F. Acoustical Duct: R-4.2 acoustically lined duct for quiet operation.
G. Damper Box: Mounts to the ceiling and houses the damper doors to keep the home insulated.
H. Damper Doors: R-5 lined damper doors to prevent air movement between the home and attic.
I. Ceiling Grille: Aesthetically pleasing egg-crate grille.
F. Acoustical Duct
G. Damper Box
H. Damper Doors
I. Ceiling Grille
A. Hanging Strap
B. Handy-box
C. Motor Housing
D. Fan Blade
E. Hand-guard
