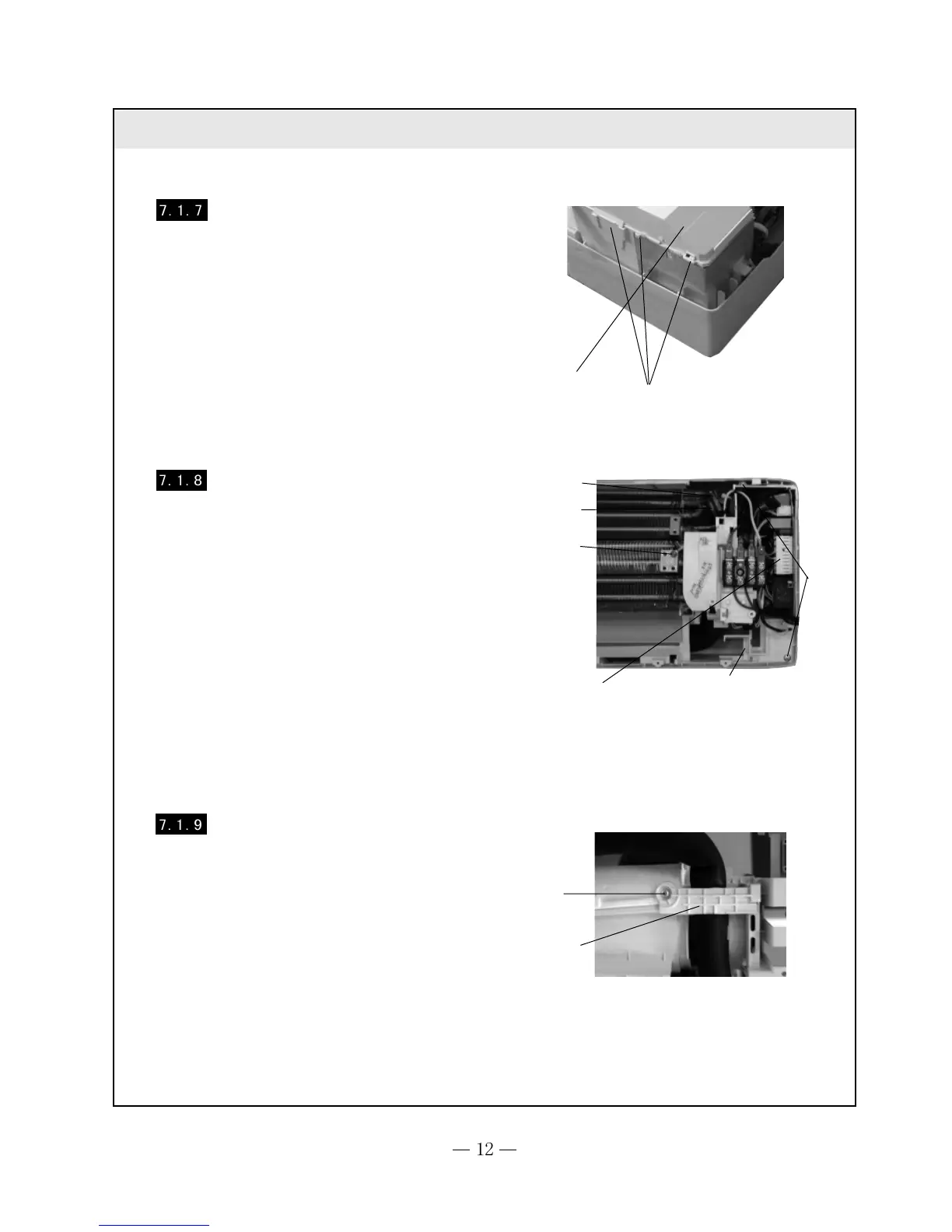

Operating Procedures / Photos
Loosen the three clasps, and pull upward to
remove the cover of the electric box.
Disassemble Cover of Electric Box
cover of the electric box
clasp
Disassemble Electric Box
Remove the grounding wire of the evaporator.
Take out the pipe temp. sensor.
Unplug the plugging connector of the indoor motor
at the electric box, use screwdriver to
unscrew the screw fixing the electric box,
loose the clasp and remove the electric box.
pipe temp. sensor
room sensor
grounding wire
plugging connector
clasp
screw
Disassemble Evaporator
rear pipe clamp
screw
Screw off one screw which fix the connection
board clamp.Take down the connection board
clamp.
Screw off 4 screws fixing the left and right side of
the evaporator, then elevate left side the evapora-
tor to remove it backward.
CAUTION:
When repair, Carefully take out the evaporator and
pay attention to protect the connecting pipe.
