Quincy Compressor QT Series - Page 21

QT/QTS Series Quincy Compressor
2022208700, September 2018 19

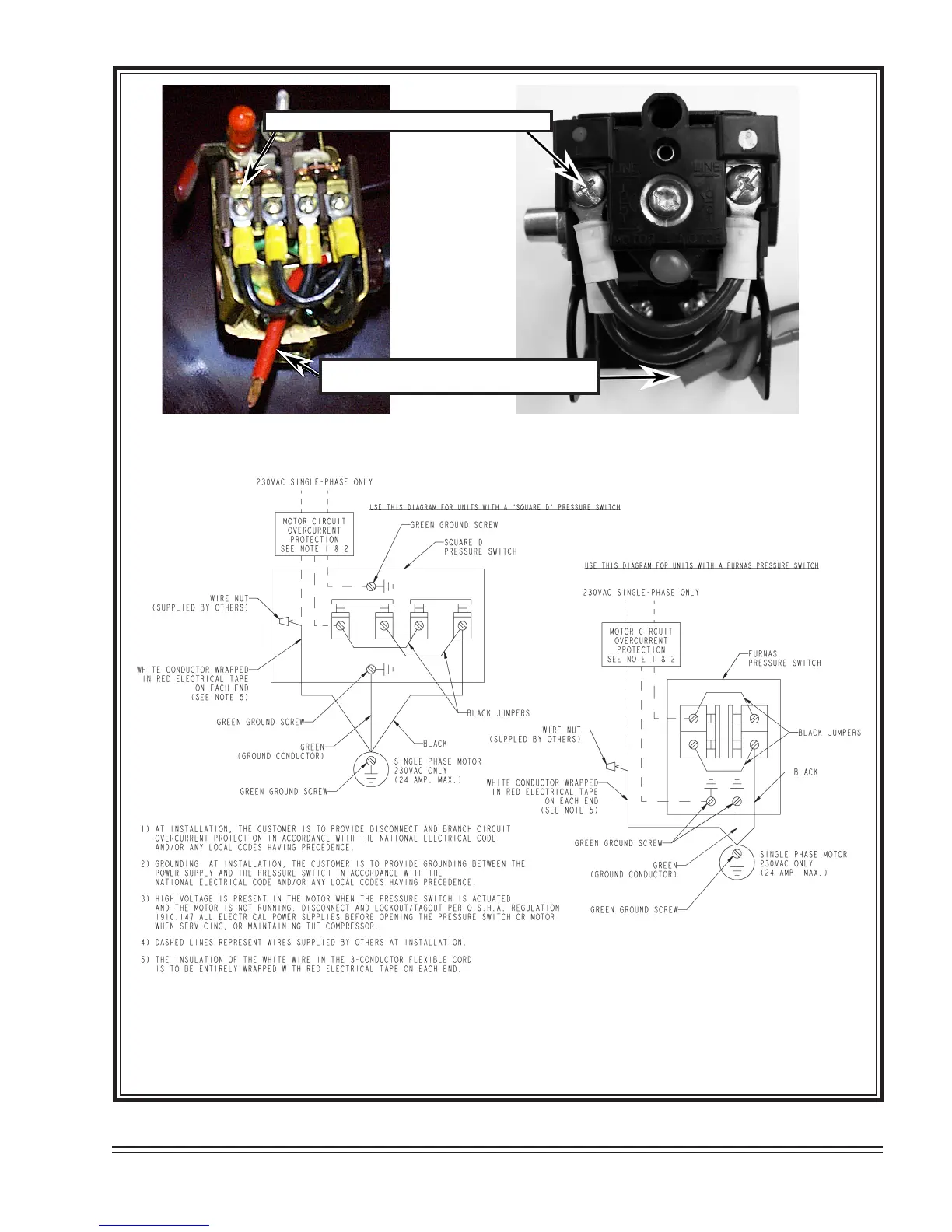

Fig. 3-10
Start / Stop - Pressure Switch / Motor
Wiring Schematic WP1753 (Rev. K)
Splice incoming power line connection
to this white wire (wrapped in red tape).
SQUARE D PRESSURE SWITCH
FURNAS / HUBBELL PRESSURE SWITCH
Start / Stop Control - Pressure Switch / Motor
Wiring Schematic WP1753 (Rev. K)
Connect incoming power line at this screw terminal.
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
the unit.
