QT/QTS Series Quincy Compressor
2022208700, September 2018 20

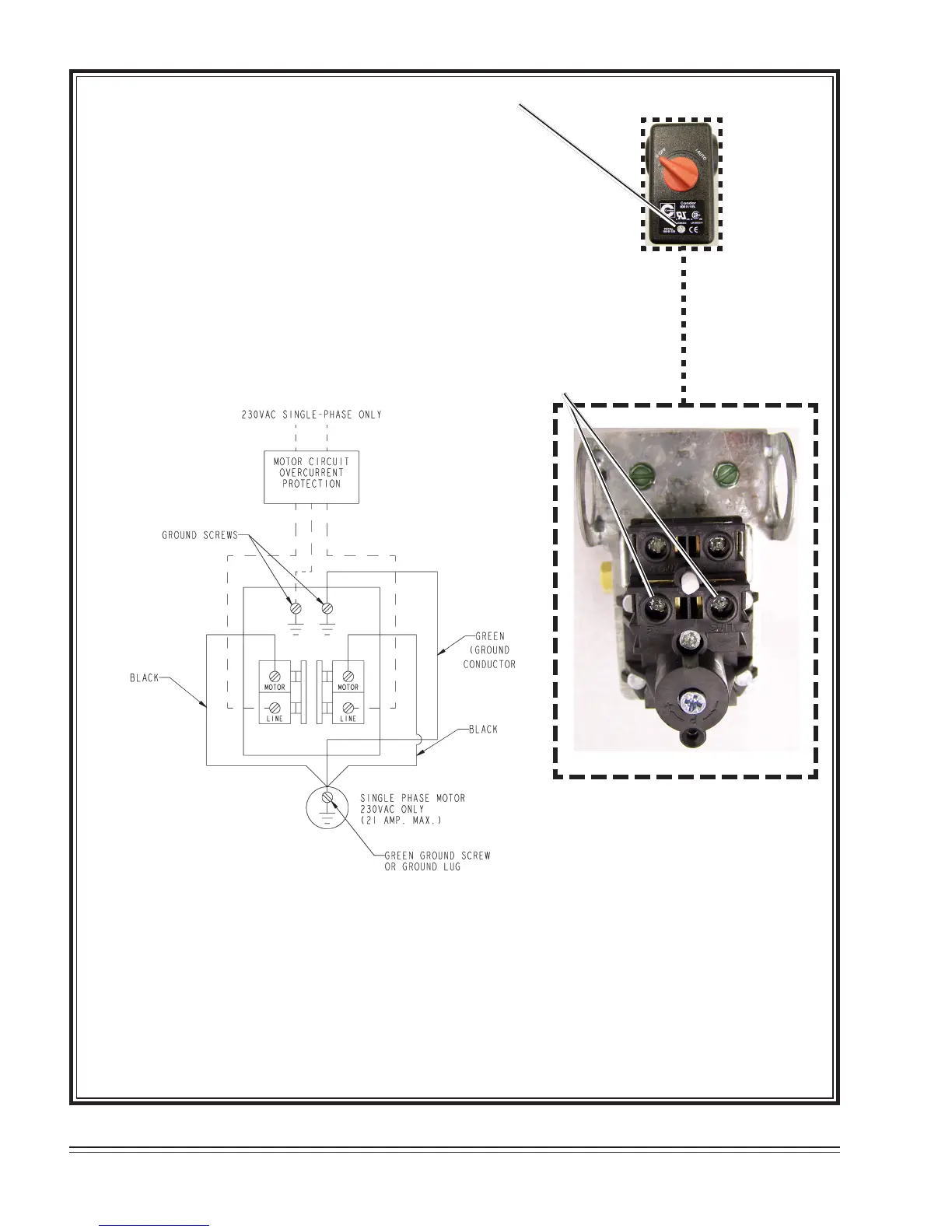

Fig. 3-11
Single Phase Condor Pressure Switch
Wired to a 3600 RPM Motor
Connection Diagram
Connect incoming power lines at
screw terminals labeled “LINE”.
Pressure Switch
To Remove the Cover:
1. Turn the switch handle to “OFF” position.
2. Remove small screws on front of the cover.
3. Pull the cover away from the pressure switch.
To Re-install the Cover:
1. Make sure the switch handle is in the “OFF”
position (as shown).
2. Carefully slide the cover over the pressure
switch.
DO NOT FORCE!
3. Re-install the small cover screws and tighten.
At Installation, the customer is to provide:
Disconnect and branch circuit overcurrent protection and
grounding between the power supply and the electrical
control enclosure in accordance with the National Electrical
Code (NEC), the Canadian Electrical Code (CEC) and / or
any local codes having precedence.
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
the unit.
